DV90

DV90 protecting screen (Option) Diagram

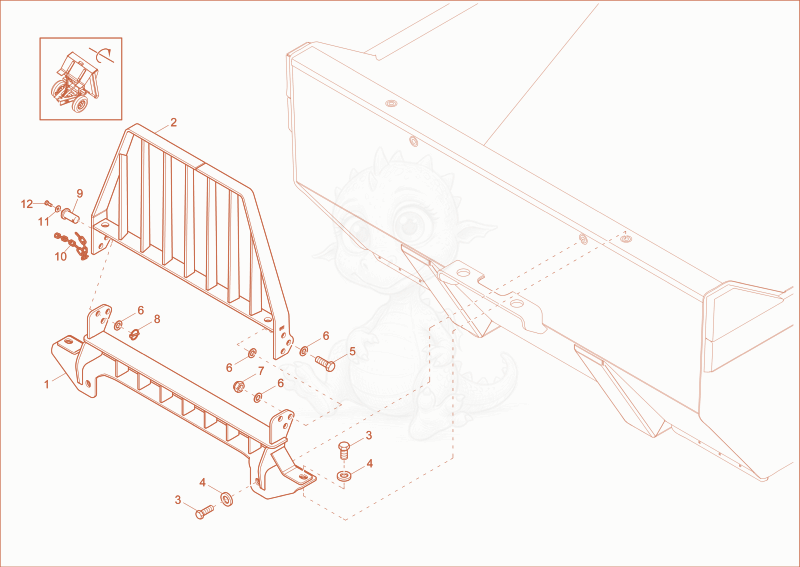

Exploded parts diagram of the protecting screen (Option) of a Wacker Neuson DV90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000408301Price
    Frontguard - 1000408301×1
  • 21000439854Price
    Frontguard - 1000439854×1
  • 31000085431Price
    HEX SCREW - 1000085431×4
  • 41000386967Price
    washer - 1000386967×4
  • 51000047872Not stocked
    hex screw×2
  • 61000015440Not stocked
    u-washer×8
  • 71000386460Price
    nut - 1000386460×2
  • 81000050585Not stocked
    cotter pin×2
  • 91000439633Not stocked
    pin×2
  • 101000097224Price
    CHAIN - 1000097224×1
  • 111000095343Price
    washer A 6,4 St A2C DIN9021 - 1000095343×2
  • 121000085382Price
    HEX SCREW - 1000085382×2
