DV90

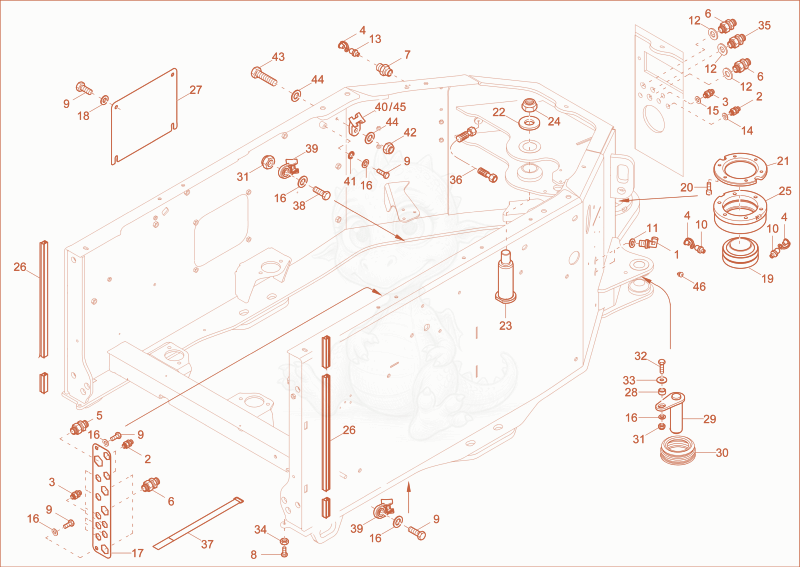

DV90 frame drive unit Diagram
- 11000028331Not stockedscrew joint×2
- SV10-L - 1000085076×3
- SV08-L - 1000085075×8
- 41000015480Not stockedcap grease nipple×3
- 51000015563Not stockedscrew joint×1
- 61000015550Not stockedlock screw connection×5
- GE06LMEDOMDA3C - 1000015501×1
- 6-piont screw M12x50 - 1000085438×2
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×9
- 101000015476Not stockedgrease nipple×1
- WASHER - 1000151414×2
- washer 23 - 1000082620×3
- grease nipple M10x1 - 1000082805×1
- WASHER - 1000021001×1
- 151000019126Not stockedu-washer×1
- washer 10,5 A2C DIN125 - 1000015432×9
- PLATE - 1000389512×1
- washer M10-DIN134 - 1000094974×4
- Pivotingbearing 1000224984×1
- cheese head screw - 1000085504×6
- cover - 1000383742×1
- 221000403569Not stockedwasher×1
- PIN - 1000403568×1
- 241000388900Not stockednut×1
- 251000438150Not stockedbearingseat×1
- RUBBER PROFILE - 1000097930×1.2
- cover - 1000402265×1
- WASHER - 1000154698×1
- pin - 1000383449×1
- bearing - 1000351711×1
- 311000357535Not stockedhexagon nut×5
- 6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×1
- Washer 10,5 St A2C - 1000092303×1
- HEXAGON NUT - 1000174482×2
- 351000021041Not stockedscrew joint×1
- 361000404347Not stockedHose×1
- 371000365805Not stockedlock strap×1
- 381000015364Not stockedhex screw×6
- 391000373433Not stockedsockets×8
- 401000378385Not stockedsockets×2
- Lock washer DIN6797 A10,5 - 1000095354×1
- 421000357534Not stockedhexagon nut×2
- 6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×2
- 441000015448Not stockedwasher×4
- sockets - 1000282736×2
- plug M8 - 1000288011×1
