DV90

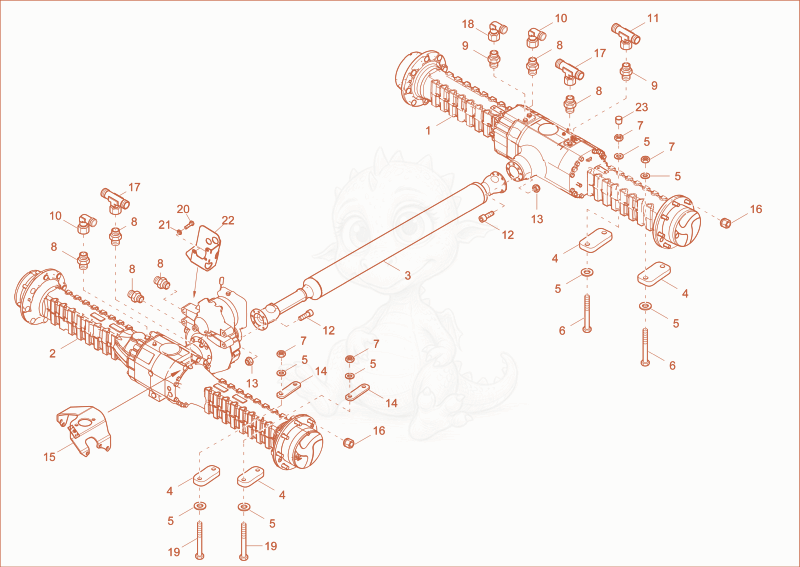

DV90 AXLE Diagram

Exploded parts diagram of the AXLE of a Wacker Neuson DV90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000376700Not stocked
    rear axle×1
  • 21000392734Not stocked
    front axle×1
  • 31000496789Not stocked
    cardan shaft×1
  • 41000324786Not stocked
    axle bracket×8
  • 51000106398Price
    NORTHLOCK DISC - 1000106398×32
  • 61000223995Price
    screw - 1000223995×8
  • 71000085579Price
    HEXAGON NUT - 1000085579×16
  • 81000108438Price
    GE08LM14X1,5OROMDA3C - 1000108438×6
  • 91000083062Price
    GEO12LM14X1,5OMDA3C - 1000083062×2
  • 101000000542Price
    EW08LOMD - 1000000542×2
  • 111000015519Price
    ET12LOMDA3C - 1000015519×1
  • 121000085502Price
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×16
  • 131000357535Not stocked
    hexagon nut×16
  • 141000328592Not stocked
    plate×4
  • 151000383945Not stocked
    mounting bracket×1
  • 161000345446Not stocked
    wheel nut×32
  • 171000015518Price
    ET08LOMDA3C - 1000015518×2
  • 181000000573Not stocked
    screw joint×1
  • 191000110250Price
    HEX SCREW - 1000110250×8
  • 201000085412Price
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×3
  • 211000015432Price
    washer 10,5 A2C DIN125 - 1000015432×3
  • 221000370566Not stocked
    protection plate×1
  • 231000421178Price
    plug - 1000421178×1
