DV90

DV90 WIRE HARNESS Rops Diagram

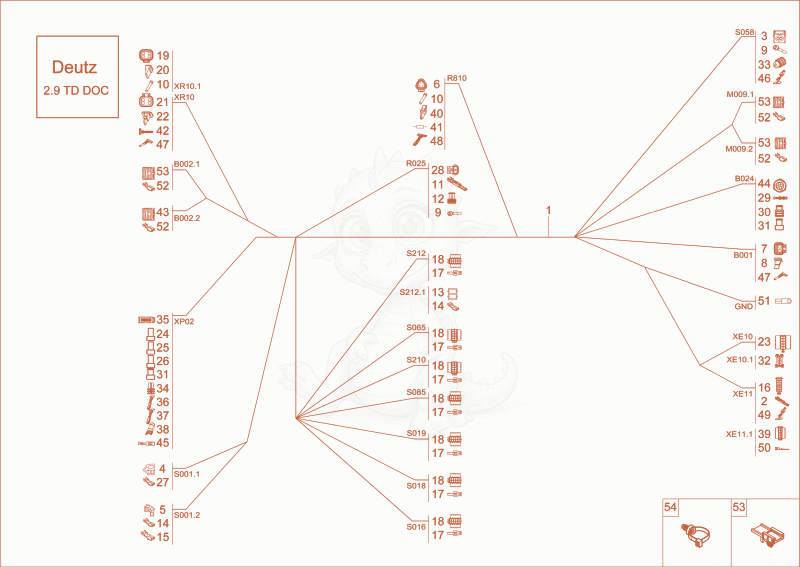

Exploded parts diagram of the WIRE HARNESS Rops of a Wacker Neuson DV90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000405439Not stocked
    main harness×1
  • 21000027179Not stocked
    timer contact×2
  • 31000027332Price
    housing - 1000027332×1
  • 41000027368Not stocked
    central plug×1
  • 51000027386Price
    PLUG - 1000027386×1
  • 61000027394Not stocked
    pin housing×1
  • 71000027438Not stocked
    bushing housing×1
  • 81000027442Not stocked
    wedge×1
  • 91000027466Not stocked
    protecting cap×2
  • 101000030446Not stocked
    plug×5
  • 111000051990Not stocked
    bushing contact×2
  • 121000052672Not stocked
    seal×2
  • 131000095336Not stocked
    plug sleeve housing×1
  • 141000095370Price
    plug sleeve - 1000095370×6
  • 151000095371Not stocked
    plug sleeve×2
  • 161000100971Price
    bushing housing - 1000100971×1
  • 171000103753Price
    Timer Contact - 1000103753×51
  • 181000103949Price
    bushing housing - 1000103949×7
  • 191000104284Price
    Pin housing - 1000104284×1
  • 201000104285Price
    wedge - 1000104285×1
  • 211000104286Price
    bushing housing - 1000104286×1
  • 221000104287Price
    wedge - 1000104287×1
  • 231000104431Price
    bushing housing - 1000104431×1
  • 241000104738Price
    seal - 1000104738×34
  • 251000104739Price
    seal - 1000104739×4
  • 261000104740Price
    lock plug - 1000104740×15
  • 271000107750Price
    plug sleeve - 1000107750×4
  • 281000110449Price
    plug bushing - 1000110449×1
  • 291000128771Price
    bushing contact - 1000128771×3
  • 301000128772Price
    Seal - 1000128772×3
  • 311000128773Price
    Plug - 1000128773×3
  • 321000170627Not stocked
    pin housing×1
  • 331000246747Price
    seal - 1000246747×2
  • 341000260162Price
    seal - 1000260162×7
  • 351000260163Price
    plug sleeve housing - 1000260163×1
  • 361000260164Price
    Tube - 1000260164×34
  • 371000260165Not stocked
    bushing contact×7
  • 381000261548Price
    cover cap - 1000261548×1
  • 391000271156Price
    pin housing - 1000271156×1
  • 401000279149Price
    locking - 1000279149×1
  • 411000289850Price
    resistor - 1000289850×1
  • 421000309284Not stocked
    bushing contact×3
  • 431000383151Not stocked
    bushing housing×4
  • 441000322614Not stocked
    plug bushing×1
  • 451000338907Not stocked
    Tube×4
  • 461000349535Not stocked
    sockets×2
  • 471000359612Not stocked
    plug connection×3
  • 481000362407Not stocked
    pin contact×2
  • 491000362527Not stocked
    bushing contact×6
  • 501000364528Not stocked
    pin contact×2
  • 511000365194Price
    cable lug - 1000365194×1
  • 521000383149Not stocked
    bushing contact×4
  • 531000293439Not stocked
    clip×1
  • 541000322839Not stocked
    fixing bracket×1
