Excavator 8003

8003 TUBE PILOT PRESSURE Diagram

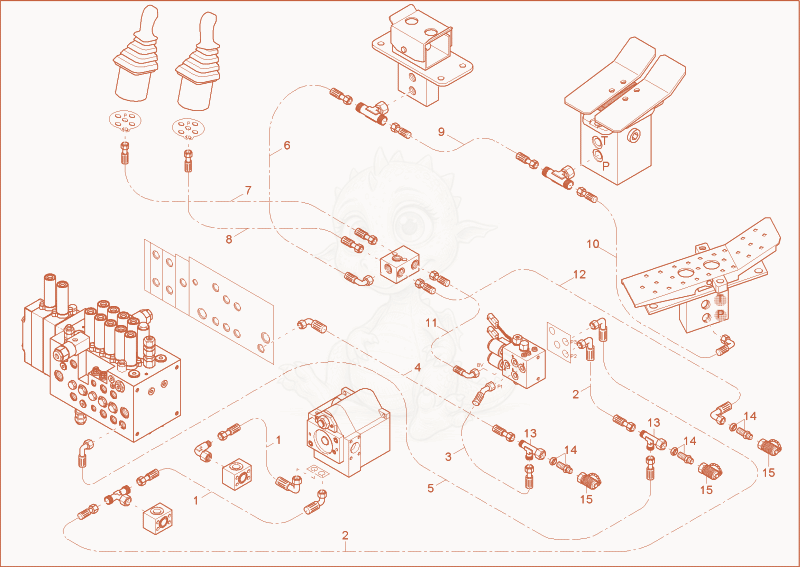

Exploded parts diagram of the TUBE PILOT PRESSURE of a Wacker Neuson 8003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000357082Not stocked
    Hose×2
  • 21000357286Not stocked
    Hose×2
  • 31000357068Not stocked
    Hose×1
  • 41000355115Not stocked
    Hose×1
  • 51000358747Not stocked
    Hose×1
  • 61000076545Price
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2000 0 - 1000076545×1
  • 71000076391Price
    SLHYDR 1SCP6,0PN8 0 PN8 0 L1900 0 - 1000076391×1
  • 81000111742Price
    SLHYDR 1SCP6,0PN8 0 PN8 0 L2100 0 - 1000111742×1
  • 91000076345Price
    SLHYDR 1SCP6,0PN8 0 PN8 0 L300,0 0 - 1000076345×1
  • 101000355117Not stocked
    Hose×1
  • 111000127471Price
    SLHYDR 1SCP8,0PN10 90 PN10 0 L1400 - 1000127471×1
  • 121000076393Price
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1400 0 - 1000076393×1
  • 131000015515Not stocked
    screw joint×2
  • 141000085075Price
    SV08-L - 1000085075×3
  • 151000000575Not stocked
    minimess point×3
