Excavator 8003

8003 HYDRAULIC PUMP INSTALLATION Diagram

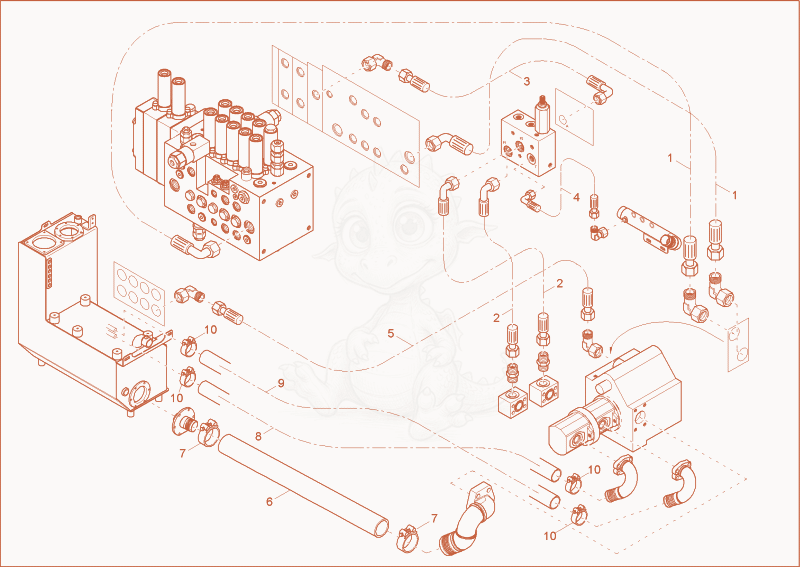

Exploded parts diagram of the HYDRAULIC PUMP INSTALLATION of a Wacker Neuson 8003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000190017Not stocked
    Hose×2
  • 21000113852Not stocked
    Hose×1
  • 31000113851Not stocked
    Hose×1
  • 41000114557Price
    SLHYDR ST1 13 PN15 90 PN15 0 L1800 0 - 1000114557×1
  • 51000077290Price
    SLHYDR 1SC 13 PN15 90 PN15 0 L1400 0 - 1000077290×1
  • 61000117035Price
    SCSAUG L280,0 - 1000117035×1
  • 71000241039Price
    clamp - 1000241039×2
  • 81000127506Price
    SCSAUG L900,0 - 1000127506×1
  • 91000127505Price
    SCSAUG L800,0 - 1000127505×1
  • 101000083269Price
    HOSE CLAMP - 1000083269×4
  • 111000113852Not stocked
    Hose×1
  • 121000142581Not stocked
    Hose×1
