Excavator 8003

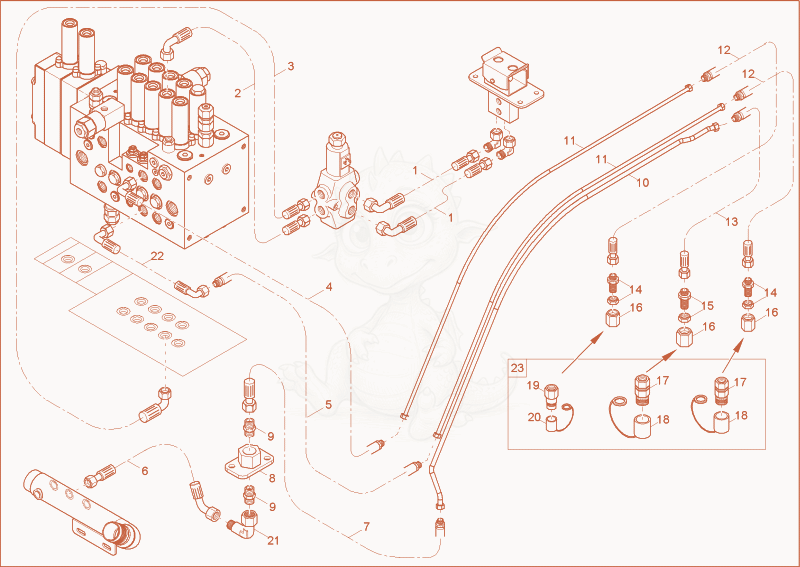

8003 AUXILIARY HYDRAULICS OPERATION Diagram
- SLHYDR 1SCP6,0PN8 0 PN8 90 L800,0 0 - 1000076538×2
- SLHYDR 1SCP6,0PN8 0 PN8 90 L2900 0 - 1000076665×1
- SLHYDR 1SCP6,0PN8 0 PN8 90 L2500 0 - 1000076335×1
- 41000142738Not stockedHose×1
- 51000142731Not stockedHose×1
- 61000126032Not stockedHose×1
- 71000128882Not stockedHose×1
- bushing tube - 1000126231×1
- 91000015496Not stockedscrew joint×2
- Pipeline 1000116143×1
- Pipeline 1000116142×2
- 121000127470Not stockedHose×2
- 131000126040Not stockedHose×1
- 141000020799Not stockedlock screw connection×2
- SCHOTTVERSCHRAUBUNG - 1000129678×1
- locking cap - 1000082960×3
- 171000109375Not stockedquick lock coupling×2
- dust cap - 1000109419×2
- 191000109374Not stockedquick lock coupling×1
- dust cap - 1000109418×1
- EW28LOMDA3C - 1000085091×1
- SLHYDR 4SP 19 PP20 90 PP20 90 L260,0 0 - 1000142735×1
- 231000158389Not stockedretrofit kit coupling×1
