Excavator 8003

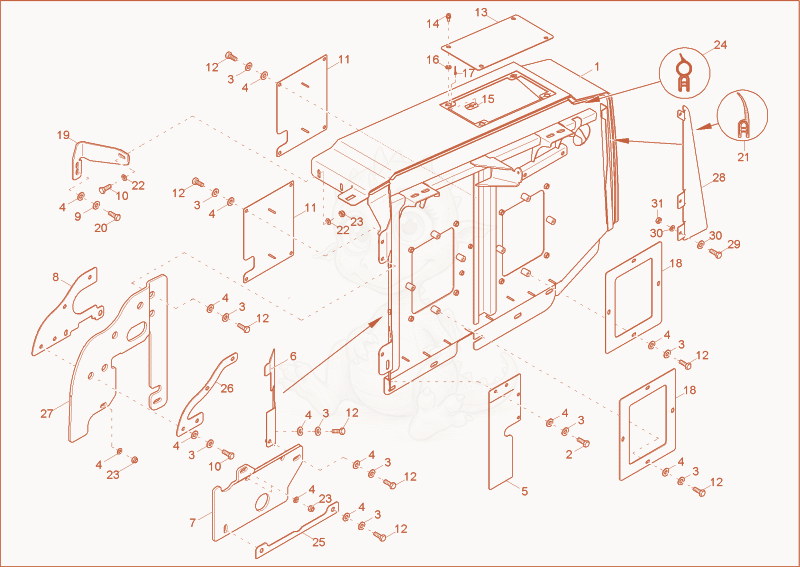

8003 seperating plate Diagram

Exploded parts diagram of the seperating plate of a Wacker Neuson 8003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000150219Not stocked
    seperating plate×1
  • 21000015348Not stocked
    hex screw×7
  • 31000015438Not stocked
    lock washer×24
  • 41000015432Price
    washer 10,5 A2C DIN125 - 1000015432×25
  • 51000128359Price
    COVER - 1000128359×1
  • 61000130178Not stocked
    rejection plate×1
  • 71000130194Price
    PARTITIONING RUBBER - 1000130194×1
  • 81000153730Price
    FASTEN PLATE - 1000153730×5
  • 91000015437Not stocked
    lock washer×7
  • 101000015364Not stocked
    hex screw×5
  • 111000125184Price
    COVER - 1000125184×2
  • 121000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×17
  • 131000125626Not stocked
    sep.plate cover×1
  • 141000082703Price
    hexagon nut - 1000082703×4
  • 151000082704Price
    stop cam CAMLOC - 1000082704×4
  • 161000082705Price
    Camloc washer - 1000082705×4
  • 171000082698Price
    blind rivet A3x12 - 1000082698×4
  • 181000127511Price
    FASTENING FRAME - 1000127511×2
  • 191000129638Not stocked
    support angle×1
  • 201000013009Not stocked
    hex screw×2
  • 211000097252Price
    RUBBER PROFILE - 1000097252×0.55
  • 221000092303Price
    Washer 10,5 St A2C - 1000092303×2
  • 231000015408Price
    nut M10-8 A2C-DIN985 - 1000015408×1
  • 241000098164Price
    rubber profile 1,5-3mm - 1000098164×1
  • 251000128353Price
    FASTEN PLATE - 1000128353×1
  • 261000136213Price
    FASTENING FRAME - 1000136213×1
  • 271000153762Price
    PARTITIONING RUBBER - 1000153762×1
  • 281000167591Not stocked
    air guide plate×1
  • 291000015343Not stocked
    hex screw×3
  • 301000015431Not stocked
    washer×6
  • 311000015416Price
    DIN985-M8-8-A2C - 1000015416×3
