Excavator 8003

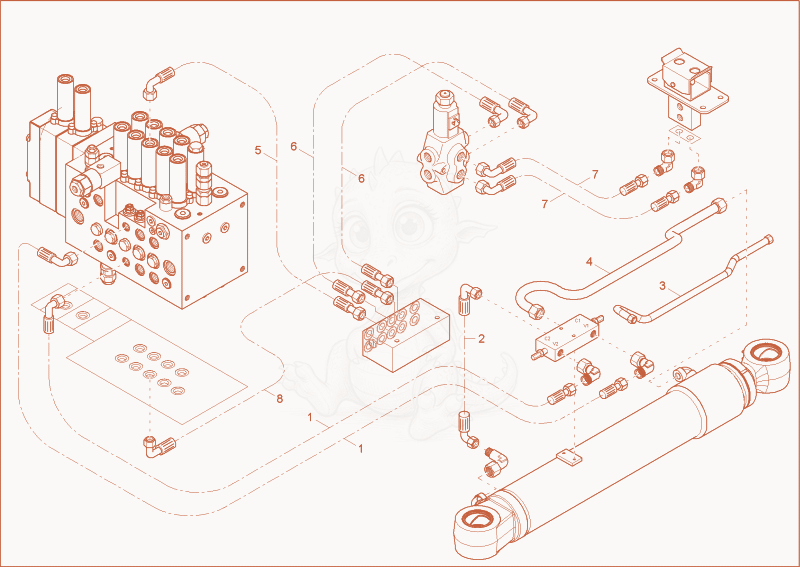

8003 SWIVEL CYLINDER OPERATION Diagram

Exploded parts diagram of the SWIVEL CYLINDER OPERATION of a Wacker Neuson 8003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000077455Not stocked
    Hose×2
  • 21000126027Price
    SLHYDR 4SP 13 PP16 90 PP16 90 L340,0 0 - 1000126027×1
  • 31000125578Not stocked
    hydraulic pipe×1
  • 41000135993Price
    cylinder pipes assy. - 1000135993×1
  • 51000013113Not stocked
    Hose×1
  • 61000117920Not stocked
    Hose×2
  • 71000076538Price
    SLHYDR 1SCP6,0PN8 0 PN8 90 L800,0 0 - 1000076538×2
  • 81000077951Price
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2300 0 - 1000077951×1
