Excavator 8003

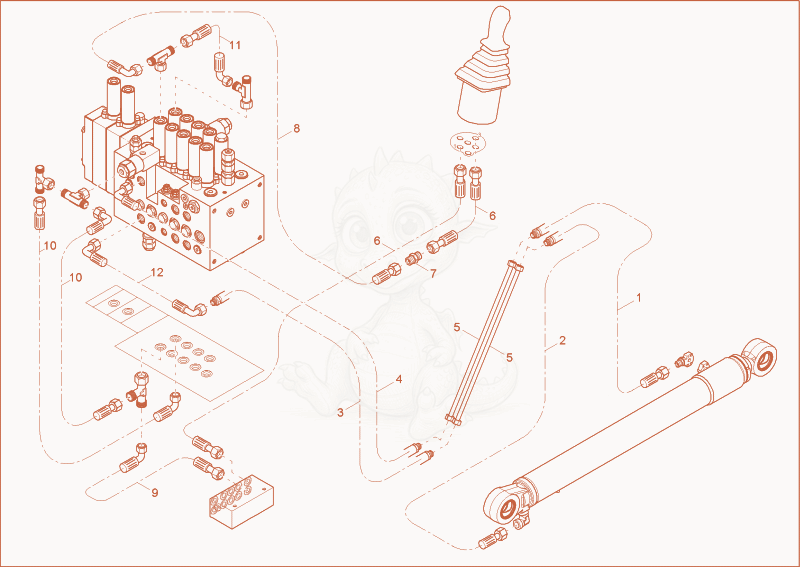

8003 DIPPER ARM OPERATION Diagram

Exploded parts diagram of the DIPPER ARM OPERATION of a Wacker Neuson 8003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000126038Not stocked
    Hose×1
  • 21000126037Not stocked
    Hose×1
  • 31000142732Not stocked
    Hose×1
  • 41000142736Not stocked
    Hose×1
  • 51000115106Price
    Pipeline 1000115106×2
  • 61000076375Price
    SLHYDR 1SCP6,0PN8 0 PN8 0 L1800 0 - 1000076375×2
  • 71000015545Price
    G08LA3CX - 1000015545×1
  • 81000076667Not stocked
    Hose×1
  • 91000112772Not stocked
    Hose×1
  • 101000076661Not stocked
    Hose×2
  • 111000076405Not stocked
    Hose×1
  • 121000142733Not stocked
    Hose×1
