Excavator 8003

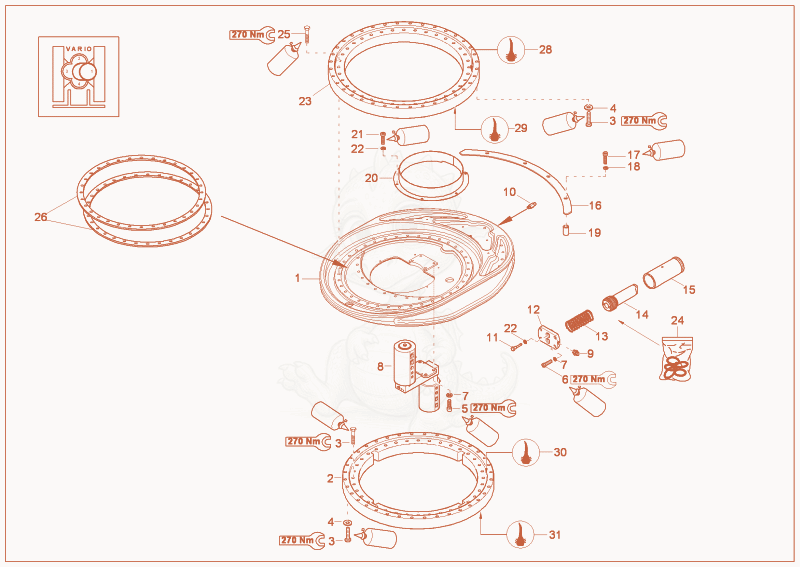

8003 PLATE (OPTION VARIO) Diagram

Exploded parts diagram of the PLATE (OPTION VARIO) of a Wacker Neuson 8003, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000075417Not stocked
    excenter plate×1
  • 21000075419Not stocked
    slewing ring×1
  • 31000082284Price
    hex screw - 1000082284×64
  • 41000020820Price
    WASHER - 1000020820×62
  • 51000085518Price
    socket head screw M16x45-10.9 DACRO DIN9 - 1000085518×4
  • 61000015383Not stocked
    cheese head screw×6
  • 71000015451Not stocked
    northlock disc×8
  • 81000076024Not stocked
    rotary junction×1
  • 91000015490Not stocked
    screw joint×1
  • 101000062913Not stocked
    extension×1
  • 111000075424Price
    TWIST SCREW - 1000075424×2
  • 121000075423Price
    Flange 1000075423×1
  • 131000075491Price
    PRESSURE SPRING - 1000075491×1
  • 141000075421Not stocked
    locking pin×1
  • 151000075422Not stocked
    bushing×1
  • 161000075428Price
    Bracket 1000075428×1
  • 171000085480Price
    cheese head screw - 1000085480×4
  • 181000082609Price
    lock washer - 1000082609×4
  • 191000075432Price
    DISTANCE PIECE - 1000075432×4
  • 201000125816Price
    Greasering 1000125816×1
  • 211000085418Not stocked
    hex screw×6
  • 221000095220Price
    screw seal - 1000095220×2
  • 231000391491Not stocked
    slewing ring×1
  • 241000112926Price
    SEAL KIT EXCENTER - 1000112926×1
  • 251000125685Not stocked
    hex screw×32
  • 261000125814Not stocked
    shim×2
  • 271000130667Price
    HEX SCREW - 1000130667×30
  • 281000097224Price
    CHAIN - 1000097224×2.8
  • 291000097224Price
    CHAIN - 1000097224×2.8
  • 301000097224Price
    CHAIN - 1000097224×2.8
  • 311000097224Price
    CHAIN - 1000097224×2.8
