Excavator 8003
8003 Parts Diagrams

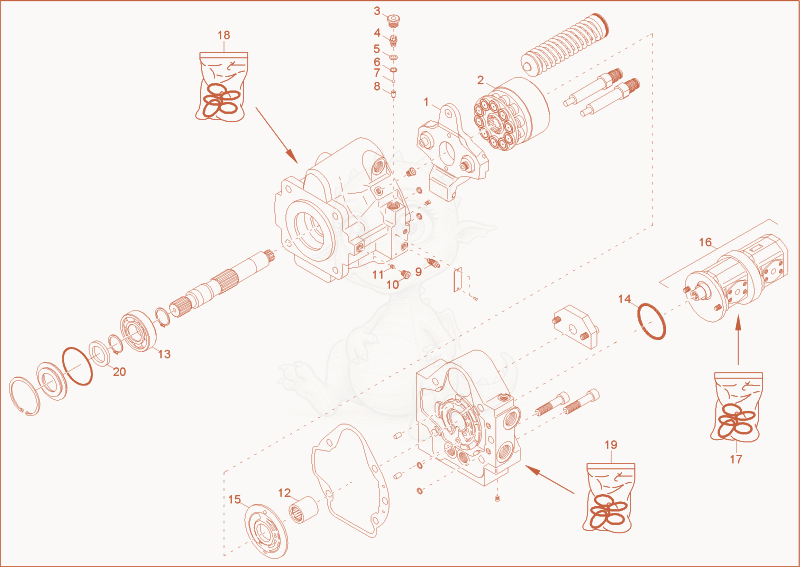

199 factory assemblies. Open one to see the drawing, every part number on it and what we charge for it.
service kit
overview accessory kits
diesel engine
diesel engine
Engine bedding
CYLINDER HEAD, VALVE COVER
cylinder block
seal crankshaft
oil sump
CAMSHAFT
crankshaft, piston
lub oil system
cooling system
fuel injection equipment
air cleaner
suction manifold
exhaust
fuel tank
fuel system
DIESEL TANK FILLING PUMP (OPTION)
speed actuating
SPEED CONTROL (OPTION)
HYDRAULIC PUMP DRIVE
combicooler
combicooler
combicooler

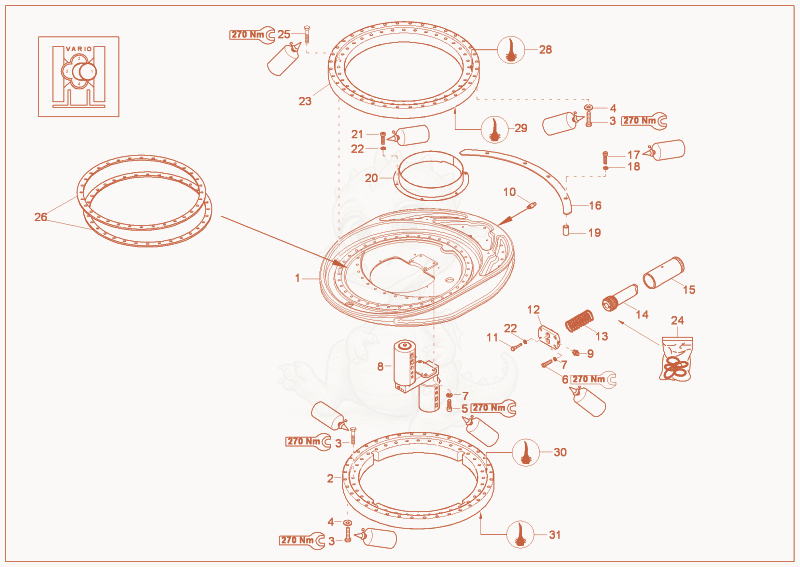

TURNTABLE DRIVE UNIT INSTALLATION
swivel drive
TRAVELLING GEAR INSTALLATION
TRAVEL MOTOR INSTALLATION (OPTION VARIO)
TRAVELLING GEAR (MAG44)
TRAVELLING GEAR (MAG44)
TRAVELLING GEAR (MAG50)
hydraulic tank
hydraulic pump
HYDRAULIK PUMP - DISASSEMBLE
CONTROL VALVE 1
CONTROL VALVE 2
SECTION (OPTION 3.HYDRAULIC CIRCUIT)
SECTION (3.HYDR. CIRCUIT+LUFFING BOOM)
SECTION (OPTION LUFFING BOOM)
turning joint
ROTARY TRANSMISSION LEADTHROUGH (OPTION)
controloil unit
VALVE BLOCK (OPTION VARIO)
CUT-OFF VALVE
CUT-OFF VALVE
joystick
joystick
driving valve
PILOT OPPERATED CHECK VALVES
PILOT OPPERATED CHECK VALVES (OPTION)
blade valve

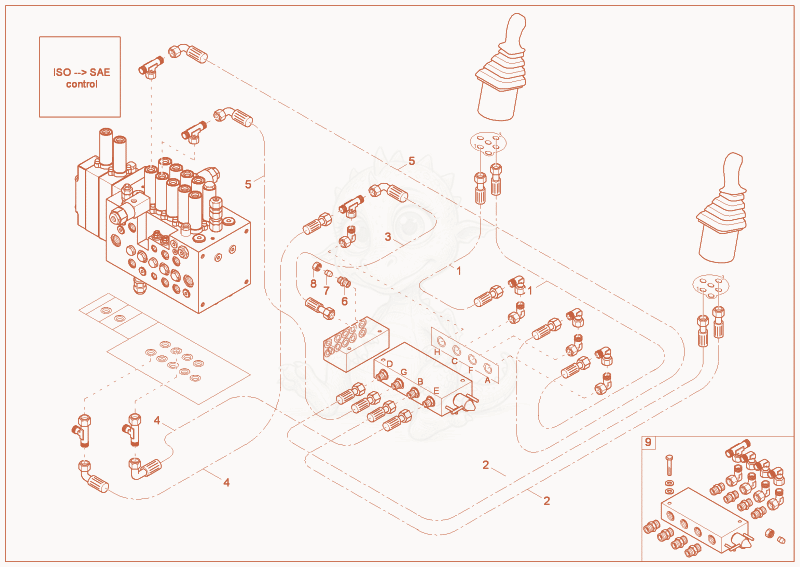

change over valve
4/3 VALVE (OPTIONAL)
PROPORTIONAL VALVE (OPTION)
8/2 VALVE (OPTION)
VALVE BLOCK
distributor block
DISTRIBUTION BLOCK (OPTION)
manifold
manifold

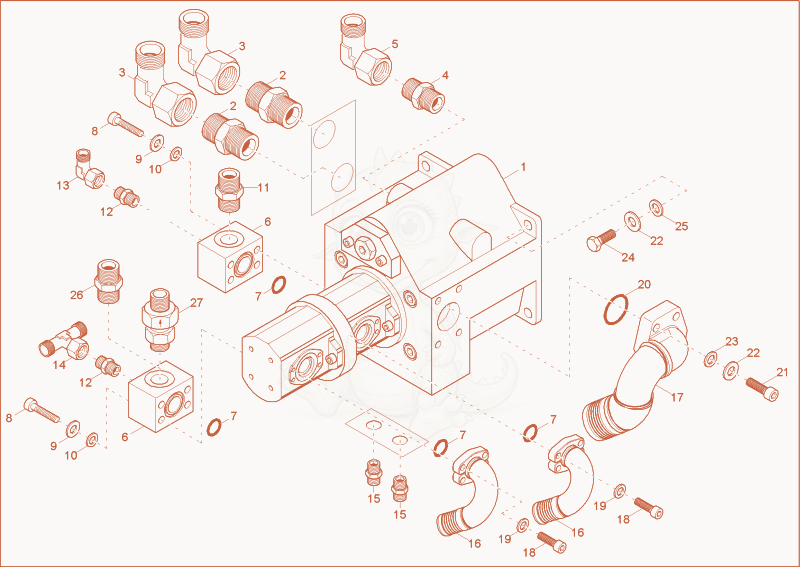

HYDRAULIC PUMP INSTALLATION

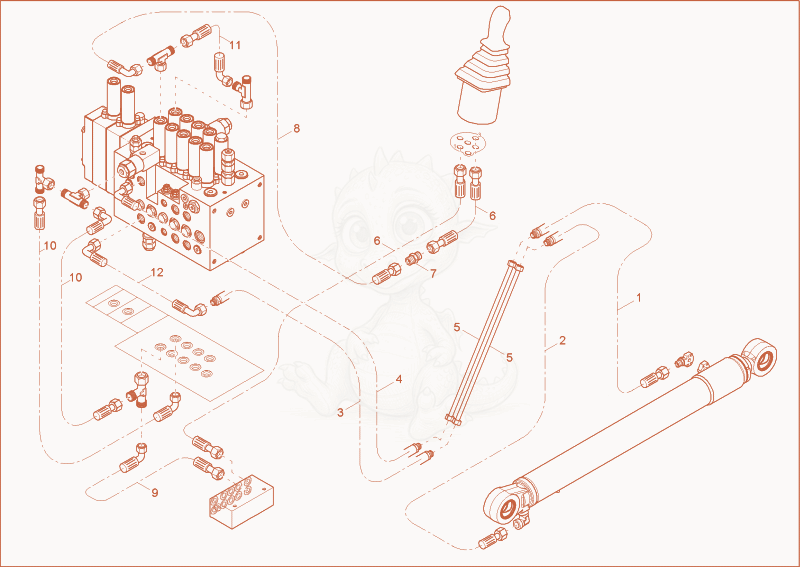

LIFTING BOOM OPERATION
boom cylinder
boom cylinder
DIPPER ARM OPERATION
dipper arm cylinder
DIPPER ARM CYLINDER (LUFFING BOOM)
BUCKET OPERATION
BUCKET OPERATION (OPTION)
bucket cylinder
bucket cylinder
LUFFING BOOM CYLINDER OPERATION
LUFFING BOOM CYLINDER OPERATION
buckle cylinder
INST. LUFFING BOOM
INST. LUFFING BOOM+3. HYDRAULIC CIRCUIT
INST. LUFFING BOOM+3. HYDRAULIC CIRCUIT
SWIVEL CYLINDER OPERATION
boom offset cylinder
DOZER BLADE OPERATION
DOZER BLADE OPERATION (OPTION VARIO)
blade cylinder
AUXILIARY HYDRAULICS OPERATION
AUXILIARY HYDRAULICS OPERATION
ELECTRICAL AUXILIARY FUNCTION (OPTION)
PROPORTIONAL CONTROL ADD.HYDR. (OPTION)
GRAB EQUIPMENT (OPTION)
GRAB EQUIPMENT DIPPER ARM LONG (OPTION)
GRAB EQUIPMENT (OPTION)
GRAB EQUIPMENT TRIPLE BOOM (OPTION)
8/2 VALVE INSTALLATION (OPTION)
LOCK INSTALLATION (OPTION VARIO)
TUBE PILOT PRESSURE
TANK LINES
3. HYDRAULIC CIRCUIT (OPTION)
3. HYDRAULIC CIRCUIT (OPTION)
3. HYDRAULIC CIRCUIT (OPTION)

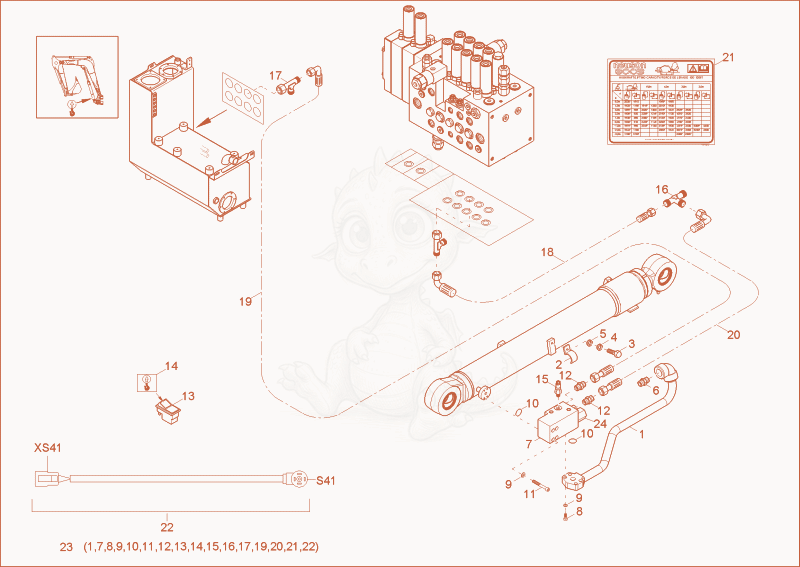

STALLING LOAD - WARNING DEVICE G(OPTION)
STALLING LOAD - WARNING DEVICE F OPTION
STALLING LOAD - WARN. DEVICE F (OPTION
battery
instrument panel
RADIO (OPTION)
RELAY BOX
horn
working light
CABIN HEADLIGHT (OPTION)
CABIN HEADLIGHT (OPTION)
CABIN HEADLIGHT (OPTION)
CABIN HEADLIGHT (OPTION)
wire harness chassis, engine
wire harness chassis, engine
wiring harness controloil unit
wiring harness armrest
WIRE HARNESS SWITCH
wiring harness light
wiring harness roof
WIRE HARNESS SPEED CONTROL (OPTION)
WIRE HARNESS (OPTION VARIO)
WIRE HARNESS PROPORTIONAL CONTROL OPTION
THEFT PROTECTION (OPTION)
rubber track
STEEL CHAIN (OPTION)
STEEL CHAIN option
hybrid track (Option)

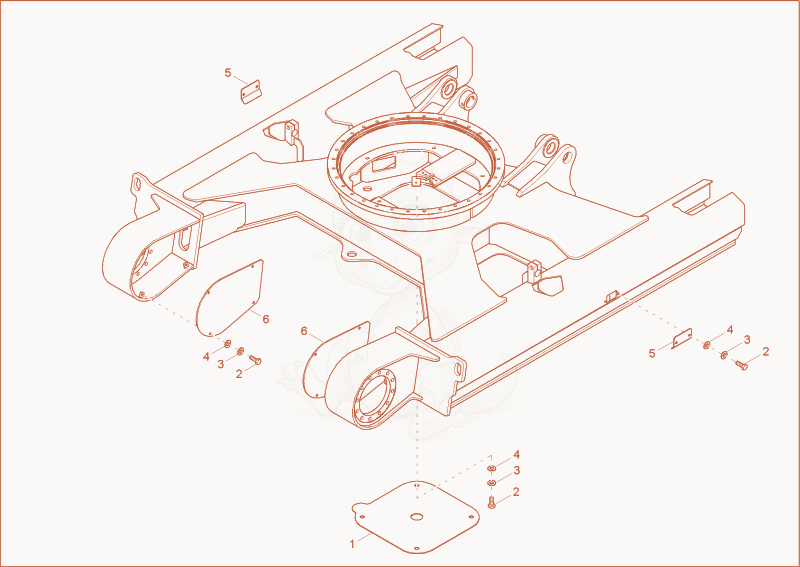

undercarriage
TRACKLAYING GEAR (OPTION STEEL CHAIN)
track tensioner complete
track tensioner complete
TRACK TENSIONER (OPTION STEEL CHAIN)
TRACK TENSIONER (OPTION STEEL CHAIN)
JOCKEY WHEEL 1
JOCKEY WHEEL 2
support roller
support roller
dozer blade
chassis
lubrication
bumper
bumper
AUXILIARY WEIGHT (OPTION)
PLATE (OPTION VARIO)

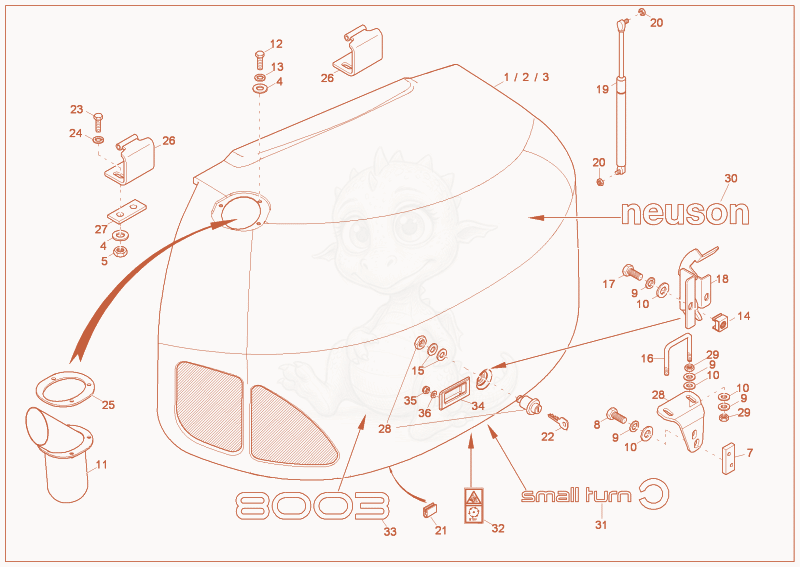

engine hood
engine hood
engine hood
tank cover
seperating plate
seperating plate

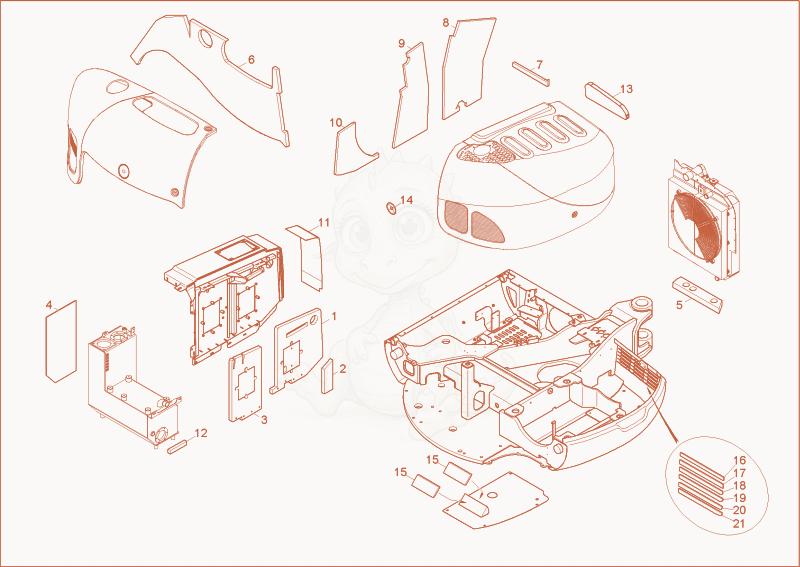

insulating mat
insulating mat
chassis cover
cover undercarriage
lift arm
LUFFING BOOM (OPTION)
dipperstick
dipperstick
DIPPER ARM LONG (OPTION)
DIPPER ARM LONG (OPTION)
CUSHION CABIN
CABIN FRAME 1
CABIN FRAME 1
CABIN FRAME 2
CABIN FRAME 2
door
front window
front window
CABIN WINDOWS
COVERING
ROTATING BEACON (OPTION)
ROTATING BEACON (OPTION)
MIRROR (OPTION)
drivers seat
Air cushioned seat (Option)
slip-cover
heating
heating
AIR-CONDITIONING PLANT (OPTION)
ADDITIONAL PARTS OPTION AIR-CONDITIONING
ADDITIONAL PARTS OPTION AIR-CONDITIONING
AIR-CONDITIONING PLANT INST. (OPTION)
AIR-CONDITIONING PLANT INST. (OPTION)
sticker
tools
QUICK-HITCH COUPLER
bucket
bucket QHS
ditching bucket
ditching bucket QHS
tilting bucket
BUCKET OFFSET (DIPPER STICK LONG)
tilting bucket
tilting bucket QHS
BUCKET OFFSET (DIPPER STICK LONG)
tilting bucket QHS
Kit hydr. breaker
Kit hydr. breaker
