280 Engine block Diagram

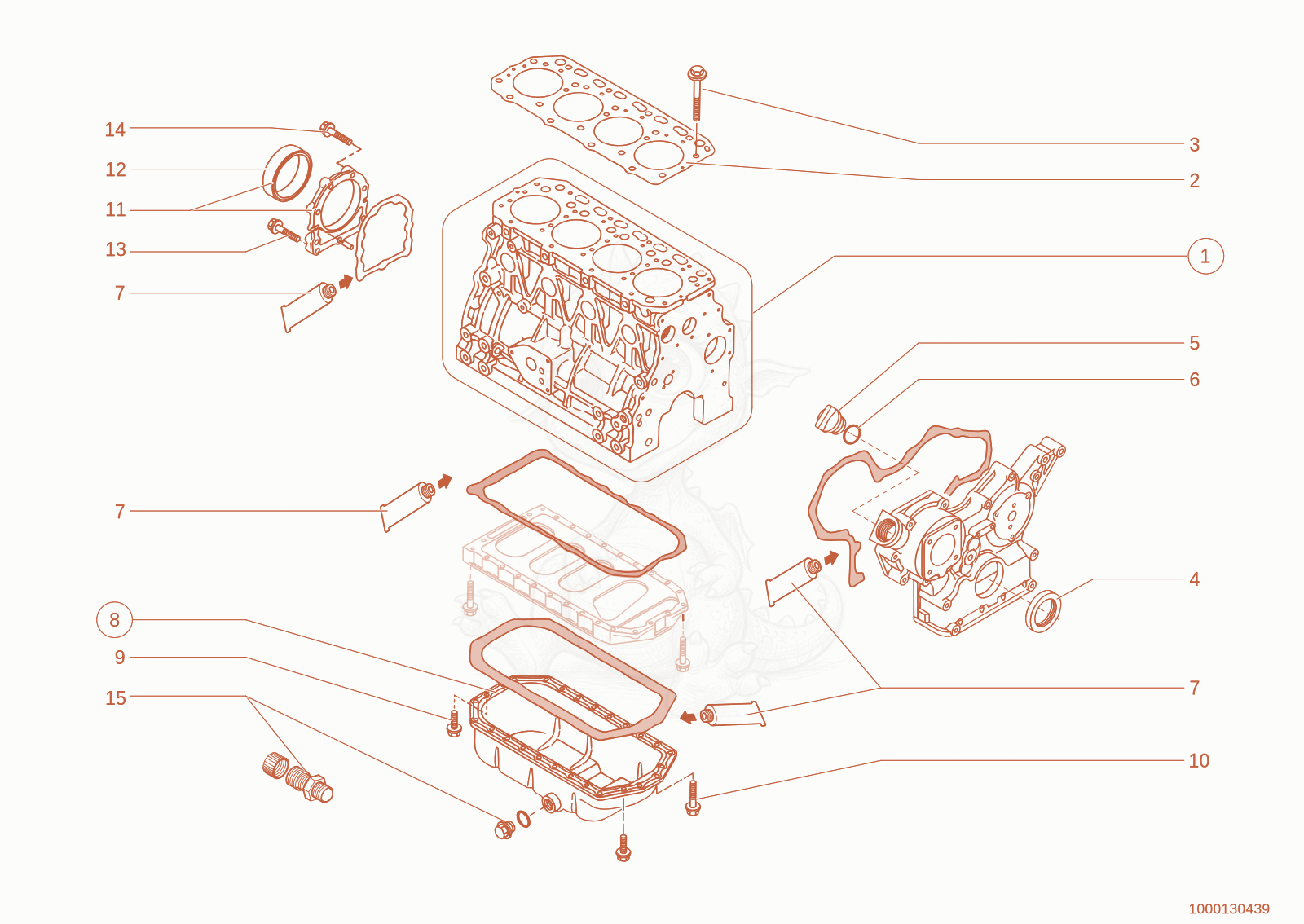

Exploded parts diagram of the Engine block of a Wacker Neuson 280, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000130222Not stocked
Engine block×1
21000005137Not stocked
cylinder head gasket×1
31000085178Price
cylinderhead screw - 1000085178×18
41000020330Not stocked
shaft seal×1
51000002921Not stocked
oil filler cap×1
61000035757Not stocked
seal ring×1
71000035794Not stocked
sealing compound×1
81000073586Price
Oilsump 1000073586×1
91000085176Price
HEX SCREW - 1000085176×4
101000035758Not stocked
screw×24
111000098725Price
COVER - 1000098725×1
121000107746Price
SHAFT SEAL - 1000107746×1
131000085194Price
SCREW - 1000085194×3
141000098616Price
SCREW - 1000098616×6
151000034616Not stocked
drain coupling×1
