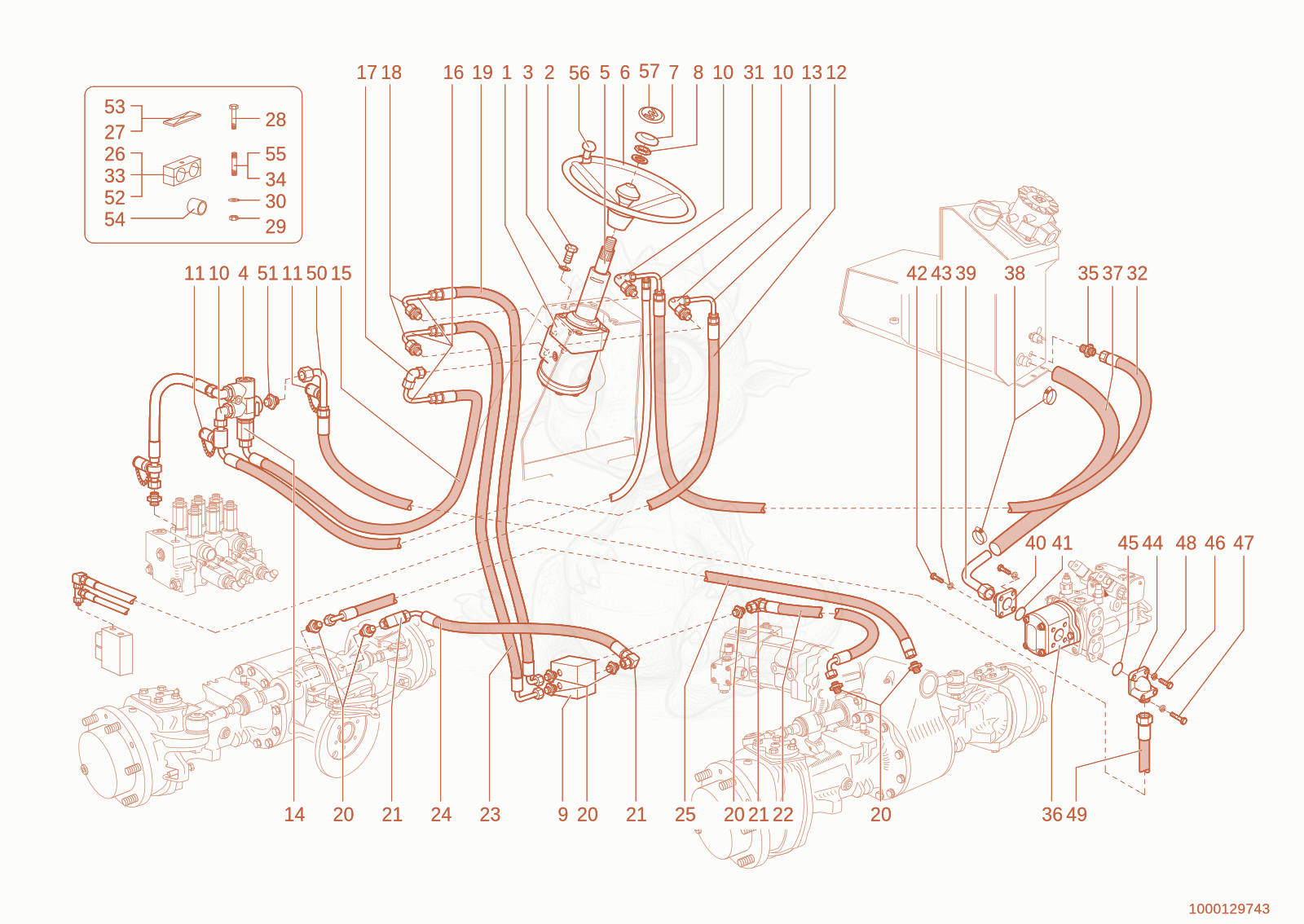

280 steering unit Diagram

Exploded parts diagram of the steering unit of a Wacker Neuson 280, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000034743Not stocked
    hydrostatic steering×1
  • 21000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 31000092291Price
    WASHER - 1000092291×4
  • 41000152329Price
    Priority valve - 1000152329×1
  • 51000050909Not stocked
    steering column×1
  • 61000035065Not stocked
    steering wheel×1
  • 71000035067Not stocked
    cap×1
  • 81000048942Not stocked
    hexagon nut×1
  • 91000026782Not stocked
    valve block×1
  • 101000028722Not stocked
    screw joint×3
  • 111000028166Not stocked
    minimess point×2
  • 121000052180Not stocked
    Hose×1
  • 131000051026Not stocked
    connection piece×1
  • 141000015488Not stocked
    screw joint×1
  • 151000052188Not stocked
    Hose×1
  • 161000051025Not stocked
    connection piece×3
  • 171000028710Not stocked
    screw joint×1
  • 181000015493Not stocked
    screw joint×2
  • 191000052161Not stocked
    Hose×1
  • 201000000577Not stocked
    screw joint×8
  • 211000000542Price
    EW08LOMD - 1000000542×3
  • 221000052257Not stocked
    Hose×1
  • 231000052162Not stocked
    Hose×1
  • 241000127139Price
    SLHYDR 2SC 6,0PN8 0 PN8 90 L455,0 - 1000127139×1
  • 251000127140Price
    SLHYDR 2SC 6,0PN8 90 PN8 0 L1730 0 - 1000127140×1
  • 261000031992Price
    CLAMP - 1000031992×3
  • 271000031230Not stocked
    cover plate×6
  • 281000015344Not stocked
    hex screw×3
  • 291000013022Not stocked
    hexagon nut×7
  • 301000015431Not stocked
    washer×1
  • 311000051048Not stocked
    connection piece×1
  • 321000052248Not stocked
    Hose×1
  • 331000031626Price
    CLAMP - 1000031626×3
  • 341000048892Not stocked
    stud×3
  • 351000028596Not stocked
    screw joint×1
  • 361000279933Price
    Hydraulicpump 1000279933×1
  • 371000098973Not stocked
    hose×1
  • 381000098703Price
    CLAMP - 1000098703×2
  • 391000099097Not stocked
    hydraulic pipe×1
  • 401000028698Not stocked
    screw joint×1
  • 411000000890Price
    O-RING - 1000000890×1
  • 421000048267Not stocked
    cheese head screw×4
  • 431000030968Not stocked
    spring washer×4
  • 441000019449Not stocked
    screw joint×1
  • 451000249612Price
    O-RING - 1000249612×1
  • 461000019450Not stocked
    cheese head screw×2
  • 471000019451Not stocked
    cheese head screw×2
  • 481000019452Not stocked
    spring washer×4
  • 491000098321Not stocked
    Hose×1
  • 501000051058Not stocked
    pipe line×1
  • 511000015494Not stocked
    screw joint×1
  • 521000032359Price
    clamp - 1000032359×3
  • 531000031631Not stocked
    cover plate×3
  • 541000031350Not stocked
    rubber ring×3
  • 551000048896Not stocked
    stud×3
  • 561000087960Price
    Handle - 1000087960×1
  • 571000187758Not stocked
    PLAQUE×1
