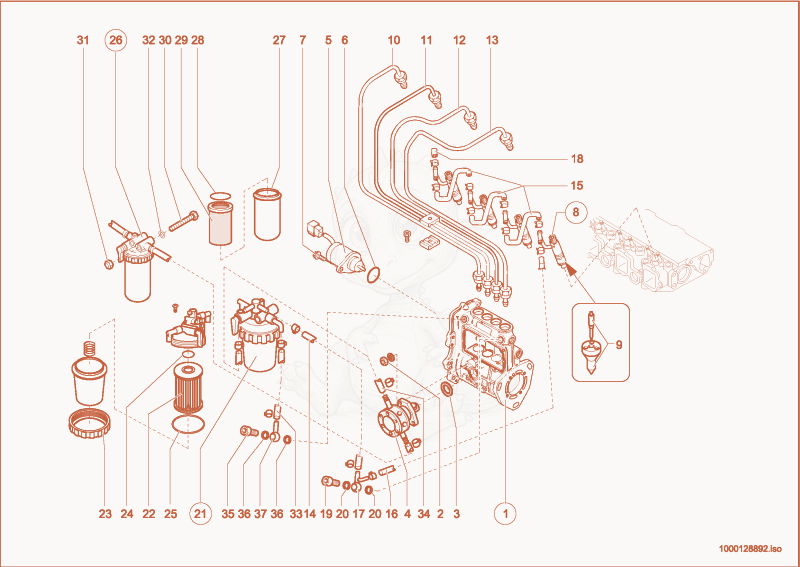

280 Injection Diagram

Exploded parts diagram of the Injection of a Wacker Neuson 280, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000102809Price
Injectionpump 1000102809×1
21000102810Not stocked
X-1000015405 NUT×2
31000012554Not stocked
engine gasket×1
41000012545Not stocked
fuel pump×1
51000003887Not stocked
shut off solenoid×1
61000098358Price
O-ring - 1000098358×1
71000098692Price
hex screw - 1000098692×2
81000098640Price
Injection nozzle - 1000098640×4
91000098596Price
Nozzle needle - 1000098596×4
101000102811Not stocked
injection line×1
111000102812Not stocked
injection line×1
121000102813Not stocked
injection line×1
131000102814Not stocked
injection line×1
141000102815Price
Hose - 1000102815×1
151000035722Not stocked
leakoil line×3
161000035724Not stocked
hose pipe×1
171000035725Not stocked
ring piece×1
181000085213Price
LOCKING CAP - 1000085213×1
191000012555Not stocked
non return valve×1
201000098627Price
SEAL RING - 1000098627×2
211000004680Price
FUEL FILTER - 1000004680×1
221000001012Not stocked
filter insert×1
231000035843Not stocked
filter glass×1
241000090732Price
O-RING - 1000090732×1
251000035755Price
O-ring - 1000035755×1
261000098850Not stocked
Water Seperator×1
271000034992Not stocked
filter glass×1
281000090700Not stocked
o-ring×1
291000098673Price
Filter insert - 1000098673×1
301000022334Not stocked
hex screw×1
311000013022Not stocked
hexagon nut×1
321000015431Not stocked
washer×1
331000102816Price
pipe assy, fuel oil - 1000102816×1
341000102817Not stocked
Hose×1
351000085214Price
BANJO BOLT - 1000085214×1
361000098627Price
SEAL RING - 1000098627×2
371000073612Price
ring piece - 1000073612×1
