280 cooling Diagram

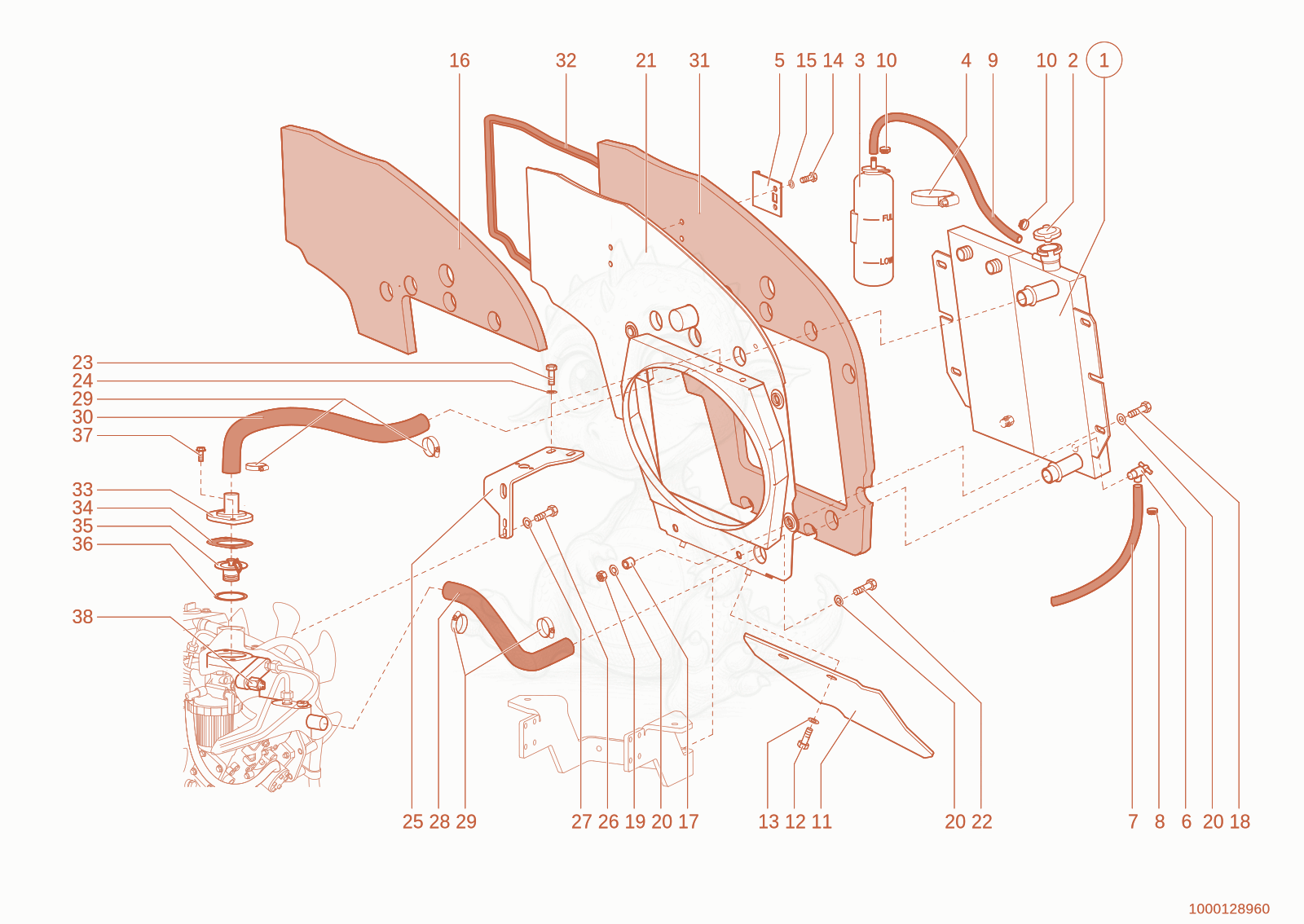

Exploded parts diagram of the cooling of a Wacker Neuson 280, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000050853Price
COMBICOOLER - 1000050853×1
21000098808Price
LOCK COVER - 1000098808×1
31000126718Price
expansion tank - 1000126718×1
41000098795Not stocked
clamp×1
51000073579Price
bracket expansion tank - 1000073579×1
61000050530Price
valve - 1000050530×1
71000302435Price
fuel line - 1000302435×1
81000031886Price
clamp - 1000031886×1
91000097009Not stocked
hose×1
101000032118Price
clamp - 1000032118×2
111000050849Not stocked
cover plate×1
121000019136Not stocked
hex screw×2
131000013027Not stocked
washer×2
141000019136Not stocked
hex screw×2
151000015431Not stocked
washer×2
161000100285Not stocked
insulating mat×1
171000158594Price
bearing - 1000158594×4
181000085413Price
hex screw - 1000085413×4
191000015408Price
nut M10-8 A2C-DIN985 - 1000015408×4
201000092303Price
Washer 10,5 St A2C - 1000092303×12
211000050840Not stocked
seperating sheet×1
221000085411Price
hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
231000013008Not stocked
hex screw×2
241000013027Not stocked
washer×2
251000050846Price
BRACKET - 1000050846×1
261000013008Not stocked
hex screw×2
271000013027Not stocked
washer×2
281000034627Not stocked
preshaped tube×1
291000031757Price
CLAMP - 1000031757×2
301000050842Not stocked
preshaped tube×1
311000051013Not stocked
insulating mat×1
321000097040Price
rofile - 1000097040×1
331000098680Price
BOX COVER - 1000098680×1
341000098623Not stocked
seal×1
351000098690Not stocked
thermostat×1
361000098354Price
O-ring - 1000098354×1
371000085153Price
SCREW - 1000085153×2
381000098356Price
Temperature sensor - 1000098356×1
