280

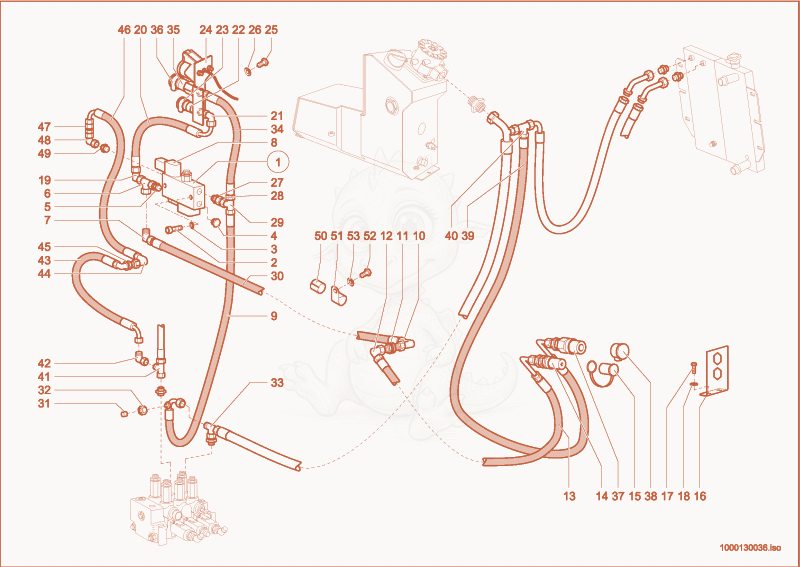

280 Auxiliary control circuit vo.u.hi.52L Diagram
- 11000052090Not stockedsolenoid valve×1
- cheese head screw M6x60-8.8 A2C - 1000085461×2
- 31000049283Not stockedbearing disc×2
- 41000030660Not stockedlock plug×1
- 51000015494Not stockedscrew joint×1
- 61000015539Not stockedscrew joint×1
- 71000015510Not stockedscrew joint×1
- solenoid - 1000086388×2
- 91000127893Not stockedHose×1
- 101000028318Not stockedlock screw connection×1
- 111000049223Not stockedwasher×1
- 121000015512Not stockedscrew joint×1
- 131000052245Not stockedHose×1
- 141000020981Not stockedquick lock coupling×1
- 151000020860Not stockeddust cap×1
- Bracket - 1000100209×1
- 171000020553Not stockedhex screw×2
- WASHER - 1000092290×2
- 191000015512Not stockedscrew joint×1
- SLHYDR 2SC 16 PN15 0 PN18 90 L380,0 - 1000127894×1
- 211000015513Not stockedscrew joint×1
- 221000101122Not stockedcoupling socket×1
- Cover - 1000033344×1
- Bracket - 1000099733×1
- 251000019136Not stockedhex screw×2
- 261000013027Not stockedwasher×2
- GE22LREDOMDA3C - 1000085096×1
- GZ22L - 1000101005×1
- 291000085043Not stockedscrew joint×1
- 301000052181Not stockedHose×1
- 311000028235Not stockedlock piece×1
- 321000050504Not stockedunion nut×1
- TR22/18/22-L - 1000101006×1
- SLHYDR 2SC 20 PN22 0 PN22 0 L440,0 - 1000098315×1
- Coupling socket - 1000101123×1
- Cover Bg 3 blau - 1000105790×1
- 371000101122Not stockedcoupling socket×1
- Cover - 1000033344×1
- 391000052252Not stockedHose×1
- 401000015517Not stockedscrew joint×1
- EL12LOMDA3C - 1000015516×1
- 421000000573Not stockedscrew joint×1
- 431000127896Not stockedHose×1
- 441000000573Not stockedscrew joint×1
- 451000021041Not stockedscrew joint×1
- SLHYDR 2SC L240,0 - 1000127895×1
- NON RETURN VALVE RHD 15-L 0,2bar - 1000127833×1
- 481000015512Not stockedscrew joint×1
- 491000015521Not stockedscrew joint×1
- 501000031334Not stockedring×2
- CLAMP - 1000032258×1
- 521000019136Not stockedhex screw×2
- 531000013027Not stockedwasher×2
