280 Cylinder Diagram

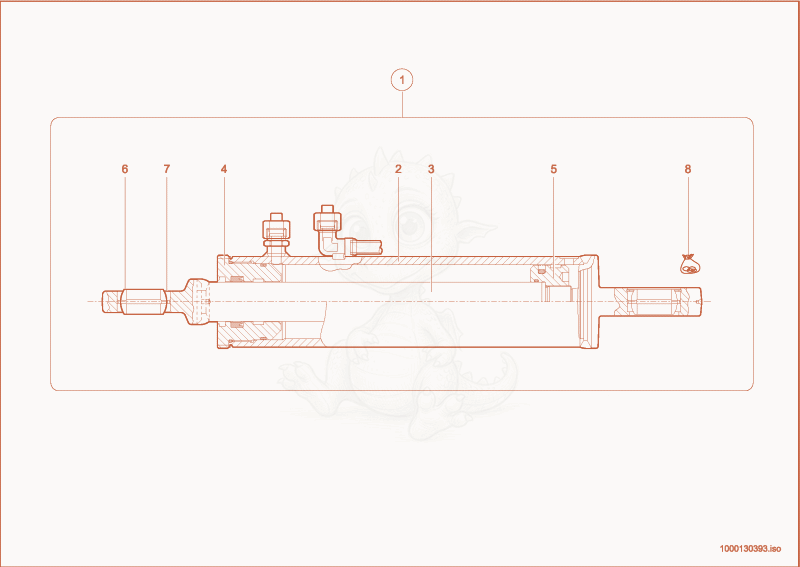

Exploded parts diagram of the Cylinder of a Wacker Neuson 280, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000113926Not stocked
lift cylinder×1
21000130395Not stocked
cylinder pipe×1
31000130396Price
Pistonrod 1000130396×1
41000130397Price
Guide bushing - 1000130397×1
51000130398Price
Piston - 1000130398×1
61000032422Not stocked
pivoting bearing×2
71000020784Not stocked
lock ring×2
81000114364Price
SEAL KIT - 1000114364×1
