280

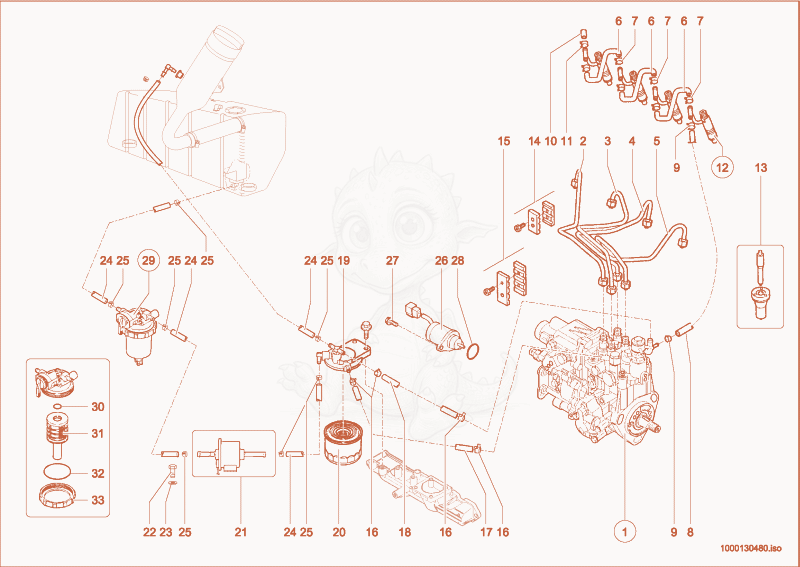

280 Injection Diagram
- Injectionpump 1000130240×1
- 21000130289Not stockedinjection line×1
- 31000130291Not stockedinjection line×1
- 41000130292Not stockedinjection line×1
- 51000130293Not stockedinjection line×1
- Pipe line - 1000126865×3
- Clamp - 1000126863×6
- Pipe line - 1000126864×1
- Clamp - 1000126863×2
- Plug - 1000126866×1
- Clamp - 1000130295×1
- injection nozzle - 1000106294×4
- Nozzle needle - 1000130272×4
- Clamp - 1000130266×1
- Clamp - 1000130267×1
- hose clamp - 1000085217×4
- HOSE PIPE - 1000130297×1
- Hose - 1000102815×1
- bracket dieselfilter - 1000113360×1
- FUEL FILTER - 1000106891×1
- FUEL PUMP - 1000093894×1
- 221000020553Not stockedhex screw×2
- WASHER - 1000092290×2
- 241000097009Not stockedhose×1
- clamp - 1000032118×6
- 261000003887Not stockedshut off solenoid×1
- hex screw - 1000098692×2
- O-ring - 1000098358×1
- Water Seperator - 1000078938×1
- O-RING - 1000064543×1
- water seperator element - 1000106892×1
- O-ring - 1000035755×1
- 331000035846Not stockedring nut×1
