280

280 Vat device cycle Diagram

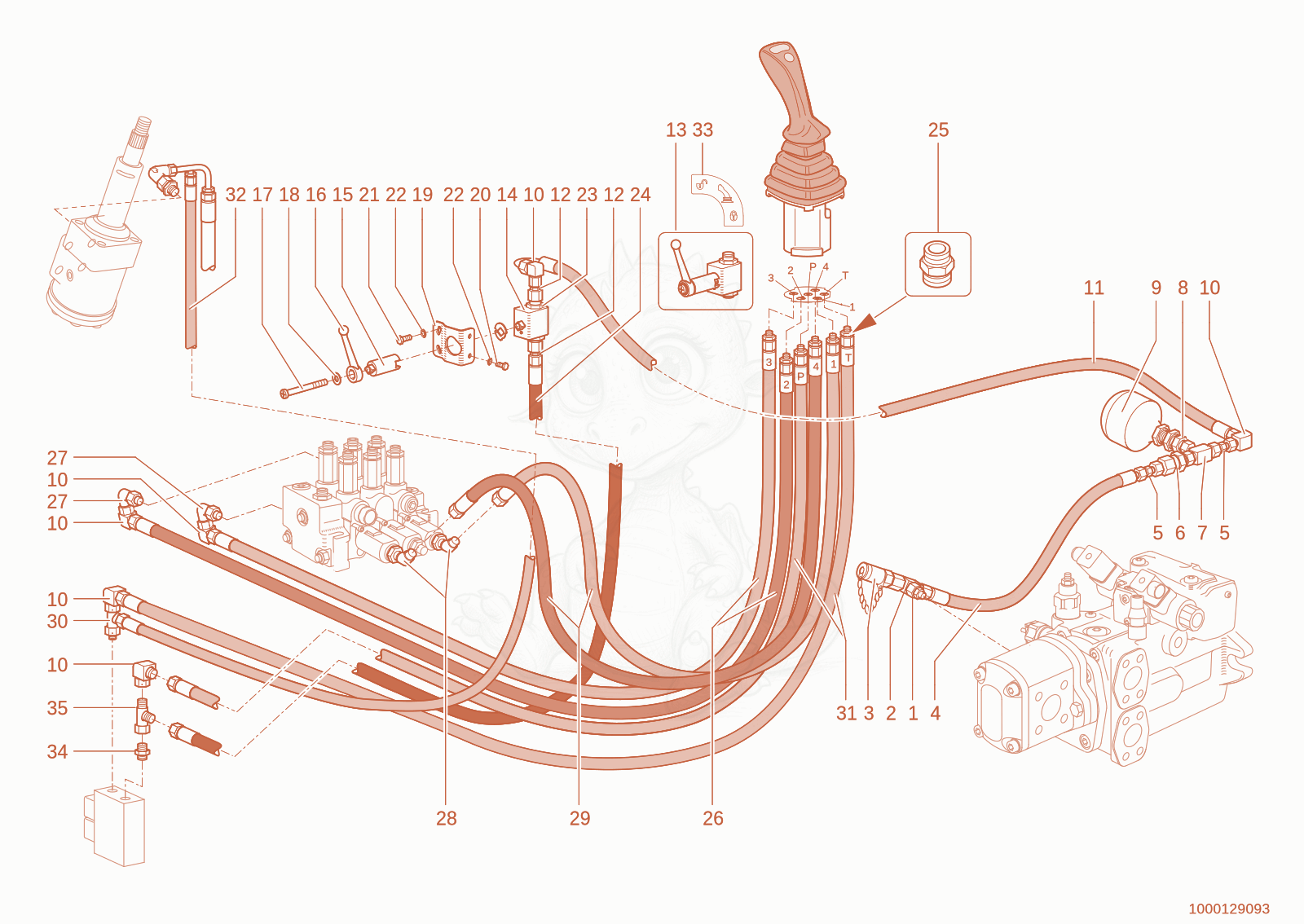

Exploded parts diagram of the Vat device cycle of a Wacker Neuson 280, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000015501Price
    GE06LMEDOMDA3C - 1000015501×1
  • 21000085136Price
    ET6LOMDA3C - 1000085136×1
  • 31000028660Not stocked
    minimess point×1
  • 41000052190Not stocked
    Hose×1
  • 51000028509Not stocked
    screw joint×2
  • 61000027830Not stocked
    non return valve×1
  • 71000085089Price
    EL10LOMDA3C - 1000085089×1
  • 81000028508Not stocked
    screw joint×1
  • 91000028372Not stocked
    pressure accumulator×1
  • 101000085055Price
    EW06LOMDA3C - 1000085055×6
  • 111000052189Not stocked
    Hose×1
  • 121000085109Price
    RED08/06LOMDA3C - 1000085109×2
  • 131000027651Not stocked
    ball valve×1
  • 141000027845Not stocked
    ball valve×1
  • 151000036968Not stocked
    extension piece×1
  • 161000027755Not stocked
    shift lever×1
  • 171000085551Price
    flat head screw - 1000085551×1
  • 181000095342Price
    washer X-1000092302 - 1000095342×1
  • 191000051087Not stocked
    bracket×1
  • 201000047662Not stocked
    hex screw×2
  • 211000085378Price
    hex screw - 1000085378×2
  • 221000092289Price
    WASHER - 1000092289×6
  • 231000028311Not stocked
    screw joint×1
  • 241000052191Not stocked
    Hose×1
  • 251000015498Not stocked
    screw joint×6
  • 261000052193Not stocked
    Hose×2
  • 271000028741Not stocked
    screw joint×2
  • 281000028377Not stocked
    screw joint×2
  • 291000052194Not stocked
    Hose×2
  • 301000052136Not stocked
    screw joint×1
  • 311000052192Not stocked
    Hose×2
  • 321000052195Not stocked
    Hose×1
  • 331000050662Not stocked
    indication label×1
  • 341000015498Not stocked
    screw joint×1
  • 351000085120Price
    EL6LO.M,S A3C - 1000085120×1
