WL95

WL95(WRL90-00) heating Diagram

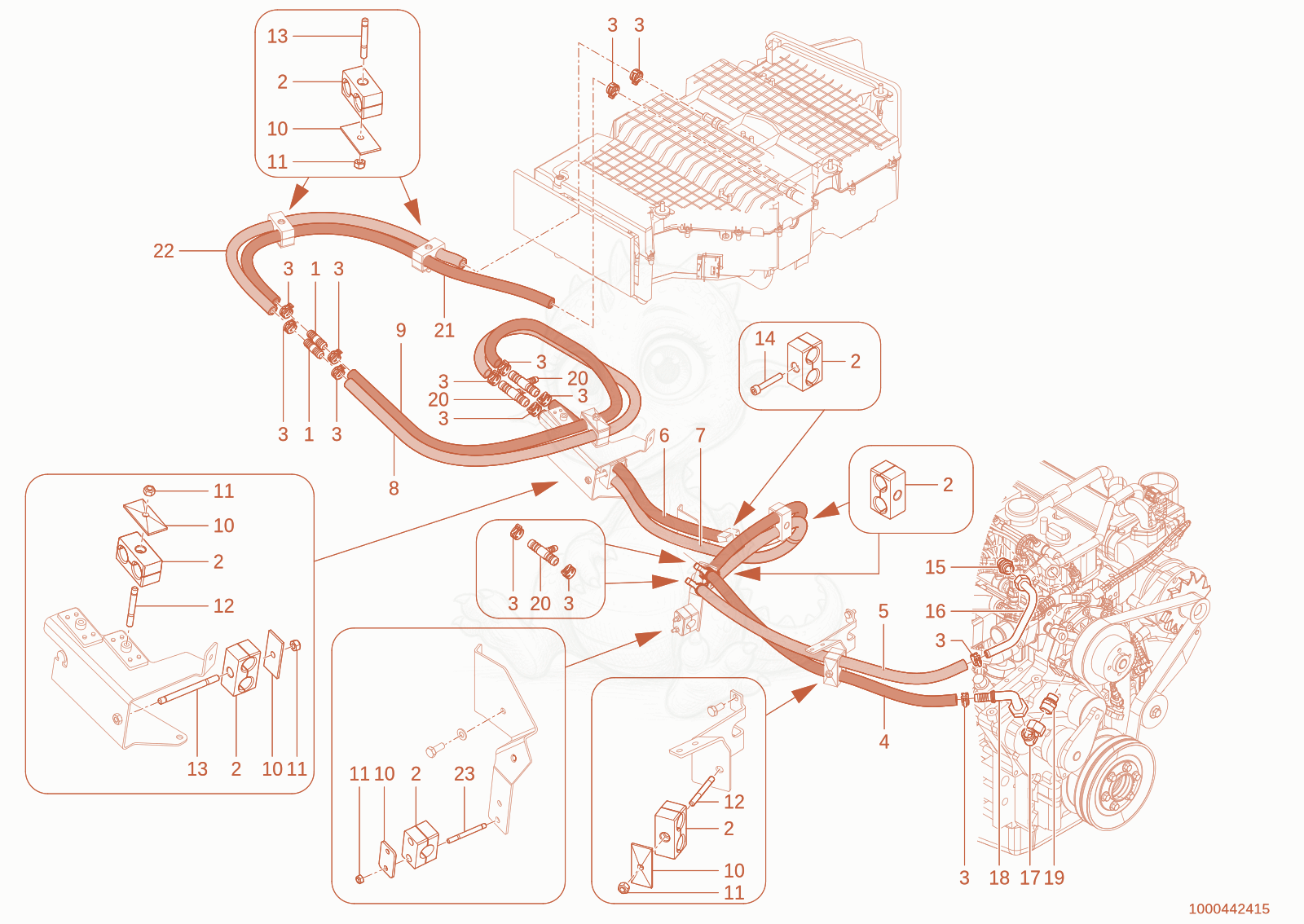

Exploded parts diagram of the heating of a Wacker Neuson WL95(WRL90-00), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000130102Price
    connection piece - 1000130102×2
  • 21000032006Not stocked
    clamp×8
  • 31000292847Price
    clamp - 1000292847×16
  • 41000097639Not stocked
    heater hose×0.745
  • 51000097639Not stocked
    heater hose×0.815
  • 61000097639Not stocked
    heater hose×1.39
  • 71000097639Not stocked
    heater hose×1.44
  • 81000097639Not stocked
    heater hose×1.45
  • 91000097639Not stocked
    heater hose×1.5
  • 101000031245Not stocked
    cover plate×5
  • 111000013022Not stocked
    hexagon nut×5
  • 121000048894Not stocked
    stud×4
  • 131000048898Not stocked
    screw×1
  • 141000048172Not stocked
    cheese head screw×1
  • 151000085101Price
    GE15LM22X1,5EDOMDA3C - 1000085101×1
  • 161000354613Not stocked
    hydraulic pipe×1
  • 171000015513Not stocked
    screw joint×1
  • 181000169787Price
    hose fitting - 1000169787×1
  • 191000085104Price
    GE18LM22X1,5EDOMDA3C - 1000085104×1
  • 201000380468Not stocked
    connection piece×4
  • 211000097639Not stocked
    heater hose×0.95
  • 221000097639Not stocked
    heater hose×0.75
  • 231000048887Price
    STUD - 1000048887×1
