WL95

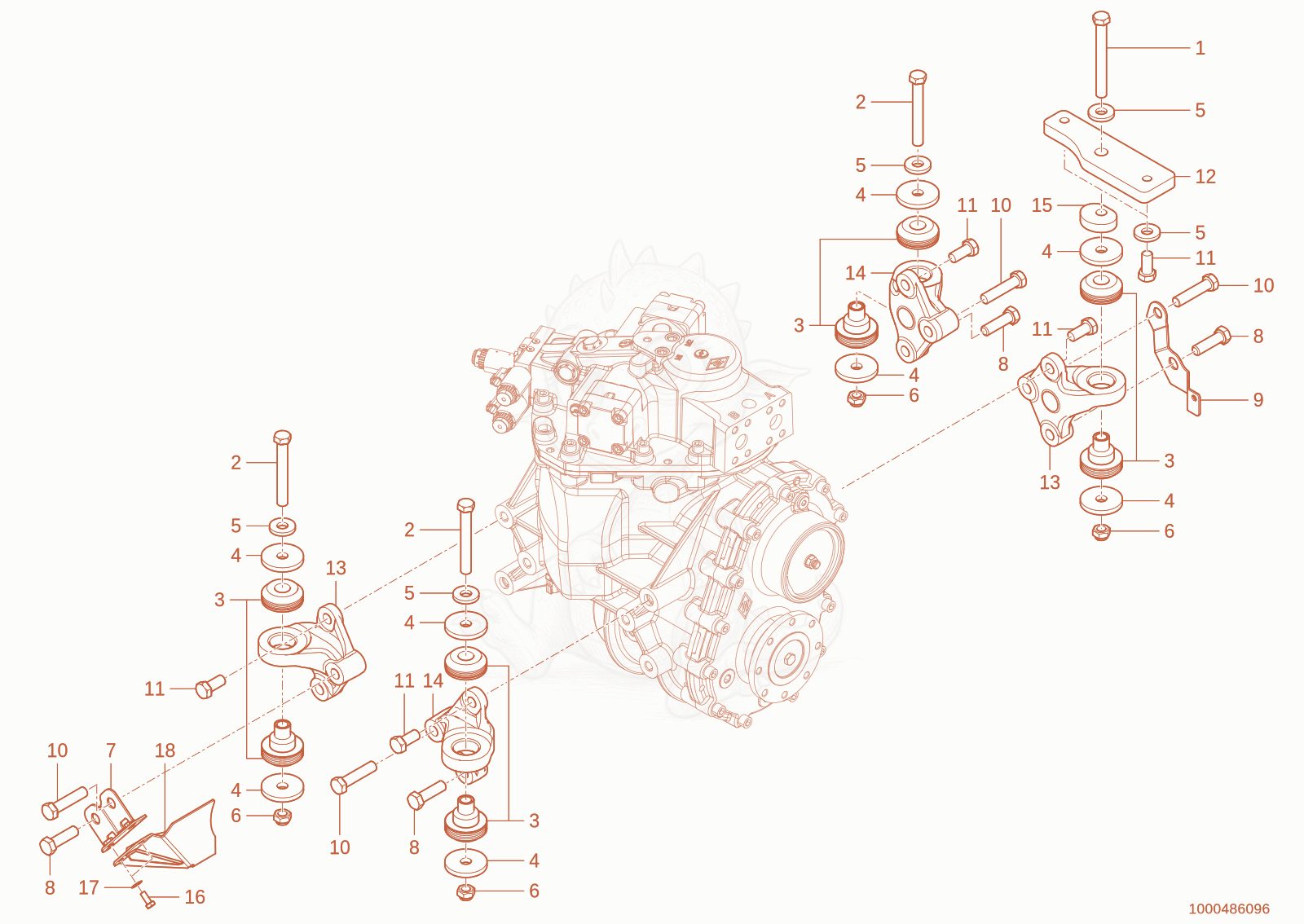

WL95(WRL90-00) gearbox mounting Diagram

Exploded parts diagram of the gearbox mounting of a Wacker Neuson WL95(WRL90-00), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000376008Not stocked
    hex screw×3
  • 21000019217Not stocked
    hex screw×1
  • 31000376015Price
    bearing - 1000376015×4
  • 41000160714Price
    WASHER - 1000160714×8
  • 51000020782Not stocked
    washer×6
  • 61000020788Not stocked
    hexagon nut×4
  • 71000425540Not stocked
    adapter×1
  • 81000047298Not stocked
    hex screw×4
  • 91000425583Price
    Bracket - 1000425583×1
  • 101000085339Price
    hex screw - 1000085339×4
  • 111000047711Not stocked
    hex screw×6
  • 121000424253Price
    Adapter - 1000424253×1
  • 131000424251Price
    Bracket - 1000424251×2
  • 141000424250Price
    Bracket - 1000424250×2
  • 151000423576Not stocked
    shim×1
  • 161000013008Not stocked
    hex screw×2
  • 171000015431Not stocked
    washer×2
  • 181000420026Not stocked
    protection plate×1
