WL95

WL95(WRL90-00) control unit Diagram

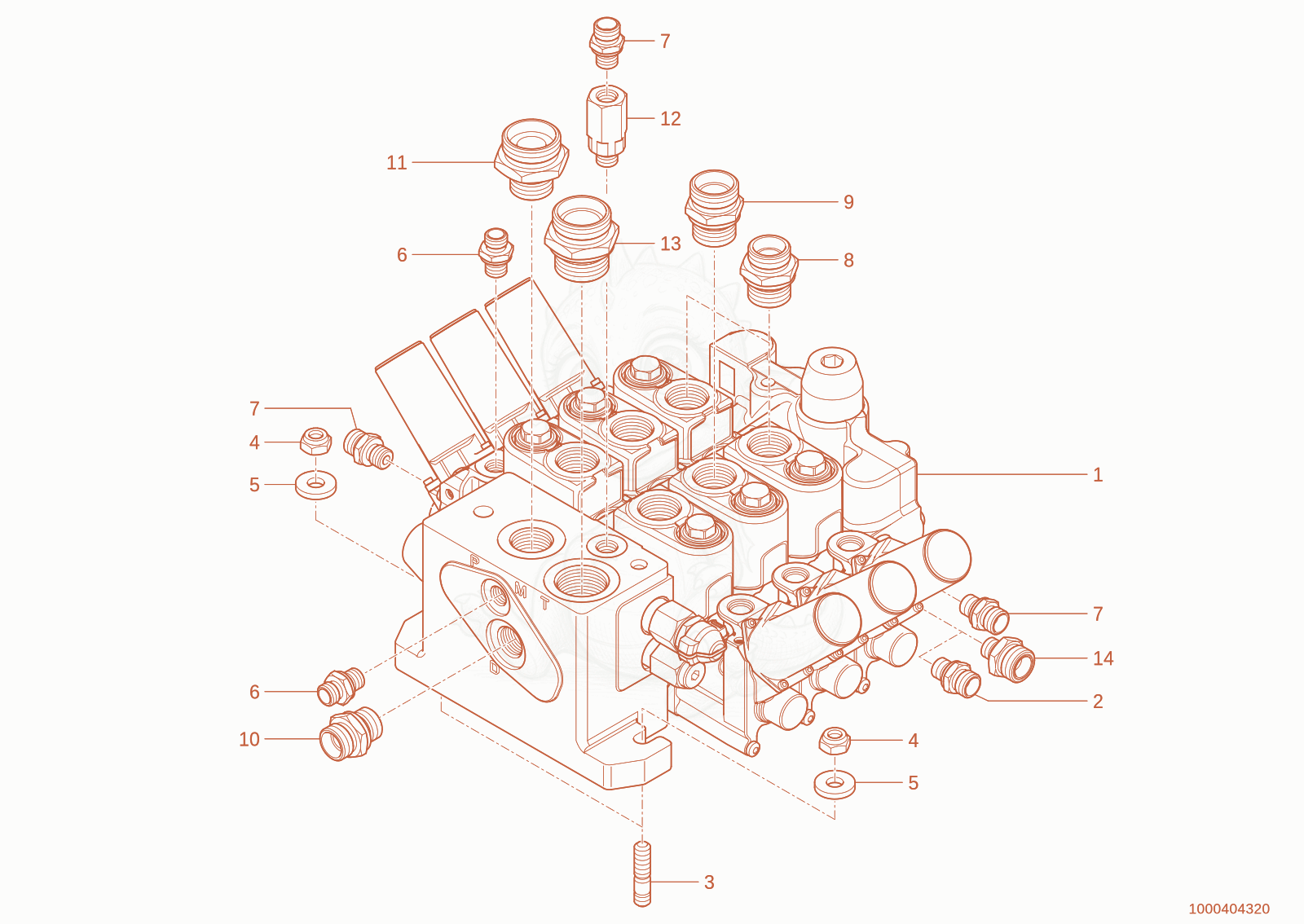

Exploded parts diagram of the control unit of a Wacker Neuson WL95(WRL90-00), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000351825Not stocked
    control valve×1
  • 21000085128Price
    GE12LR1/4EDOMDA3C - 1000085128×1
  • 31000048917Not stocked
    stud×3
  • 41000015408Price
    nut M10-8 A2C-DIN985 - 1000015408×3
  • 51000049278Not stocked
    washer×3
  • 61000015488Not stocked
    screw joint×2
  • 71000015490Not stocked
    screw joint×3
  • 81000015565Not stocked
    screw joint×2
  • 91000085096Price
    GE22LREDOMDA3C - 1000085096×4
  • 101000015494Not stocked
    screw joint×1
  • 111000085069Price
    E28LR3/4" EDOMDA3C - 1000085069×1
  • 121000379316Not stocked
    throttle stop valve×1
  • 131000015496Not stocked
    screw joint×1
  • 141000158256Price
    GE15LR1/4EDOMDA3C - 1000158256×1
