WL95

WL95(WRL90-00) hydraulic motor Diagram

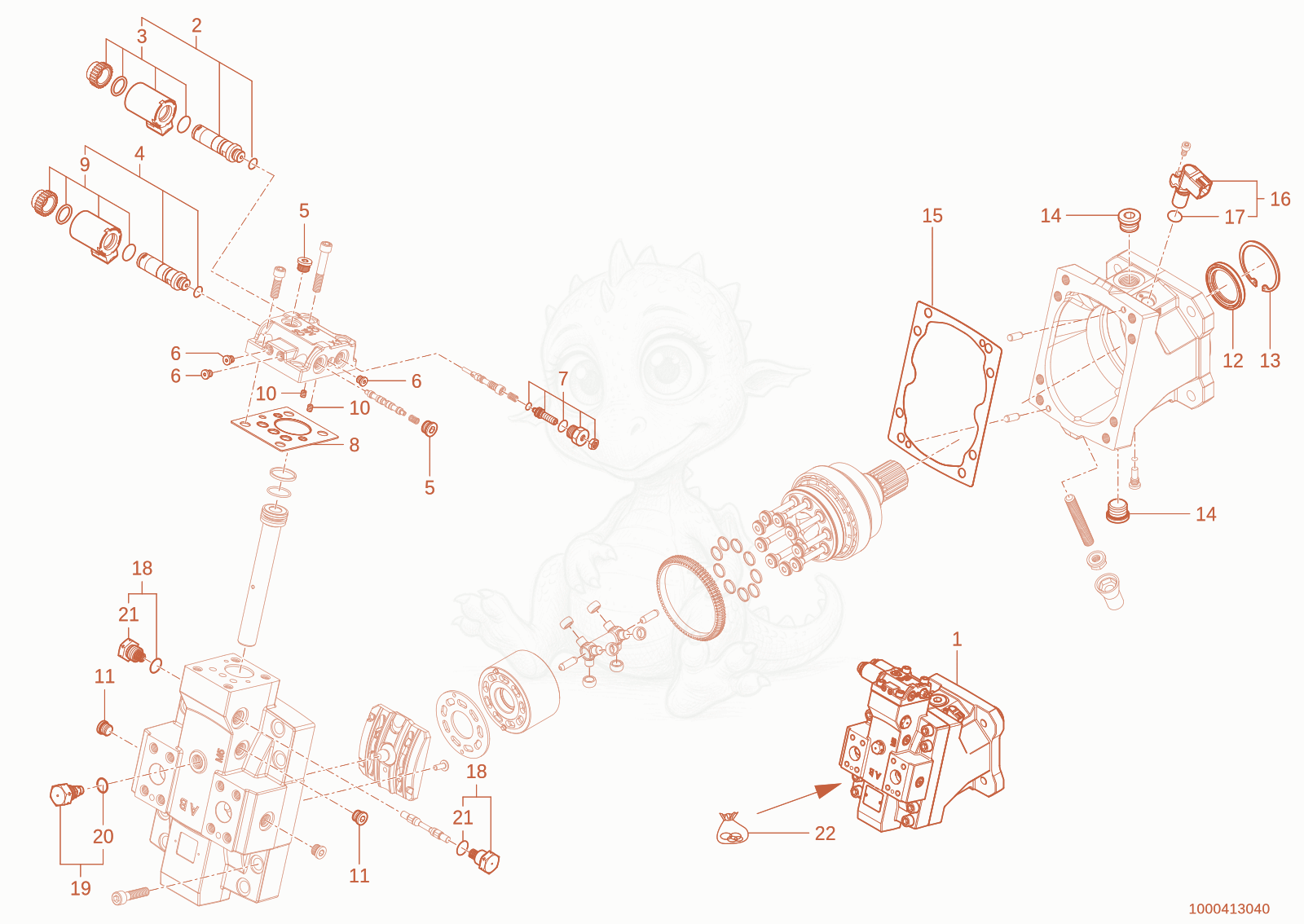

Exploded parts diagram of the hydraulic motor of a Wacker Neuson WL95(WRL90-00), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000341749Not stocked
    displacement motor×1
  • 21000257358Price
    PROPORTIONAL VALVE - 1000257358×1
  • 31000257354Price
    solenoid - 1000257354×1
  • 41000257357Price
    Solenoid valve - 1000257357×1
  • 51000255502Price
    PLUG - 1000255502×2
  • 61000112211Price
    PLUG - 1000112211×3
  • 71000325272Not stocked
    pressure limit reliefvalve×1
  • 81000412953Price
    Seal - 1000412953×1
  • 91000257356Price
    MAGNET SPOOL - 1000257356×1
  • 101000257368Price
    Nozzle - 1000257368×2
  • 111000255502Price
    PLUG - 1000255502×3
  • 121000154321Not stocked
    rotary shaft seal×1
  • 131000412900Not stocked
    lock ring×1
  • 141000087350Price
    LOCK SCREW - 1000087350×2
  • 151000328574Price
    Seal - 1000328574×1
  • 161000248725Price
    SENSOR - 1000248725×1
  • 171000224518Price
    O-RING - 1000224518×1
  • 181000412952Price
    plug - 1000412952×2
  • 191000257367Price
    WASHING VALVE - 1000257367×1
  • 201000257365Price
    O-ring - 1000257365×1
  • 211000257365Price
    O-ring - 1000257365×2
  • 221000413049Not stocked
    seal kit×1
