WL95

WL95(WRL90-00) SP DRIVES CYCLE Diagram

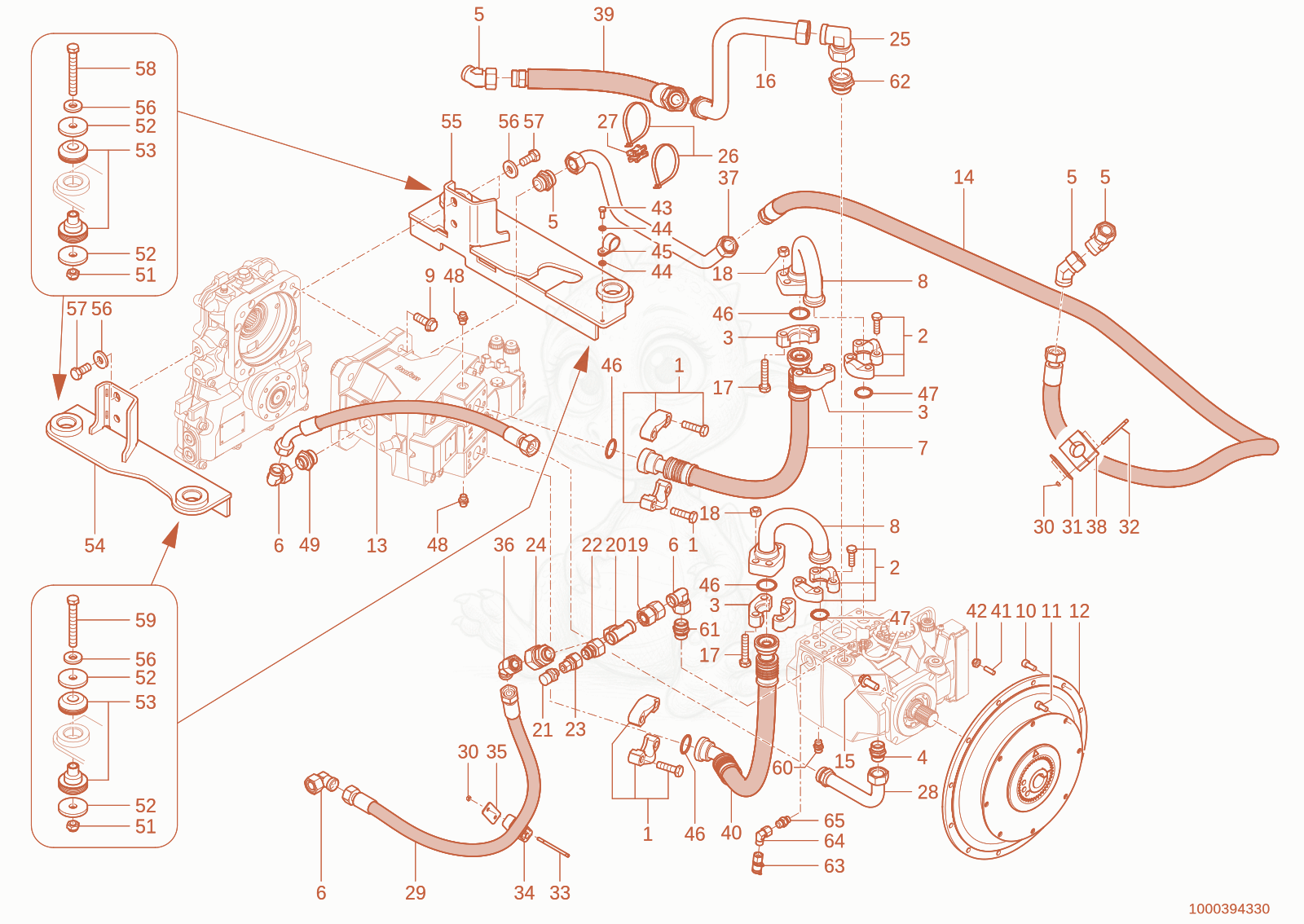

Exploded parts diagram of the SP DRIVES CYCLE of a Wacker Neuson WL95(WRL90-00), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000553885Not stocked
    flange retrofit kit 1 1/4 inch×2
  • 21000553753Not stocked
    flange retrofit kit 1 inch×2
  • 31000524648Not stocked
    half flange×8
  • 41000028191Price
    GE28L11/16UNOMDA3C - 1000028191×1
  • 51000189544Price
    EW45°28-L A3C - 1000189544×3
  • 61000020261Price
    EW22LOMD - 1000020261×3
  • 71000367727Not stocked
    Hose×1
  • 81000366670Not stocked
    hose fitting×2
  • 91000542451Not stocked
    hex screw×4
  • 101000085468Price
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×10
  • 111000248551Price
    CHEESE HEAD SCREW - 1000248551×8
  • 121000345240Price
    coupling - 1000345240×1
  • 131000373107Not stocked
    Hose×1
  • 141000373108Not stocked
    Hose×1
  • 151000032925Not stocked
    hex screw×4
  • 161000382546Not stocked
    oil line×1
  • 171000047618Not stocked
    hex screw×8
  • 181000082563Price
    HEXAGON NUT - 1000082563×8
  • 191000101005Price
    GZ22L - 1000101005×1
  • 201000085124Price
    ET22LOMDA3C - 1000085124×1
  • 211000028095Not stocked
    drain coupling×1
  • 221000028177Not stocked
    screw joint×1
  • 231000028337Price
    REDUCTION - 1000028337×1
  • 241000306801Not stocked
    non return valve×1
  • 251000085113Price
    EW35LOMDA3C - 1000085113×1
  • 261000090012Price
    CABLE STRAP - 1000090012×2
  • 271000302499Price
    fixing bracket - 1000302499×1
  • 281000384536Not stocked
    pipe line×1
  • 291000384416Not stocked
    Hose×1
  • 301000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
  • 311000099794Price
    COVER PLATE - 1000099794×1
  • 321000048880Not stocked
    stud×2
  • 331000109713Price
    STUD - 1000109713×2
  • 341000142048Price
    CLAMP - 1000142048×1
  • 351000031685Not stocked
    cover plate×1
  • 361000186876Price
    EW45°22-L A3C - 1000186876×1
  • 371000438506Not stocked
    hydraulic line×1
  • 381000032250Price
    CLAMP - 1000032250×1
  • 391000395429Not stocked
    Hose×1
  • 401000384533Not stocked
    Hose×1
  • 411000048876Price
    STUD - 1000048876×2
  • 421000015408Price
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 431000013008Not stocked
    hex screw×1
  • 441000015431Not stocked
    washer×2
  • 451000031691Price
    CLAMP - 1000031691×1
  • 461000020771Price
    O-RING - 1000020771×4
  • 471000020772Price
    o-ring - 1000020772×2
  • 481000085130Price
    GE08L9/16UNF EDOMDA3C - 1000085130×2
  • 491000028519Not stocked
    screw joint×1
  • 501000028578Not stocked
    screw joint×1
  • 511000020788Not stocked
    hexagon nut×4
  • 521000160714Price
    WASHER - 1000160714×8
  • 531000376015Price
    bearing - 1000376015×4
  • 541000362632Price
    Suspension - 1000362632×1
  • 551000362631Price
    Suspension - 1000362631×1
  • 561000020782Not stocked
    washer×8
  • 571000047711Not stocked
    hex screw×4
  • 581000376008Not stocked
    hex screw×2
  • 591000019217Not stocked
    hex screw×2
  • 601000028352Not stocked
    screw joint×1
  • 611000085067Not stocked
    screw joint×1
  • 621000381705Not stocked
    screw connection×1
  • 631000028555Not stocked
    minimess point×1
  • 641000085100Not stocked
    screw joint×1
  • 651000150243Price
    GE08S9/16-18UNF ED OMD A3C - 1000150243×1
