WL95

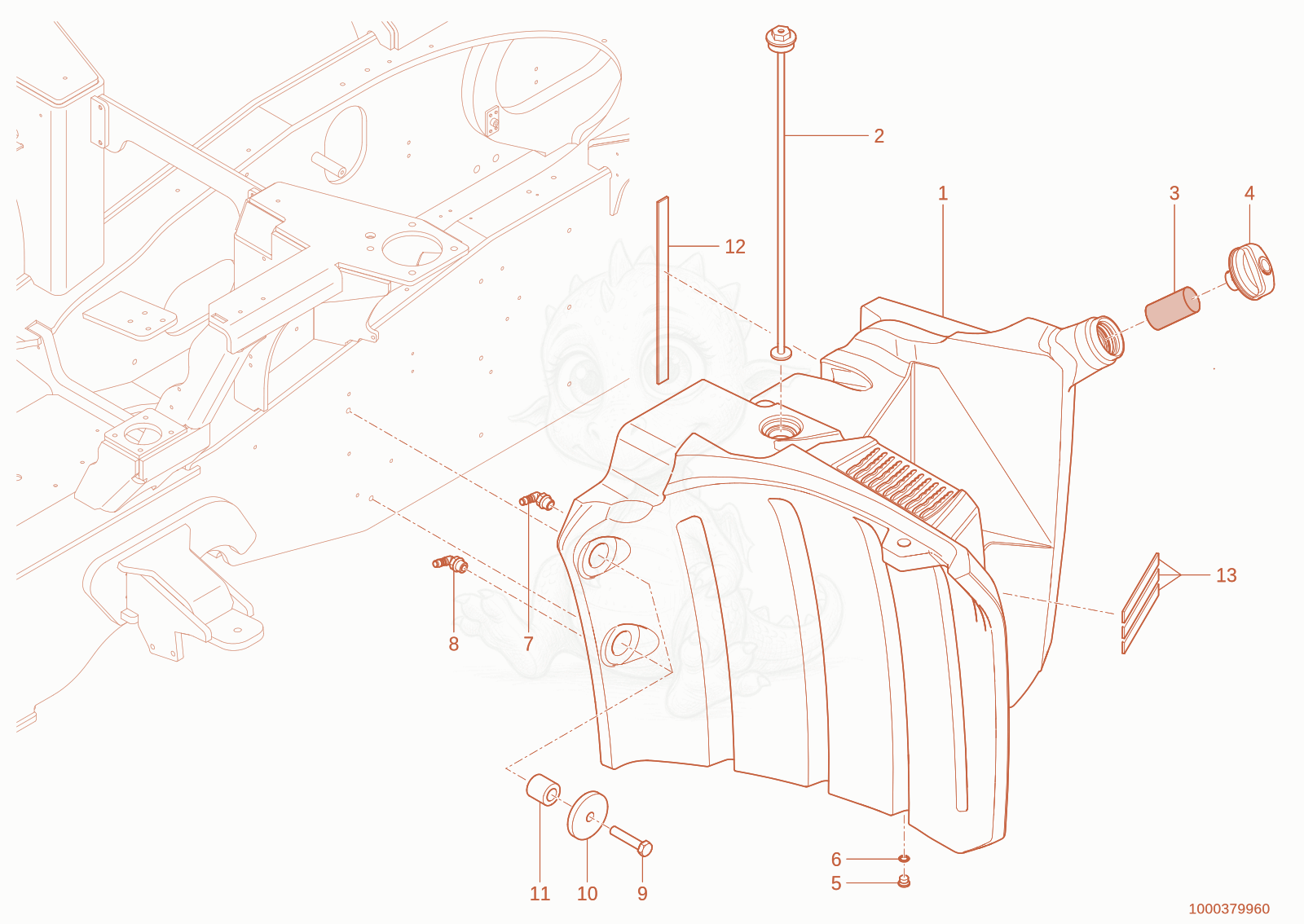

WL95(WRL90-00) fuel tank Diagram

Exploded parts diagram of the fuel tank of a Wacker Neuson WL95(WRL90-00), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000385185Not stocked
    fuel tank×1
  • 21000358997Not stocked
    level sensor×1
  • 31000160736Price
    SCREEN - 1000160736×1
  • 41000298126Price
    LOCK COVER - 1000298126×1
  • 51000048677Not stocked
    lock screw×1
  • 61000322886Price
    O-ring - 1000322886×1
  • 71000337240Not stocked
    end piece×1
  • 81000302667Not stocked
    screw joint×1
  • 91000085359Price
    HEX SCREW - 1000085359×2
  • 101000363570Price
    WASHER - 1000363570×2
  • 111000363569Not stocked
    sleeve×2
  • 121000097033Price
    RUBBER STRIP - 1000097033×0.525
  • 131000097033Price
    RUBBER STRIP - 1000097033×0.72
