WL95

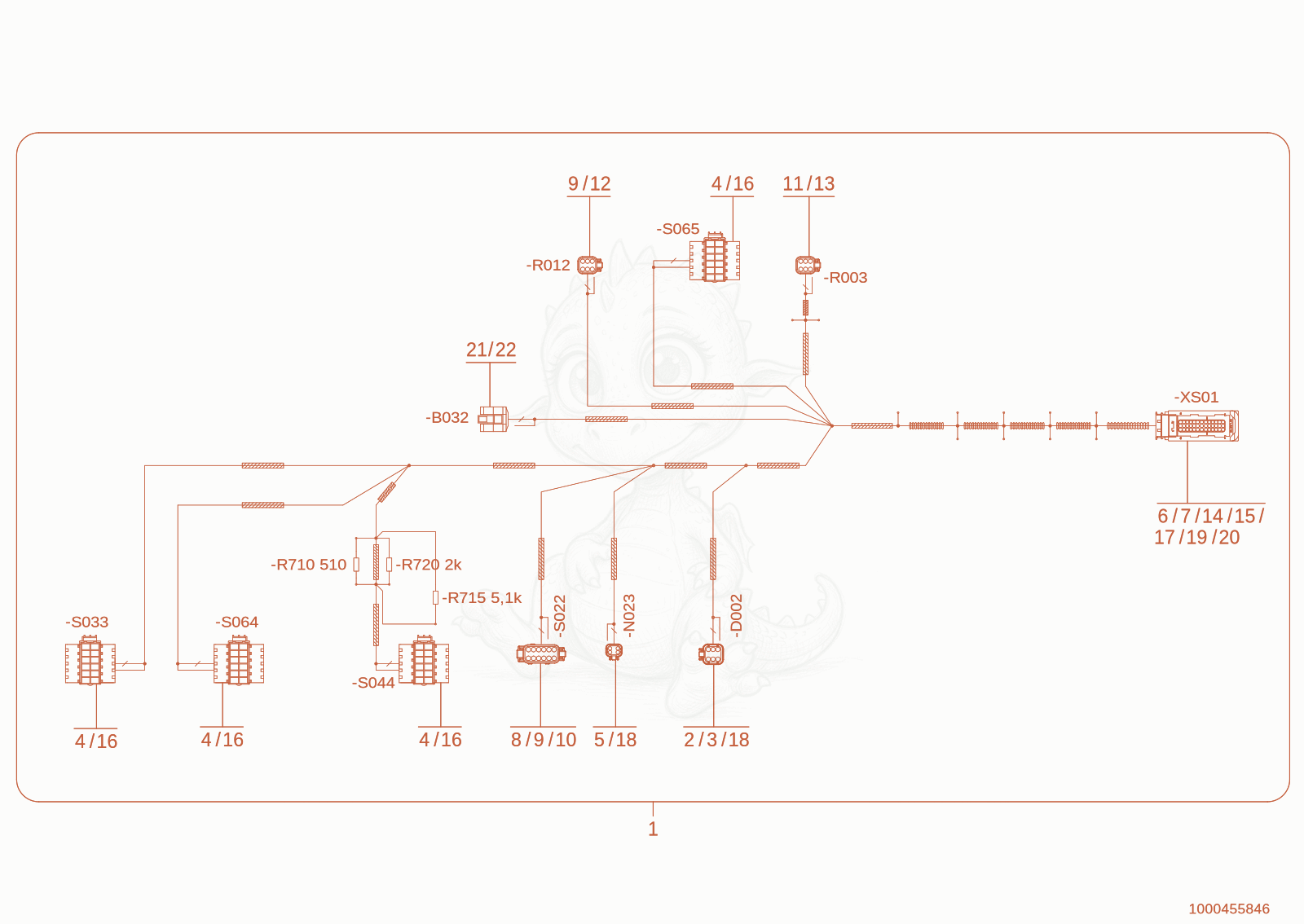

WL95(WRL90-00) wiring harness Diagram
- 11000432148Not stockedwiring harness×1
- 21000027431Not stockedbushing housing×1
- 31000030446Not stockedplug×1
- Timer Contact - 1000103753×27
- bushing housing - 1000104286×1
- seal - 1000104739×2
- Plug - 1000128773×9
- 81000148250Not stockedplug bushing×1
- bushing contact - 1000148274×9
- Plug - 1000161431×3
- 111000161432Not stockedbushing contact×6
- bushing housing - 1000183226×1
- bushing housing - 1000238088×1
- seal - 1000246747×28
- plug sleeve housing - 1000260148×1
- 161000303783Not stockedbushing housing×4
- 171000338907Not stockedTube×2
- 181000359612Not stockedplug connection×9
- 191000370413Not stockedbushing contact×28
- cover cap - 1000261548×1
- plug sleeve housing - 1000095320×1
- 221000095330Not stockedplug sleeve×4
