TH412

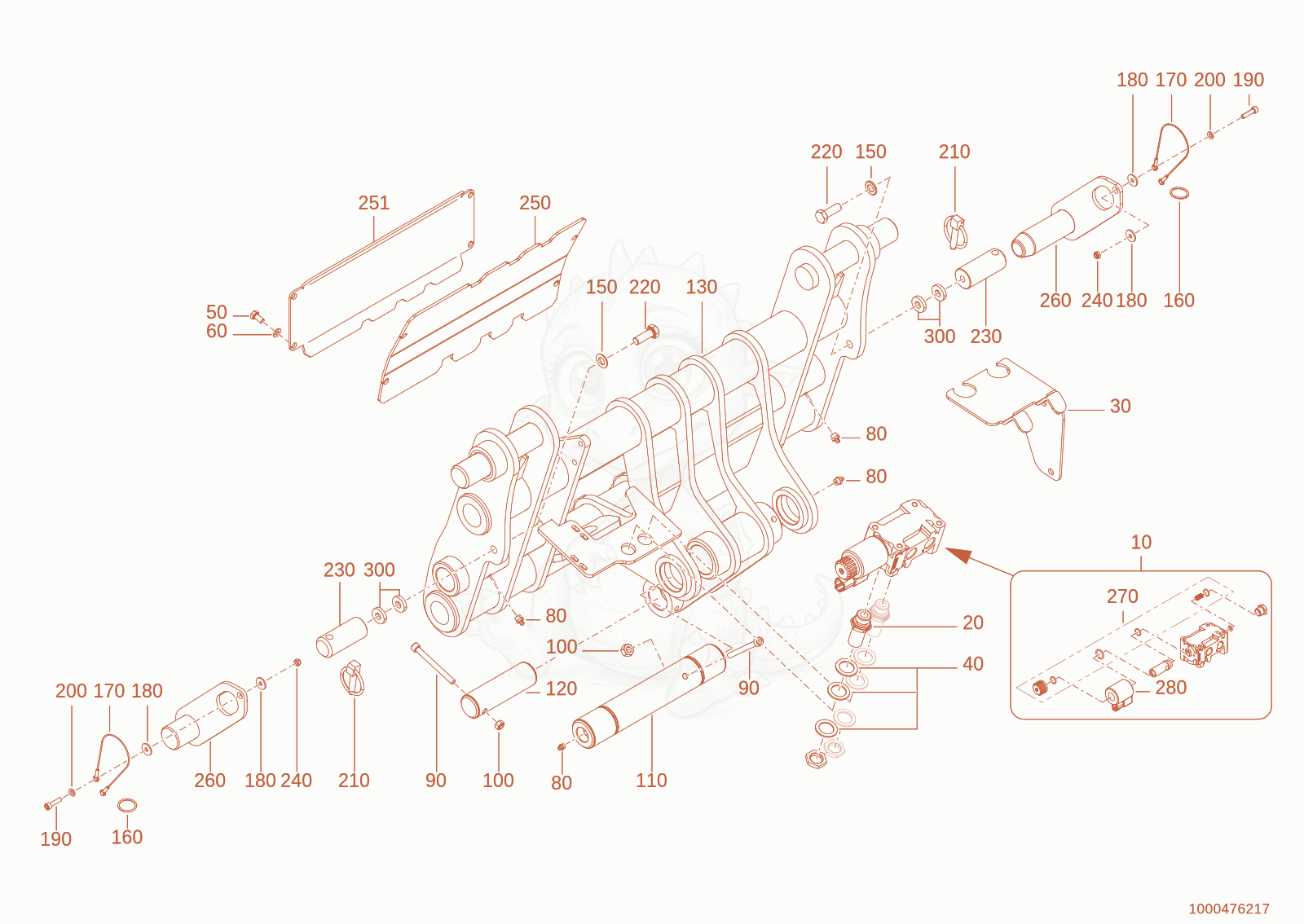

TH412(T01-01) quickhitch plate Diagram
- Drivevalve 1000283339×1
- CONNECTION-LOCK SCREW - 1000251532×2
- 301000495436Not stockedbracket×1
- 401000449010Not stockedfitting disc×6
- 501000019136Not stockedhex screw×4
- 601000015431Not stockedwasher×4
- grease nipple - 1000050469×4
- INNER HEXAGON SCREW - 1000223831×2
- 1001000013022Not stockedhexagon nut×2
- 1101000464632Not stockedpin×1
- bolt - 1000187686×1
- 1301000465016Not stockedquickhitch plate×1
- 1501000049219Not stockedwasher×2
- key ring - 1000193637×2
- ACTUACTION CABLE - 1000222700×2
- Washer - 1000222992×4
- allen screw M6x25-8.8 A2C DIN912 - 1000085457×2
- 2001000015430Not stockedu-washer×2
- 2101000050586Not stockedcotter pin×2
- 2201000047390Not stockedhex screw×2
- bolt - 1000268233×2
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
- 2501000465008Not stockedcover plate×1
- 2511000489772Not stockedcover plate×1
- pin - 1000467455×2
- 2701000292601Not stockedseal kit×1
- magnet spool - 1000292602×1
- U-WASHER - 1000223000×4
