TH412

TH412(T01-01) brake pedal Diagram

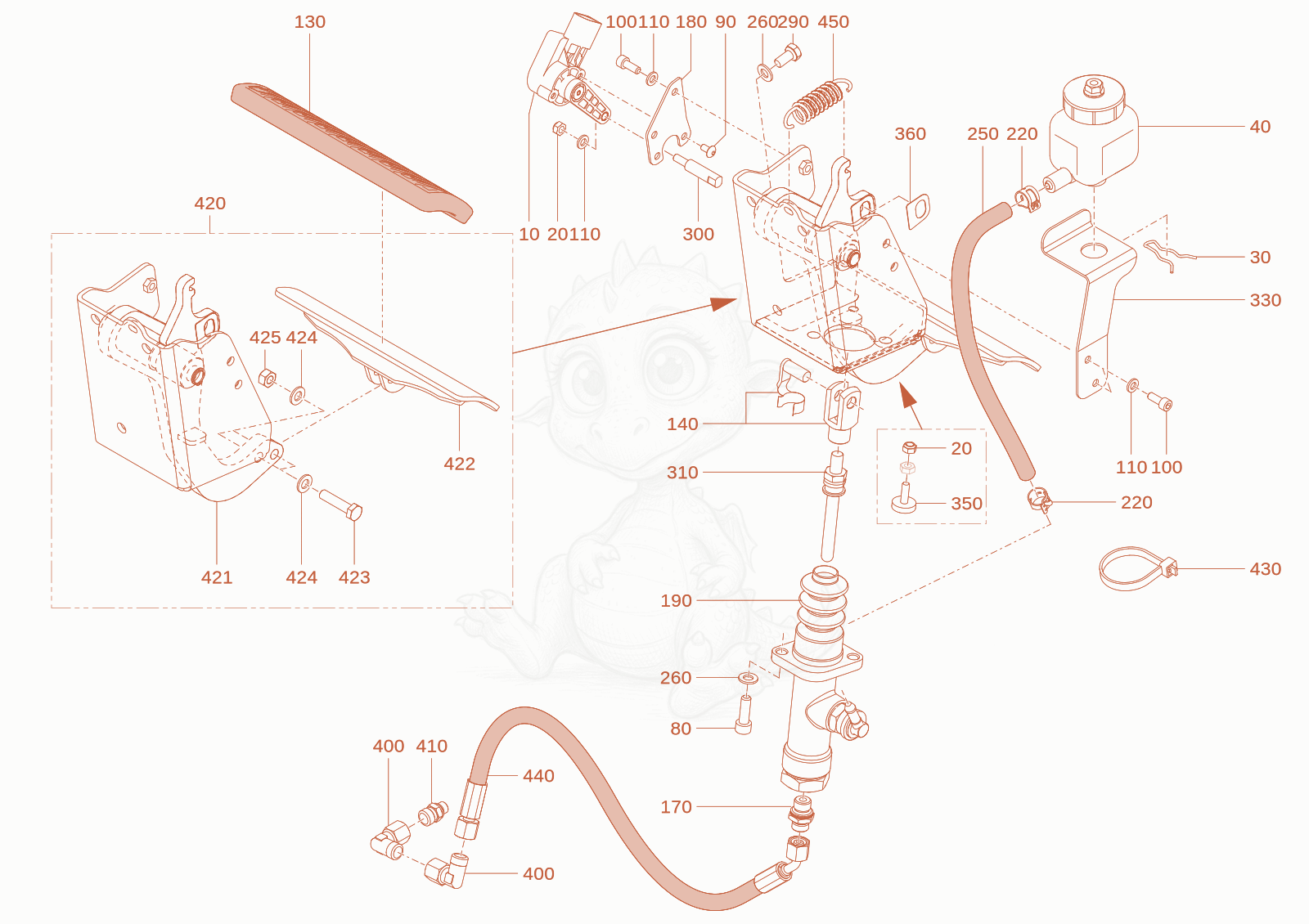

Exploded parts diagram of the brake pedal of a Wacker Neuson TH412(T01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000492198Price
    Potentiometer Angle 108° - 1000492198×1
  • 201000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 301000143655Price
    PLUG - 1000143655×1
  • 401000523616Price
    Brake fluid container w. level sensor - 1000523616×1
  • 801000022386Not stocked
    cheese head screw×2
  • 901000185907Price
    screw - 1000185907×2
  • 1001000085455Price
    allen screw M6x16-8.8 A2C - 1000085455×4
  • 1101000015430Not stocked
    u-washer×5
  • 1301000380558Not stocked
    pedal lining×1
  • 1301000494074Not stocked
    pedal lining×1
  • 1401000222571Price
    CONNECTOR-SWIVEL HEAD - 1000222571×1
  • 1701000028657Not stocked
    screw joint×1
  • 1801000565954Not stocked
    bracket×1
  • 1901000402807Not stocked
    masterbrake cylinder×1
  • 2201000392134Not stocked
    clamp×2
  • 2501000527471Price
    Fuel hose 8,0x3,0mm - 1000527471×0.33
  • 2601000015431Not stocked
    washer×5
  • 2901000019136Not stocked
    hex screw×3
  • 3001000424829Price
    Bolt - 1000424829×1
  • 3101000423912Price
    Rod - 1000423912×1
  • 3301000426782Price
    Bracket - 1000426782×1
  • 3501000213413Price
    RUBBER BUFFER - 1000213413×1
  • 3601000430292Price
    Sticker - 1000430292×2
  • 4001000000542Price
    EW08LOMD - 1000000542×2
  • 4101000028739Not stocked
    screw joint×1
  • 4201000566024Not stocked
    brake×1
  • 4211000497147Not stocked
    pedal lever×1
  • 4221000497146Not stocked
    pedal plate×1
  • 4231000085391Price
    hex screw - 1000085391×2
  • 4241000015431Not stocked
    washer×4
  • 4251000013022Not stocked
    hexagon nut×2
  • 4301000193759Price
    cable strap - 1000193759×1
  • 4401000448987Not stocked
    Hose×1
  • 4501000289774Price
    tension spring - 1000289774×1
