TH412

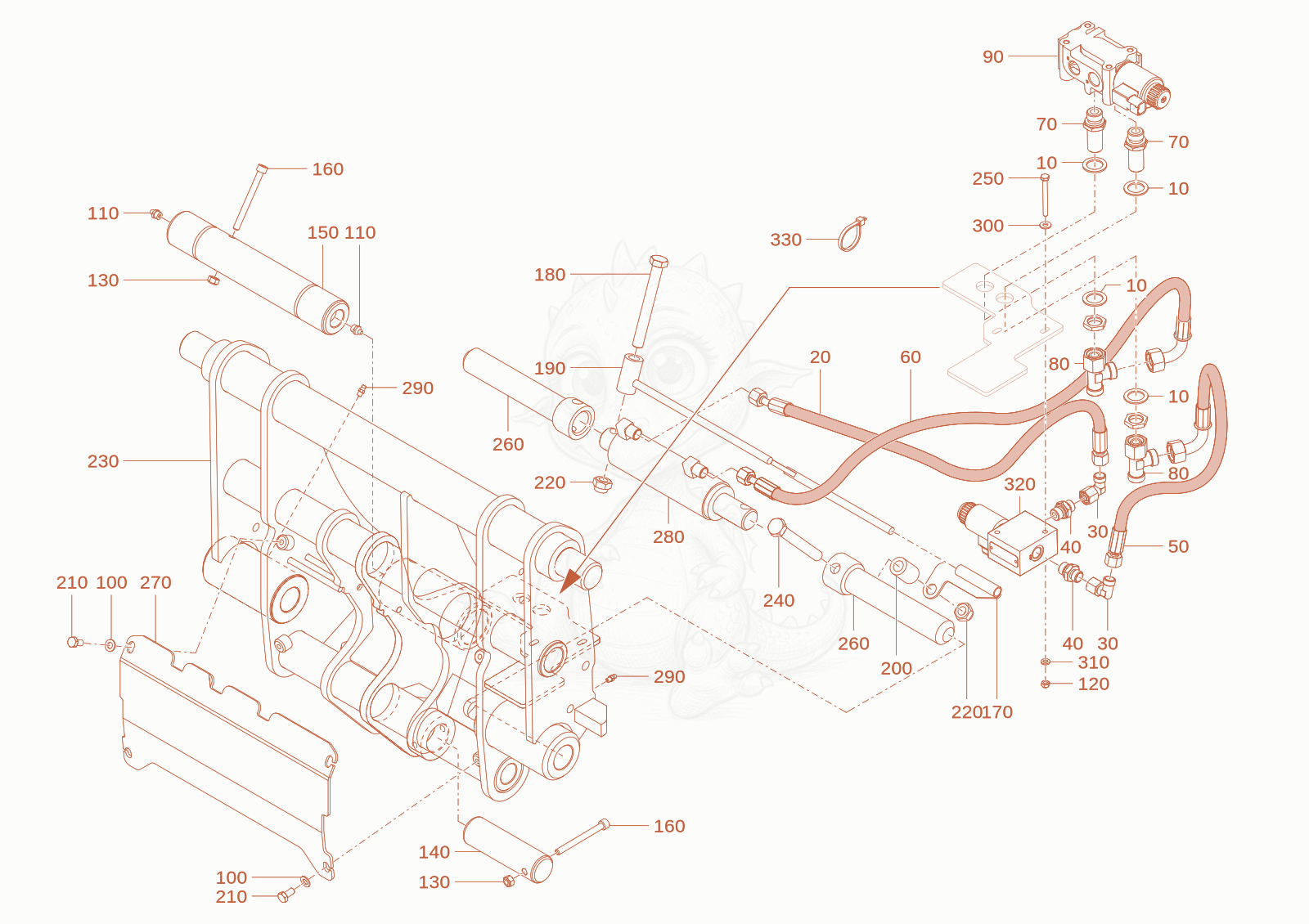

TH412(T01-01) quickhitch plate Diagram

Exploded parts diagram of the quickhitch plate of a Wacker Neuson TH412(T01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 101000449010Not stocked
    fitting disc×4
  • 201000433336Not stocked
    Hose×1
  • 301000015510Not stocked
    screw joint×2
  • 401000015491Not stocked
    screw joint×2
  • 501000428311Not stocked
    Hose×1
  • 601000428345Not stocked
    Hose×1
  • 701000251532Price
    CONNECTION-LOCK SCREW - 1000251532×2
  • 801000015539Not stocked
    screw joint×2
  • 901000283339Price
    Drivevalve 1000283339×1
  • 911000292602Price
    magnet spool - 1000292602×1
  • 921000292601Not stocked
    seal kit×1
  • 1001000015431Not stocked
    washer×4
  • 1101000050469Price
    grease nipple - 1000050469×2
  • 1201000085588Price
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 1301000013022Not stocked
    hexagon nut×2
  • 1401000187686Price
    bolt - 1000187686×1
  • 1501000464632Not stocked
    pin×1
  • 1601000223831Price
    INNER HEXAGON SCREW - 1000223831×2
  • 1701000285503Price
    guide tube - 1000285503×1
  • 1801000223581Price
    hex screw - 1000223581×1
  • 1901000478825Not stocked
    lock indicator×1
  • 2001000196350Price
    Sleeve - 1000196350×1
  • 2101000019136Not stocked
    hex screw×4
  • 2201000049060Not stocked
    hexagon nut×2
  • 2301000282095Price
    Adapterframe 1000282095×1
  • 2401000047409Not stocked
    hex screw×1
  • 2501000085312Price
    hex screw M6x60-8.8 A2C-DIN931 - 1000085312×2
  • 2601000222385Price
    Bolt 1000222385×2
  • 2701000475692Not stocked
    cover plate×1
  • 2801000230013Price
    Cylinder 1000230013×1
  • 2901000222726Price
    NIPPLE-GREASE - 1000222726×2
  • 3001000222875Price
    Washer - 1000222875×2
  • 3101000015430Not stocked
    u-washer×2
  • 3201000335644Price
    Valve - 1000335644×1
  • 3211000346390Price
    Solenoid - 1000346390×1
  • 3221000265570Price
    drive valve - 1000265570×1
  • 3231000367370Not stocked
    seal kit valve cartridge×1
  • 3301000193828Price
    cable strap - 1000193828×1
