TH412

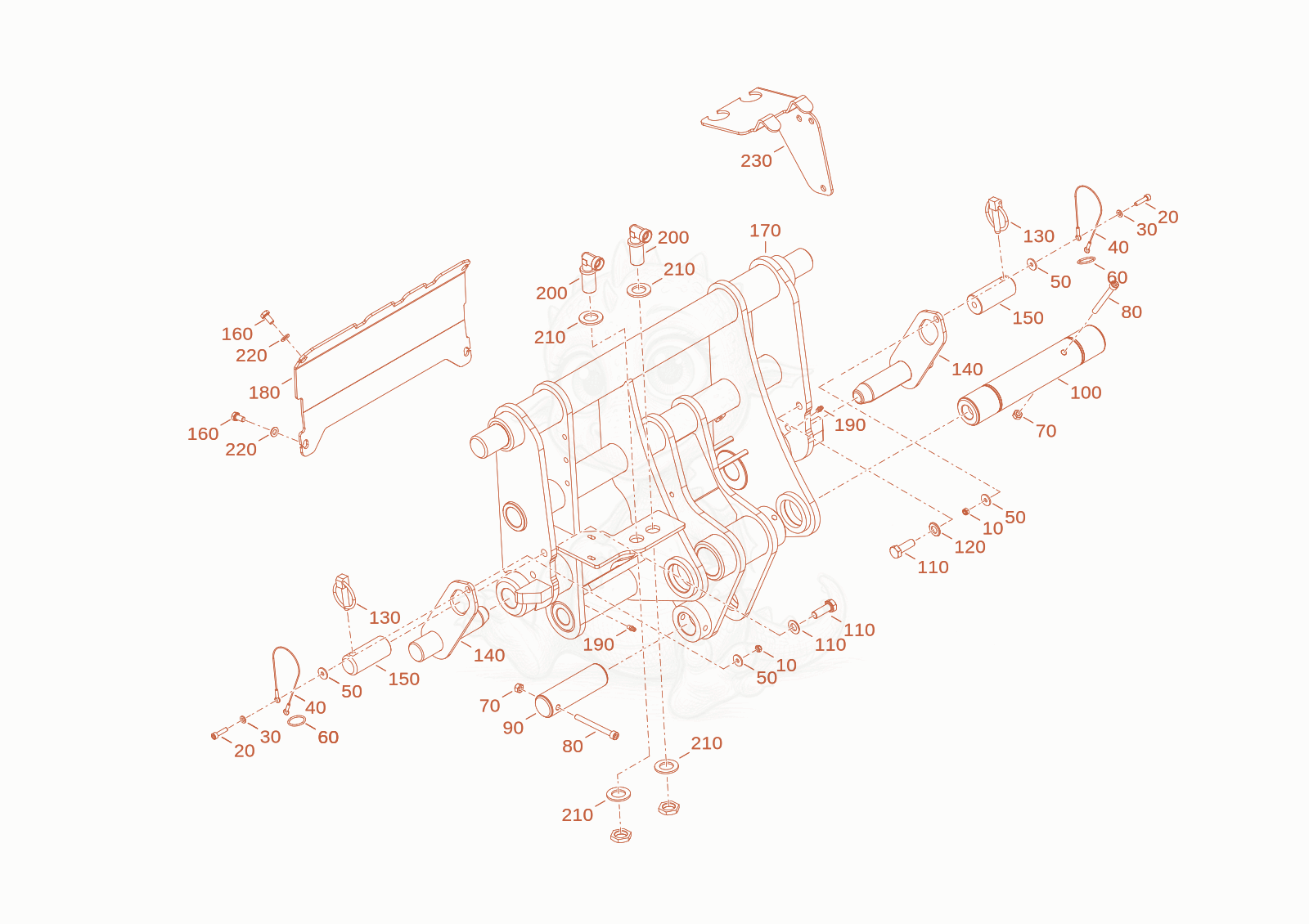

TH412(T01-01) quickhitch plate Diagram
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
- allen screw M6x25-8.8 A2C DIN912 - 1000085457×2
- 301000015430Not stockedu-washer×2
- ACTUACTION CABLE - 1000222700×2
- Washer - 1000222992×4
- key ring - 1000193637×2
- 701000013022Not stockedhexagon nut×2
- INNER HEXAGON SCREW - 1000223831×2
- bolt - 1000187686×1
- 1001000464632Not stockedpin×1
- hex screw - 1000085404×2
- 1201000049219Not stockedwasher×2
- 1301000050586Not stockedcotter pin×2
- Bolt 1000261575×2
- bolt - 1000268233×2
- 1601000019136Not stockedhex screw×4
- Adapterframe 1000282095×1
- 1801000475692Not stockedcover plate×1
- NIPPLE-GREASE - 1000222726×2
- 2001000028318Not stockedlock screw connection×2
- washer 23 - 1000082620×4
- 2201000015431Not stockedwasher×4
- 2301000435467Not stockedfasten pin×1
