TH412

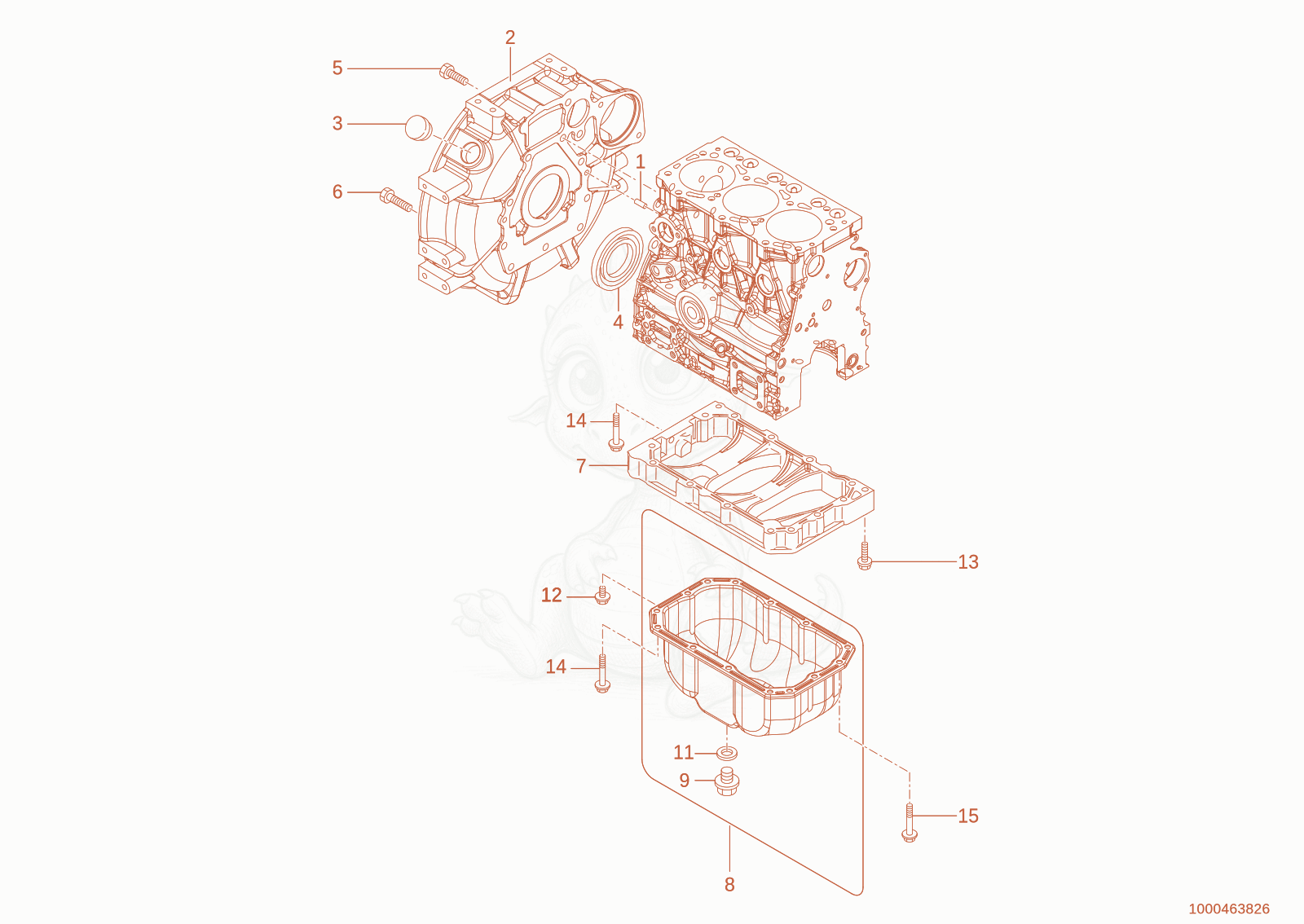

TH412(T01-01) oil sump Diagram

Exploded parts diagram of the oil sump of a Wacker Neuson TH412(T01-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000102791Price
    fitting pin - 1000102791×2
  • 21000463823Not stocked
    bulb×1
  • 31000064550Not stocked
    rubber plug×1
  • 41000463825Price
    BUSHING - 1000463825×1
  • 51000107760Price
    SCREW - 1000107760×8
  • 61000107761Price
    SCREW - 1000107761×3
  • 71000312570Price
    Intermediatepiece 1000312570×1
  • 81000577839Not stocked
    oilsump×1
  • 91000134824Price
    LOCK SCREW - 1000134824×1
  • 111000071058Not stocked
    seal ring×1
  • 121000085173Price
    hex screw - 1000085173×1
  • 131000126868Price
    SCREW - 1000126868×1
  • 141000107492Price
    SCREW - 1000107492×11
  • 151000085197Price
    SCREW - 1000085197×3
