TH412

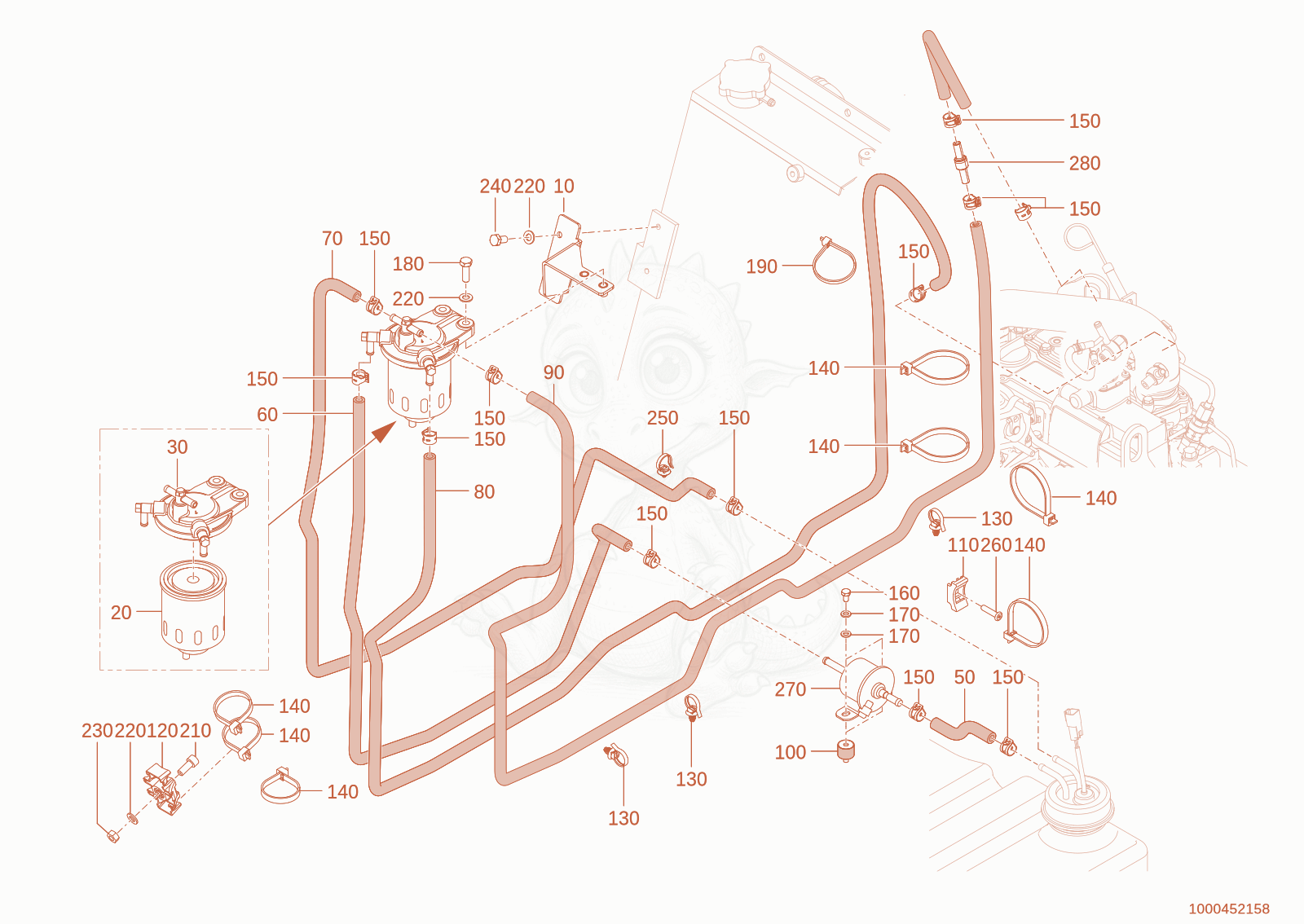

TH412(T01-01) fuel system Diagram
- bracket - 1000458716×1
- 101000509130Not stockedbracket×1
- adapter plate cooler - 1000525163×1
- 201000379275Not stockedfuel filter×1
- 301000452685Not stockedfuel filter×1
- Fuel hose 8,0x3,0mm - 1000527471×0.13
- Fuel hose 8,0x3,0mm - 1000527471×1.35
- Fuel hose 8,0x3,0mm - 1000527471×1.65
- Fuel hose 8,0x3,0mm - 1000527471×2.5
- Fuel hose 8,0x3,0mm - 1000527471×2.6
- 1001000328578Not stockedrubber buffer×2
- sockets - 1000282739×2
- Base - 1000333302×1
- 1301000375997Not stockedfixing bracket×9
- cable strap - 1000193759×10
- 1501000392134Not stockedclamp×12
- HEX SCREW - 1000085381×2
- 1701000015430Not stockedu-washer×4
- 1801000015343Not stockedhex screw×2
- cable strap - 1000193828×2
- 2101000019593Not stockedcheese head screw×1
- 2201000015431Not stockedwasher×5
- 2301000015406Not stockedhexagon nut×1
- 2401000019136Not stockedhex screw×2
- 2501000375997Not stockedfixing bracket×1
- Rivet - 1000356352×2
- 2701000368090Not stockedfuel pump×1
- Diesel non return valve - 1000269379×1
