EW100-2

EW100-2 LUFFING BOOM Diagram

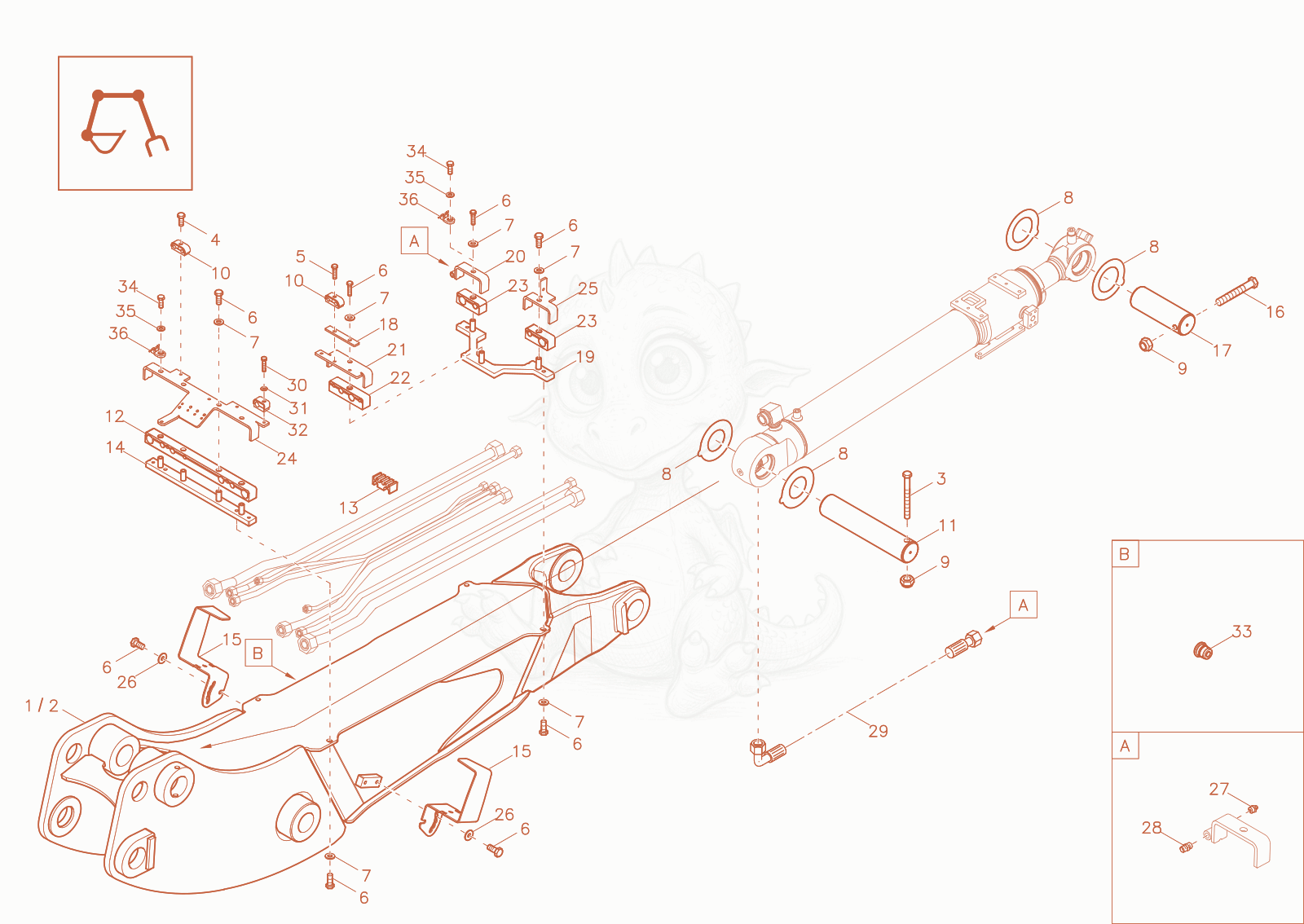

Exploded parts diagram of the LUFFING BOOM of a Wacker Neuson EW100-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000503133Price
    beam - 1000503133×1
  • 21000503134Price
    beam - 1000503134×1
  • 31000085364Price
    HEX SCREW - 1000085364×1
  • 41000085390Price
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×2
  • 51000085391Price
    hex screw - 1000085391×2
  • 61000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×13
  • 71000094974Price
    washer M10-DIN134 - 1000094974×11
  • 81000338158Price
    shim - 1000338158×4
  • 91000357536Not stocked
    hexagon nut×2
  • 101000401747Price
    clamp - 1000401747×4
  • 111000440140Not stocked
    pin×1
  • 121000447765Not stocked
    clamp×1
  • 131000447850Price
    rubber - 1000447850×1
  • 141000502337Not stocked
    clamp plate×1
  • 151000501580Not stocked
    plate×2
  • 161000114563Price
    HEX SCREW - 1000114563×1
  • 171000440132Not stocked
    pin×1
  • 181000471162Price
    shim - 1000471162×1
  • 191000502338Not stocked
    clamp plate×1
  • 201000477561Not stocked
    clamp plate×1
  • 211000477562Not stocked
    clamp plate×1
  • 221000477571Not stocked
    clamp×1
  • 231000477572Not stocked
    clamp×2
  • 241000482381Not stocked
    clamp plate×1
  • 251000482281Not stocked
    clamp plate×1
  • 261000015442Not stocked
    u-washer×4
  • 271000082805Price
    grease nipple M10x1 - 1000082805×1
  • 281000083092Price
    GE06LLM10X1A3CX - 1000083092×1
  • 291000501961Not stocked
    Hose×1
  • 301000085392Price
    hex screw M8x40-8.8 A2C DIN933 - 1000085392×2
  • 311000015448Not stocked
    washer×2
  • 321000375102Not stocked
    clamp×2
  • 331000327361Not stocked
    plug×2
  • 341000015364Not stocked
    hex screw×2
  • 351000094974Price
    washer M10-DIN134 - 1000094974×2
  • 361000373433Not stocked
    sockets×2
