EW100-2

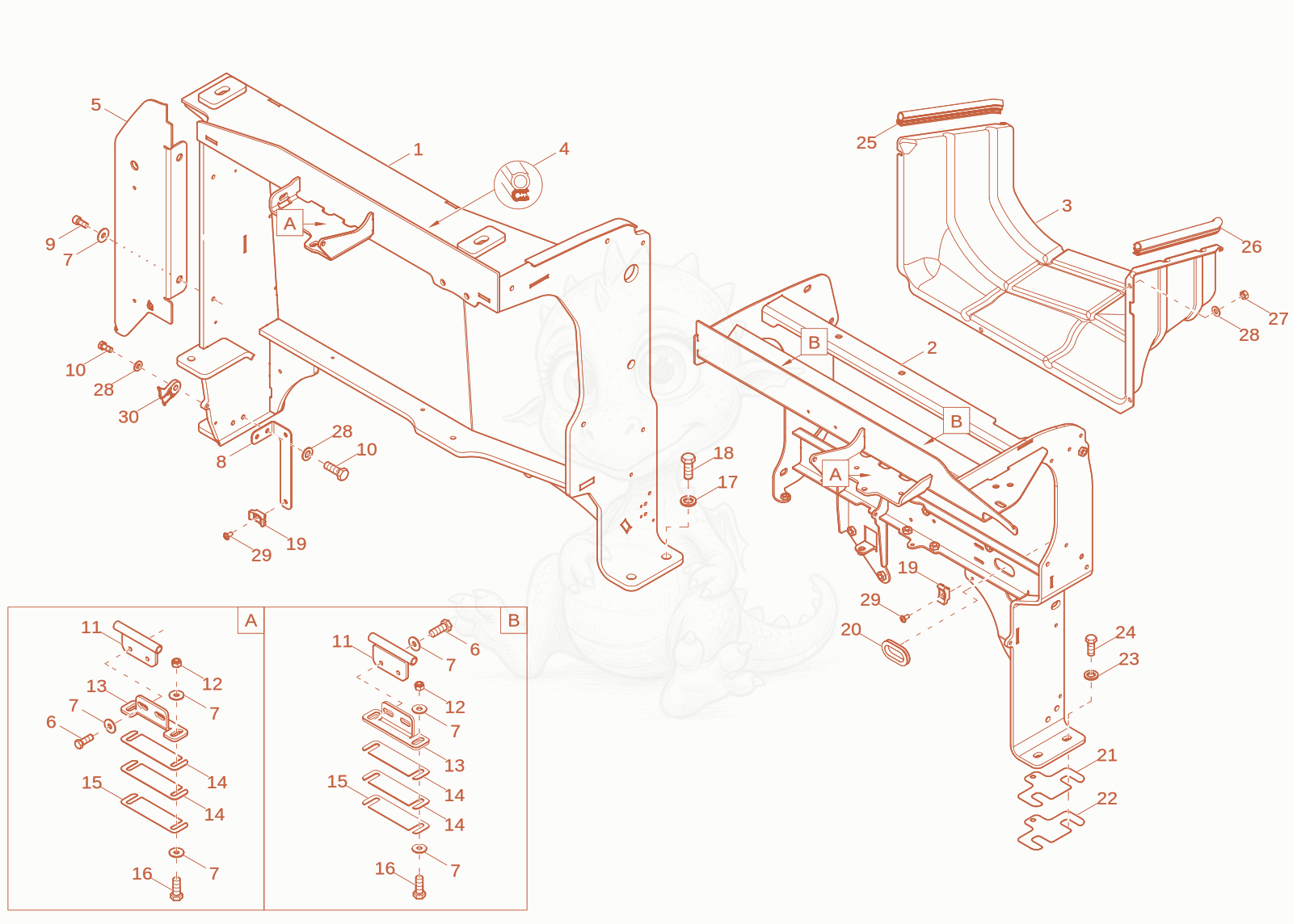

EW100-2 REAR WALL Diagram
- 11000557385Not stockedrear plate×1
- 21000479594Not stockedmounting frame×1
- Scoop - 1000466553×1
- seal - 1000343984×2.6
- 51000503379Not stockedplate×1
- 61000015364Not stockedhex screw×8
- 71000015442Not stockedu-washer×26
- 81000502692Not stockedbracket hose×1
- cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×2
- 101000013008Not stockedhex screw×3
- HINGE - 1000307270×4
- 121000357535Not stockedhexagon nut×8
- 131000307269Not stockedhinge angle×4
- 141000329562Not stockedplate×8
- 151000329563Not stockedplate×4
- 6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×8
- nordock washer NL16x30,7 - 1000094994×4
- hex screw - 1000085428×4
- sockets - 1000282739×3
- edge protection - 1000154222×1
- plate - 1000480176×1
- plate - 1000480178×1
- Nord-Lock disc NL12x25,4 - 1000094970×5
- 241000015347Not stockedhex screw×5
- RUBBER PROFILE - 1000098198×0.4
- RUBBER PROFILE - 1000098198×0.4
- 271000013021Not stockedhexagon nut×4
- 281000015448Not stockedwasher×7
- 291000326519Not stockedflat head screw×3
- 301000378385Not stockedsockets×1
