EW100-2

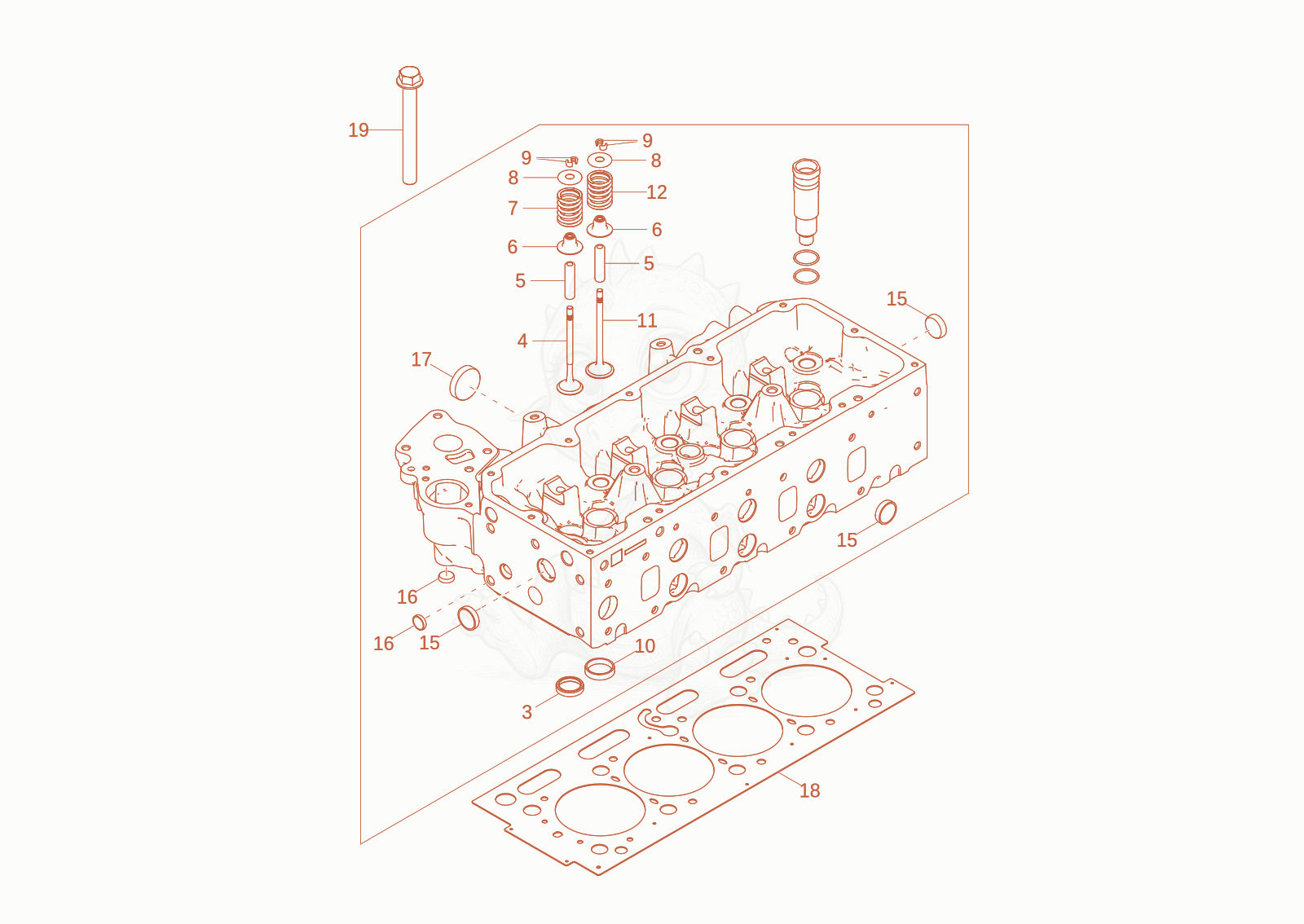

EW100-2 CYLINDER HEAD Diagram

Exploded parts diagram of the CYLINDER HEAD of a Wacker Neuson EW100-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 31000448487Not stocked
    valve seat×8
  • 41000448492Not stocked
    exhaust valve×8
  • 51000447863Not stocked
    guide×16
  • 61000447949Not stocked
    valve shaft seal×16
  • 71000447924Price
    spring - 1000447924×8
  • 81000256726Price
    VALVE - 1000256726×16
  • 91000256727Price
    CLAMP - 1000256727×32
  • 101000448491Not stocked
    valve seat×8
  • 111000448452Not stocked
    intake valve×8
  • 121000447923Price
    spring - 1000447923×8
  • 151000256718Price
    LOCK PLUG - 1000256718×8
  • 161000256720Price
    LOCK PLUG - 1000256720×2
  • 171000256721Price
    LOCK PLUG - 1000256721×1
  • 181000448350Not stocked
    cylinder head gasket×1
  • 181000502156Not stocked
    cylinder head gasket×1
  • 181000502157Not stocked
    cylinder head gasket×1
  • 191000448108Price
    screw - 1000448108×10
