EW100-2

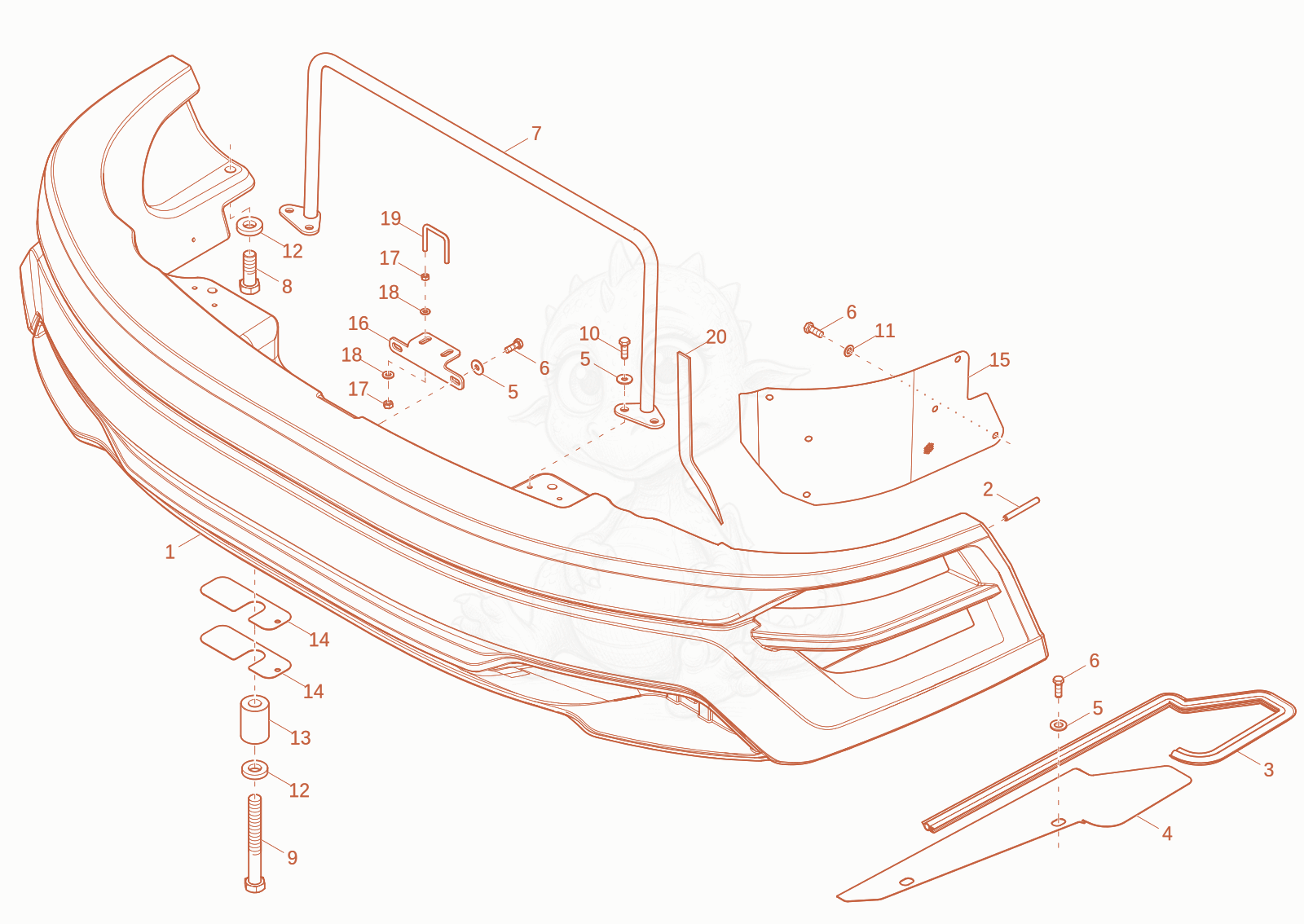

EW100-2 FENDER Diagram
- 11000488733Not stockedbumper×1
- 21000049781Not stockedcotter pin×1
- rubber profile 1,5-3mm - 1000098164×1.3
- trim - 1000488732×1
- 51000015442Not stockedu-washer×8
- 61000015364Not stockedhex screw×10
- 71000440743Not stockedholder handle×1
- 81000363249Not stockedhex screw×2
- 91000355951Not stockedhex screw×2
- Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
- washer M10-DIN134 - 1000094974×6
- washer - 1000486171×4
- bushing - 1000486170×2
- shim - 1000469651×4
- screen - 1000488731×1
- bracket - 1000459955×1
- 171000013021Not stockedhexagon nut×4
- 181000015448Not stockedwasher×4
- closing handle - 1000143710×1
- seal - 1000489077×1
