EW100-2

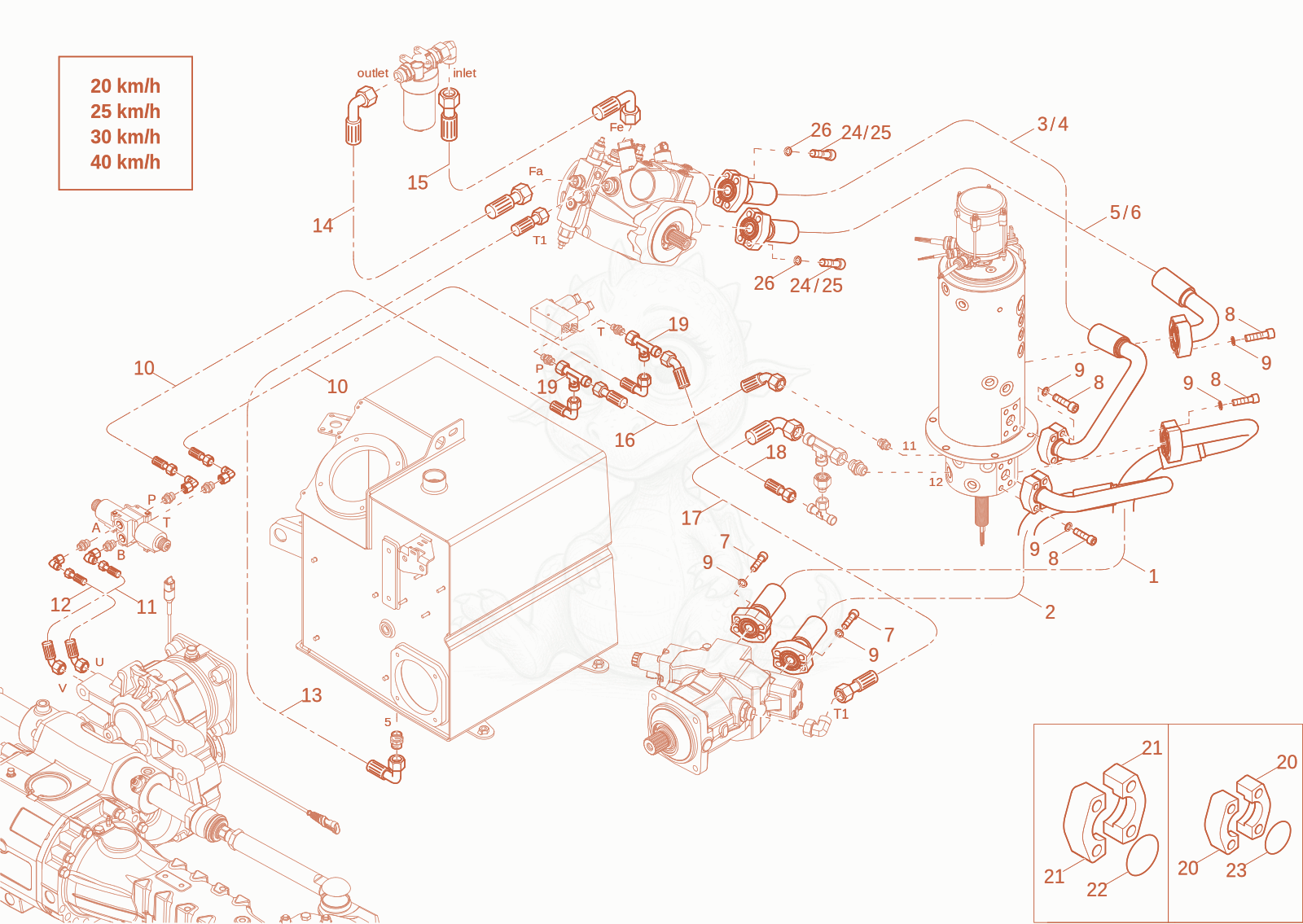

EW100-2 Transmission 20-40km/h Installation(opt) Diagram

Exploded parts diagram of the Transmission 20-40km/h Installation(opt) of a Wacker Neuson EW100-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000554563Not stocked
    hose×1
  • 21000554564Not stocked
    hose×1
  • 31000554574Not stocked
    hose×1
  • 41000554572Not stocked
    hose×1
  • 51000554575Not stocked
    hose×1
  • 61000554573Not stocked
    hose×1
  • 71000015357Not stocked
    cheese head screw×8
  • 81000328078Price
    SCREW - 1000328078×16
  • 91000015450Not stocked
    northlock disc×24
  • 101000471499Not stocked
    Hose×2
  • 111000474016Not stocked
    Hose×1
  • 121000480572Not stocked
    Hose×1
  • 131000488842Not stocked
    Hose×1
  • 141000488825Not stocked
    Hose×1
  • 151000488828Not stocked
    Hose×1
  • 161000472159Not stocked
    Hose×1
  • 171000472177Not stocked
    Hose×1
  • 181000480571Not stocked
    Hose×1
  • 191000085089Price
    EL10LOMDA3C - 1000085089×2
  • 201000501398Price
    Flange - 1000501398×2
  • 211000501397Price
    Flange - 1000501397×2
  • 221000454286Price
    O-ring - 1000454286×1
  • 231000454287Price
    O-ring - 1000454287×1
  • 241000328078Price
    SCREW - 1000328078×8
  • 251000085503Price
    cheese head screw - 1000085503×8
  • 261000015449Not stocked
    northlock disc×8
