EW100-2

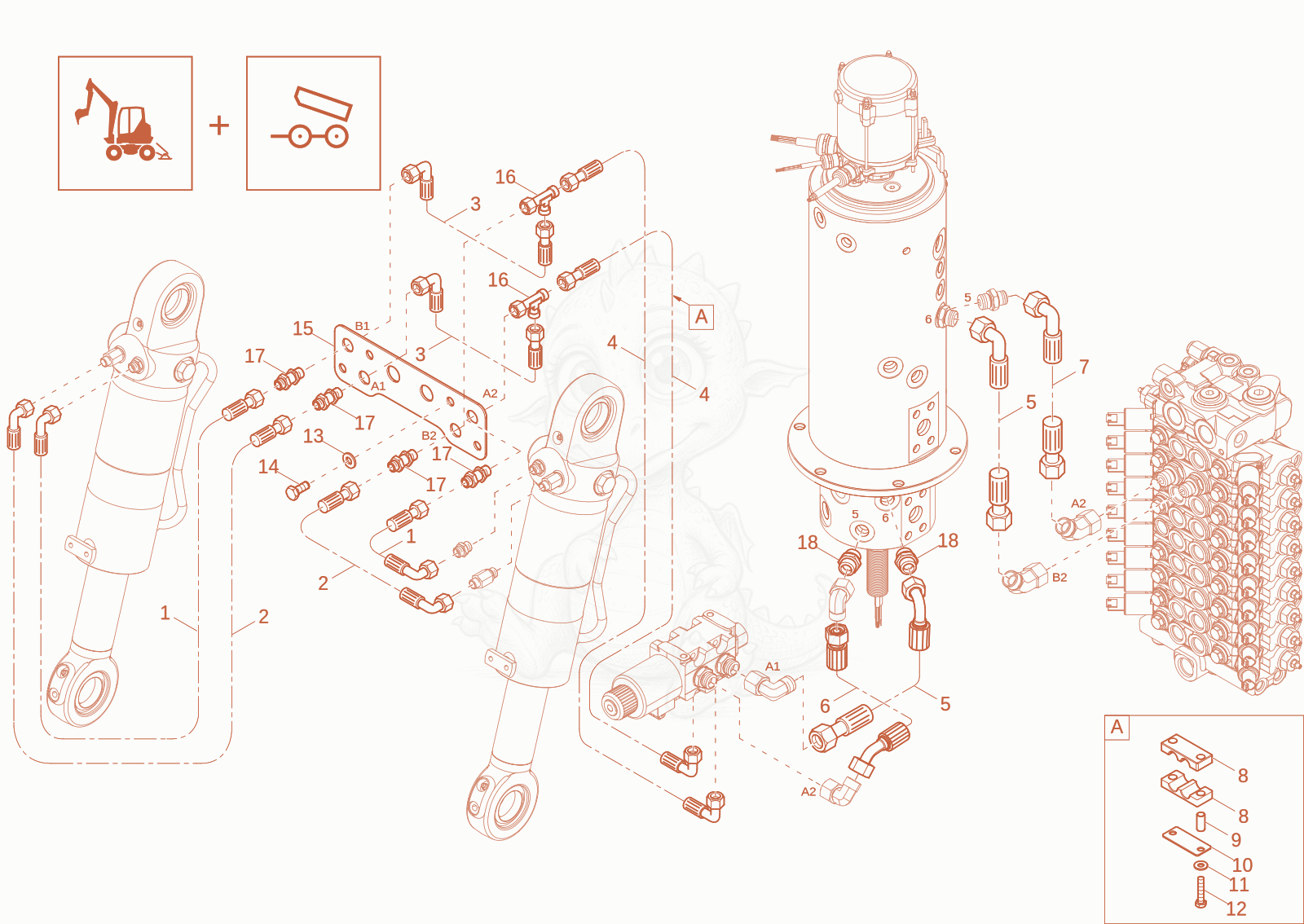

EW100-2 DOZER BLADE OPERATION (Option) Diagram

Exploded parts diagram of the DOZER BLADE OPERATION (Option) of a Wacker Neuson EW100-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000471890Not stocked
    Hose×2
  • 21000471889Not stocked
    Hose×2
  • 31000471901Not stocked
    Hose×2
  • 41000508540Not stocked
    Hose×2
  • 51000471963Not stocked
    Hose×2
  • 61000471424Not stocked
    Hose×1
  • 71000471968Not stocked
    Hose×1
  • 81000399873Not stocked
    rubber piece×2
  • 91000409978Price
    sleeve - 1000409978×2
  • 101000399874Price
    plate - 1000399874×1
  • 111000015448Not stocked
    washer×2
  • 121000015359Not stocked
    hex screw×2
  • 131000094974Price
    washer M10-DIN134 - 1000094974×4
  • 141000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 151000515537Not stocked
    bushing tube×1
  • 161000015516Price
    EL12LOMDA3C - 1000015516×2
  • 171000021041Not stocked
    screw joint×4
  • 181000015494Not stocked
    screw joint×2
