EW100-2

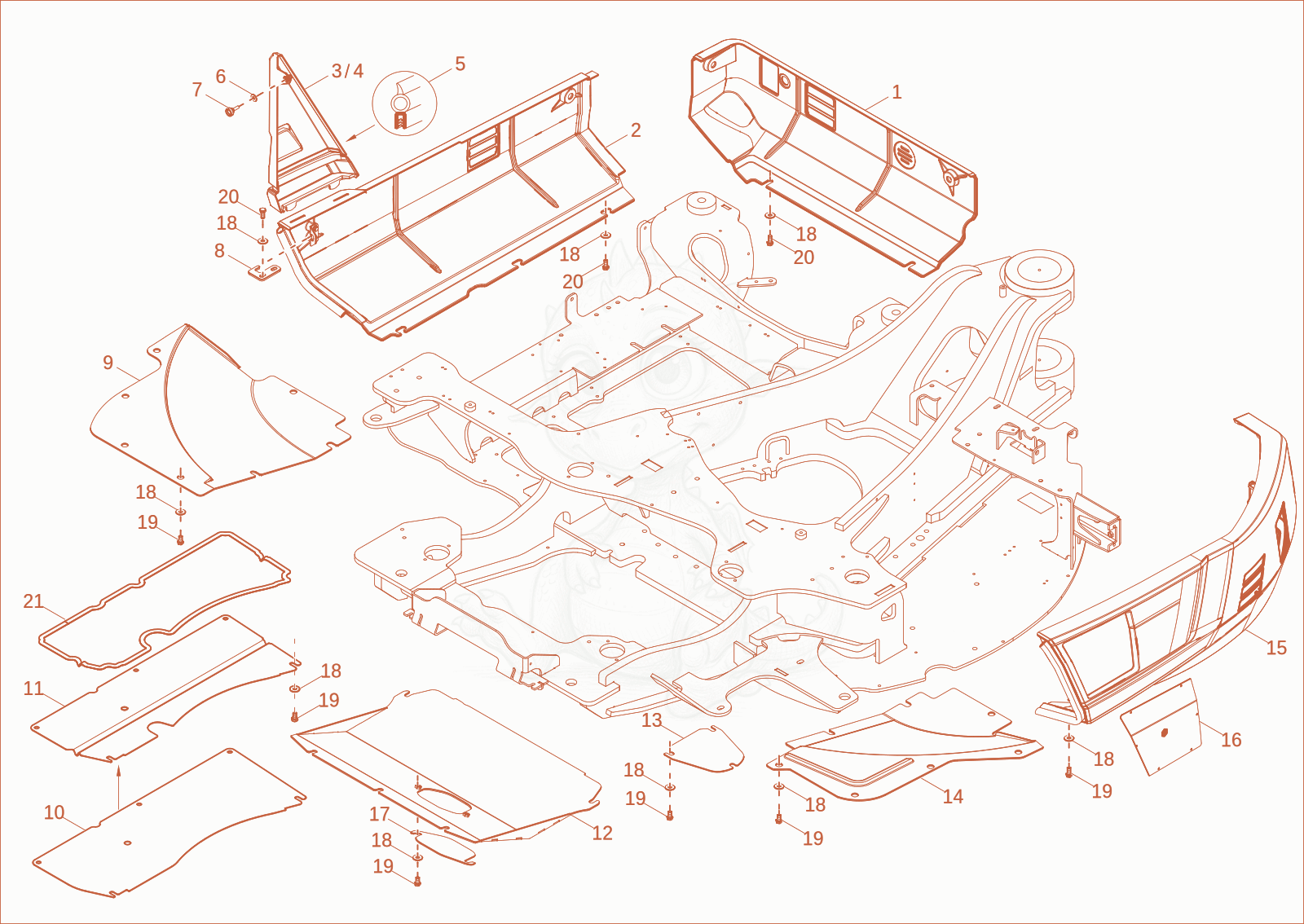

EW100-2 chassis cover Diagram

Exploded parts diagram of the chassis cover of a Wacker Neuson EW100-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000465309Not stocked
    front trim×1
  • 21000465307Price
    COVER - 1000465307×1
  • 31000465305Price
    Cover - 1000465305×1
  • 41000525652Not stocked
    cover×1
  • 51000017845Not stocked
    rubber profile×0.8
  • 61000013027Not stocked
    washer×1
  • 71000278207Price
    grooved screw - 1000278207×1
  • 81000476223Price
    plate - 1000476223×1
  • 91000489214Price
    COVER - 1000489214×1
  • 101000491042Not stocked
    cover×1
  • 111000572709Not stocked
    cover×1
  • 121000469845Price
    Cover - 1000469845×1
  • 131000503632Not stocked
    cover×1
  • 141000489218Price
    COVER - 1000489218×1
  • 151000465306Price
    COVER - 1000465306×1
  • 161000474162Not stocked
    perfored plate×1
  • 171000469848Price
    cover - 1000469848×1
  • 181000092303Price
    Washer 10,5 St A2C - 1000092303×44
  • 191000085411Price
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×29
  • 201000015345Price
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×15
  • 211000098196Price
    seal strap foam 10x15 - 1000098196×2.3
