DT15

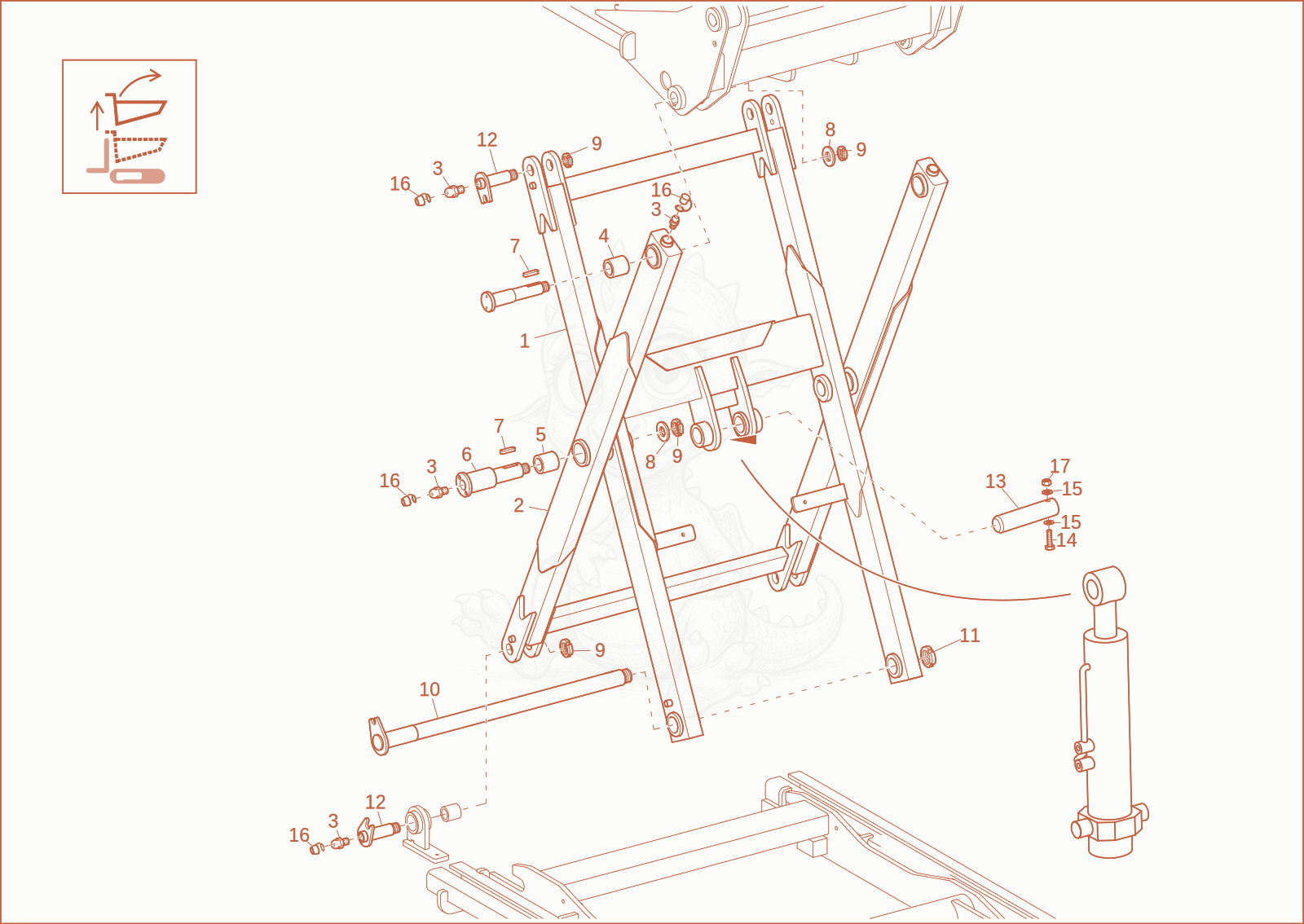

DT15 Scissor Lift (Option) Diagram
- Liftarm 1000283698×1
- Liftarm 1000283699×1
- LUBRICATION NIPPLE - 1000282335×8
- BUSHING - 1000282358×2
- BUSHING - 1000282177×2
- PIN - 1000283700×2
- Keys (Ign.) Mitts 0512100624 - 1000282395×2
- WASHER - 1000274784×4
- set nut - 1000282396×8
- Pin 1000283711×1
- NUT - 1000283712×1
- PIN - 1000283713×4
- PIN - 1000283714×1
- 141000022334Not stockedhex screw×1
- 151000015431Not stockedwasher×2
- PROTECTION CAP - 1000282746×8
- hexagon nut - 1000269279×1
