DT15

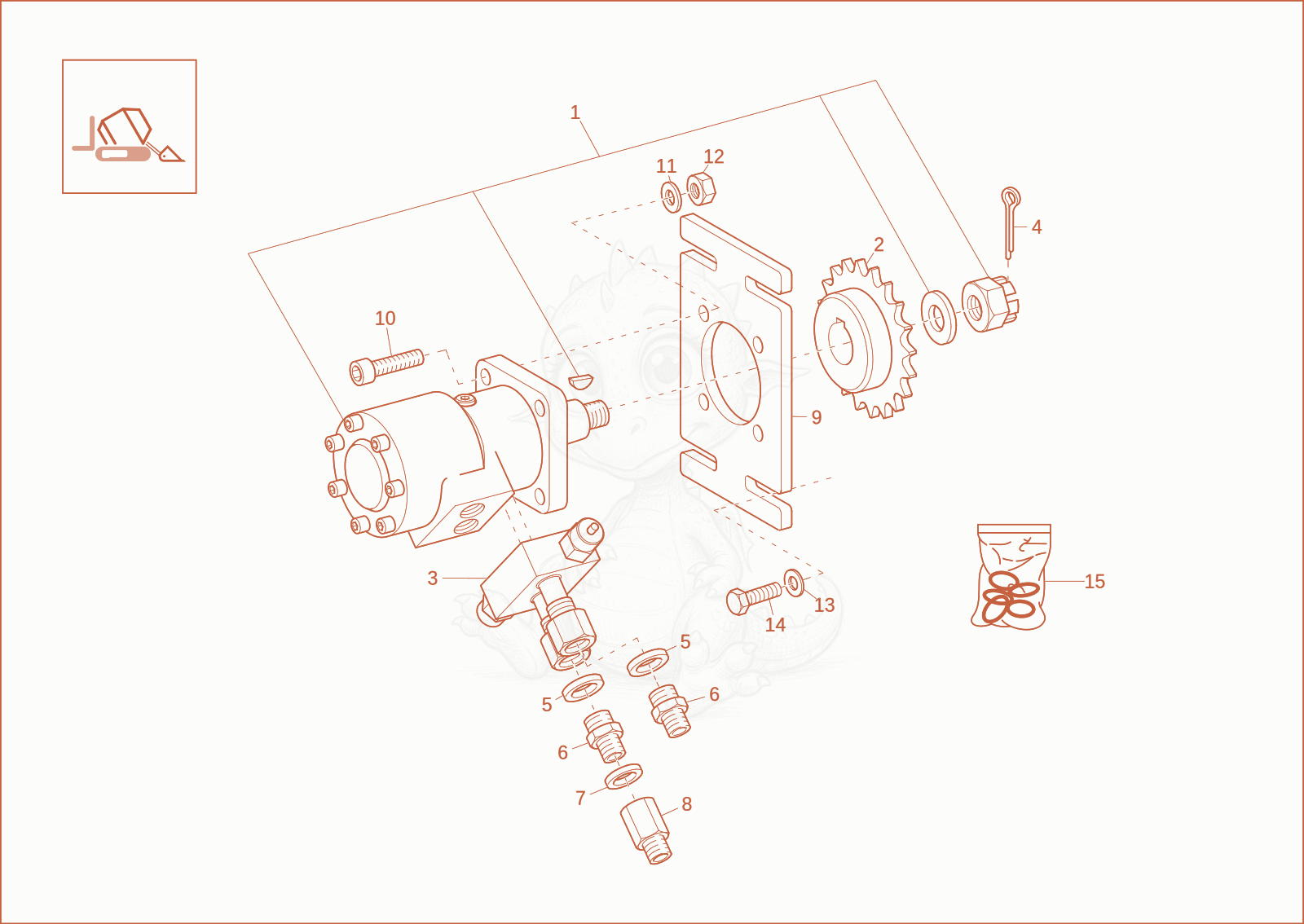

DT15 swivel drive Diagram
- Hydraulicmotor 1000284289×1
- PINION - 1000284280×1
- VALVE - 1000284291×1
- COTTERPIN - 1000262351×1
- seal plate - 1000271906×2
- Adapter 3/4"BSP-1/2"BSP - 1000281845×2
- copper ring - 1000129428×1
- extension - 1000271799×1
- Bracket 1000284292×1
- cheese head screw - 1000085477×4
- TENSION DISC - 1000271025×4
- 121000020127Not stockedhexagon nut×4
- Washer - 1000270734×4
- 141000015364Not stockedhex screw×4
- SEAL KIT - 1000284290×1
