DT15

DT15 fuel system Diagram

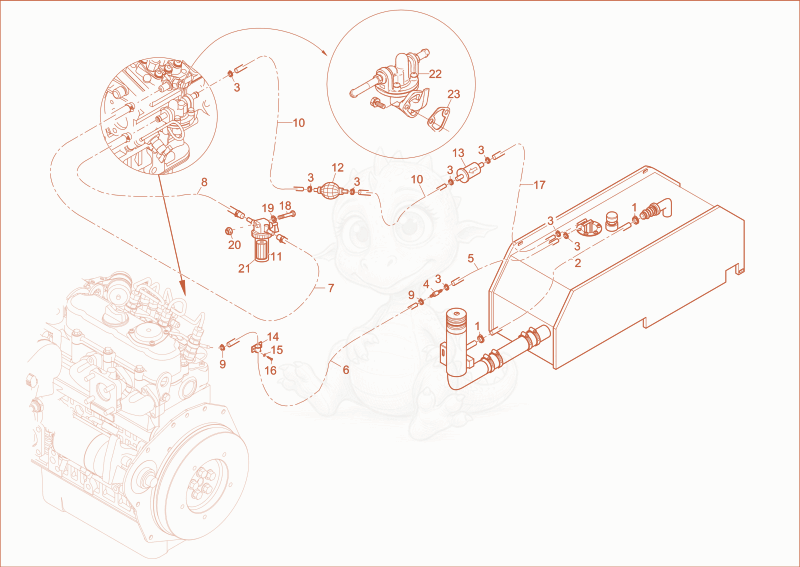

Exploded parts diagram of the fuel system of a Wacker Neuson DT15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000274186Price
    CLAMP - 1000274186×2
  • 21000274188Not stocked
    fuel line×1
  • 31000273065Price
    hose clamp - 1000273065×8
  • 41000274222Price
    SCREW JOINT - 1000274222×1
  • 51000328901Not stocked
    fuel line×1
  • 61000273070Price
    fuel pipe - 1000273070×1
  • 71000273066Price
    fuel line - 1000273066×1
  • 81000274203Price
    FUEL LINE - 1000274203×1
  • 91000273069Price
    hose clamp - 1000273069×2
  • 101000274204Price
    FUEL LINE - 1000274204×2
  • 111000272188Price
    fuel filter - 1000272188×1
  • 121000274205Price
    hand pump - 1000274205×1
  • 131000274209Price
    Fuel filter - 1000274209×1
  • 141000273202Price
    CLAMP - 1000273202×1
  • 151000015431Not stocked
    washer×1
  • 161000019136Not stocked
    hex screw×1
  • 171000274210Price
    FUEL LINE - 1000274210×1
  • 181000047672Not stocked
    hex screw×1
  • 191000030951Not stocked
    spring washer×1
  • 201000269279Price
    hexagon nut - 1000269279×1
  • 211000279991Price
    filter - 1000279991×1
  • 225200018120Not stocked
    fuel pump×1
  • 231000003600Not stocked
    engine gasket×1
