DT15

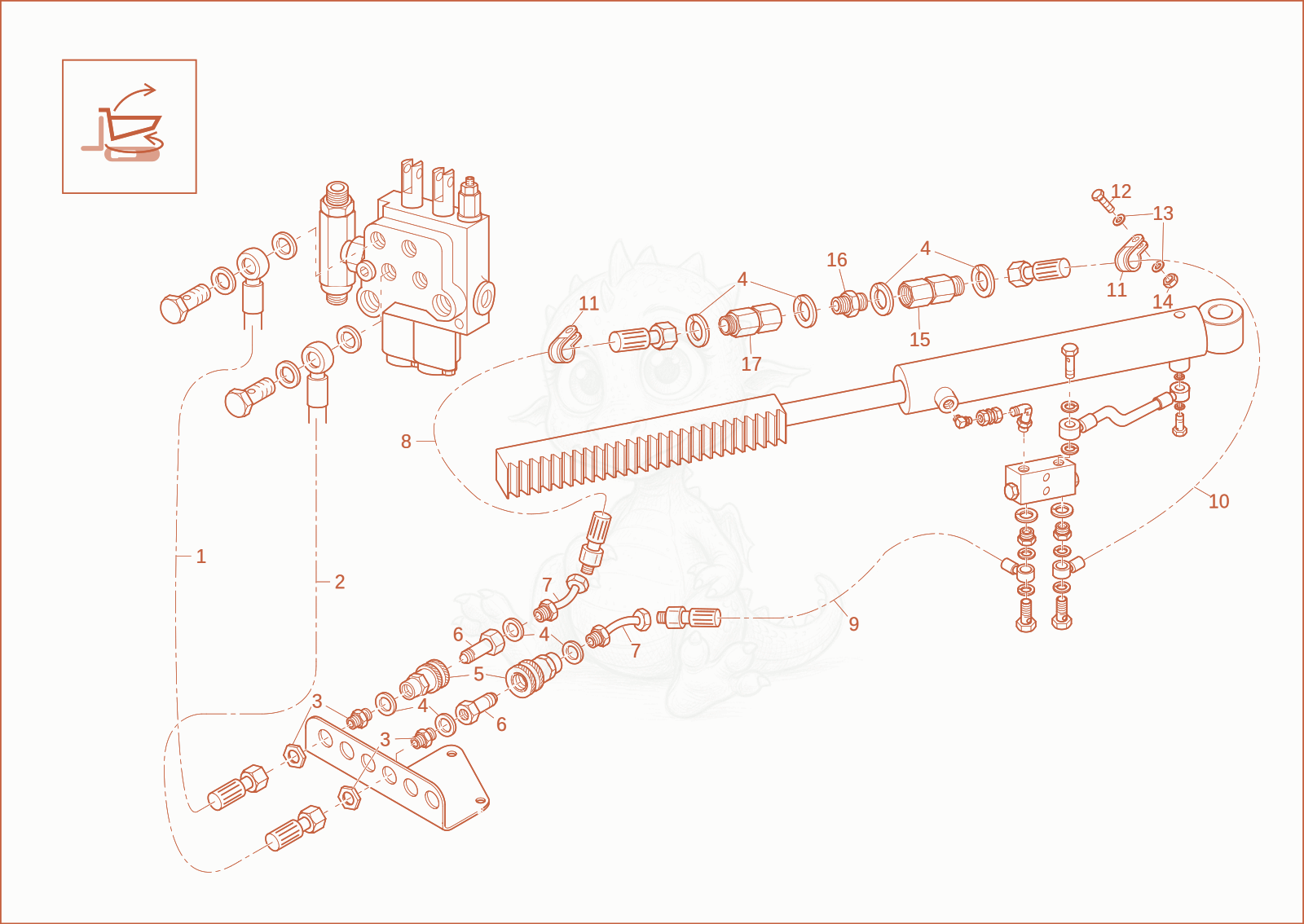

DT15 BOOM OFFSET CYLINDER INSTALLATION Diagram
- SLHYDR 2SC 6,0RN1/40 DK1/490 L1100 0 - 1000270966×1
- SLHYDR 2SC 6,0RN1/40 DK1/490 L900,0 0 - 1000270962×1
- SCREW JOINT - 1000274229×2
- copper ring - 1000083485×8
- QUICK LOCK COUPLING - 1000274241×2
- QUICK LOCK COUPLING - 1000274243×2
- SCREW JOINT - 1000274244×2
- SLHYDR 2SC 6,0DK1/40 DK1/40 L800,0 0 - 1000275936×1
- SLHYDR 2SC 6,0RN1/40 DK1/40 L1100 0 - 1000275937×1
- SLHYDR 2SC 6,0RN1/40 DK1/40 L400,0 0 - 1000275935×1
- CLAMP - 1000273202×2
- 121000018400Not stockedhex screw×2
- 131000015430Not stockedu-washer×4
- HEXAGON NUT - 1000269276×2
- valve - 1000274277×1
- DOUBLE NIPPLE - 1000271298×1
- valve - 1000274245×1
