DT15

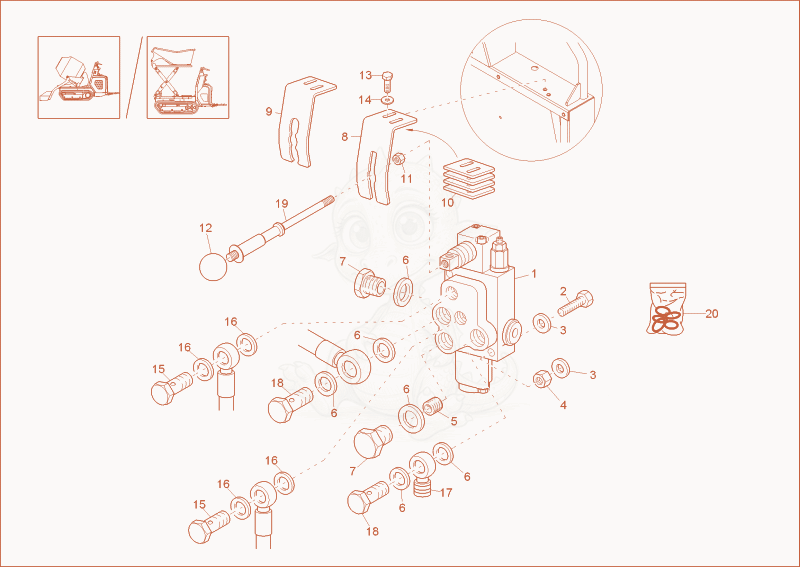

DT15 OPERATING VALVE 3 (OPTION) Diagram

Exploded parts diagram of the OPERATING VALVE 3 (OPTION) of a Wacker Neuson DT15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000273157Price
    Distributorblock 1000273157×1
  • 21000085312Price
    hex screw M6x60-8.8 A2C-DIN931 - 1000085312×2
  • 31000015430Not stocked
    u-washer×4
  • 41000269276Price
    HEXAGON NUT - 1000269276×2
  • 51000274342Price
    PLUG - 1000274342×1
  • 61000129428Price
    copper ring - 1000129428×6
  • 71000270658Price
    LOCK PLUG - 1000270658×2
  • 81000284121Price
    Lever Lock (6001AC) - 1000284121×1
  • 91000284515Price
    Lever Lock (6001AC) - 1000284515×1
  • 101000284123Price
    distance piece - 1000284123×4
  • 111000015407Not stocked
    hexagon nut×1
  • 121000273116Price
    BALL HANDLE - 1000273116×1
  • 131000018400Not stocked
    hex screw×2
  • 141000383668Price
    washer - 1000383668×2
  • 151000270650Price
    banjo bolt - 1000270650×2
  • 161000083485Price
    copper ring - 1000083485×2
  • 171000273043Price
    CONNECTION PIECE - 1000273043×1
  • 181000274319Price
    BANJO BOLT - 1000274319×3
  • 191000284122Price
    lever - 1000284122×1
  • 201000276031Price
    SEAL KIT - 1000276031×1
