DT15

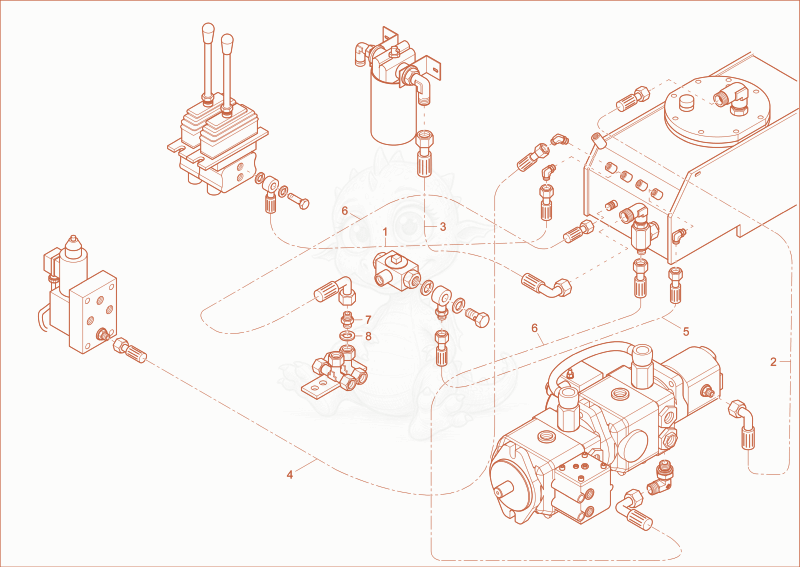

DT15 TANK LINE INSTALLATION Diagram

Exploded parts diagram of the TANK LINE INSTALLATION of a Wacker Neuson DT15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000270950Price
    SLHYDR 1SC 6,0RN1/40 DK1/40 L1100 0 - 1000270950×1
  • 21000270975Price
    SLHYDR 1SC 20 DK3/40 DK3/490 L480,0 0 - 1000270975×1
  • 31000270985Price
    SLHYDR 1SC-20 DK3/40 DK3/490 L1200 0 - 1000270985×1
  • 41000270874Price
    SLHYDR 1SC 6,0DK1/40 DK1/40 L700,0 0 - 1000270874×1
  • 51000270989Price
    SLHYDR 1SC 6,0DK1/40 DK1/40 L800,0 0 - 1000270989×1
  • 61000270984Price
    SLHYDR 1SC 12 DK1/20 DK1/290 L380,0 0 - 1000270984×2
  • 71000281845Price
    Adapter 3/4"BSP-1/2"BSP - 1000281845×1
  • 81000273278Price
    SEAL RING - 1000273278×1
