DT15

DT15 TILT CYLINDER INSTALLATION Diagram

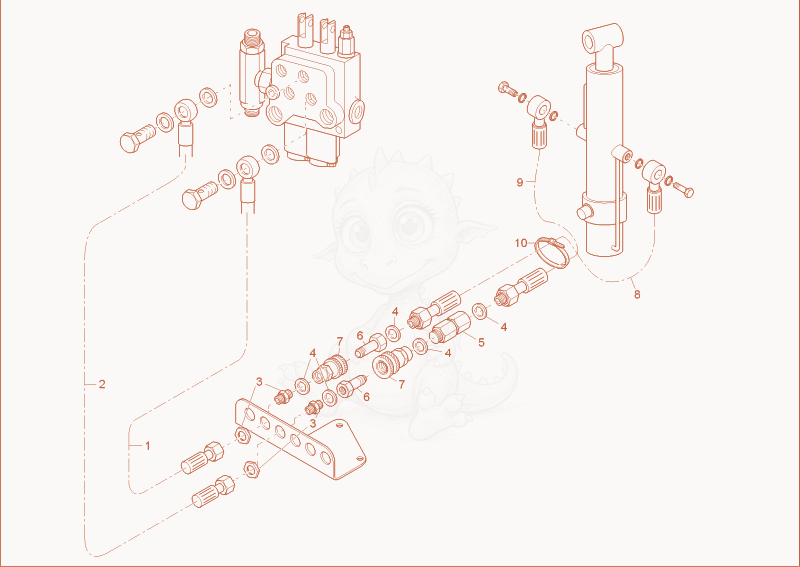

Exploded parts diagram of the TILT CYLINDER INSTALLATION of a Wacker Neuson DT15, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000270962Price
    SLHYDR 2SC 6,0RN1/40 DK1/490 L900,0 0 - 1000270962×1
  • 21000270965Price
    SLHYDR 2SC 6,0RN1/40 DK1/490 L1000 0 - 1000270965×1
  • 31000274229Price
    SCREW JOINT - 1000274229×2
  • 41000083485Price
    copper ring - 1000083485×5
  • 51000272673Price
    valve - 1000272673×1
  • 61000274243Price
    QUICK LOCK COUPLING - 1000274243×2
  • 71000274241Price
    QUICK LOCK COUPLING - 1000274241×2
  • 81000275938Price
    SLHYDR 2SC 6,0RN1/40 DK1/40 L1300 0 - 1000275938×1
  • 91000275937Price
    SLHYDR 2SC 6,0RN1/40 DK1/40 L1100 0 - 1000275937×1
  • 101000274680Price
    CLAMP - 1000274680×1
