803 blade cylinder Diagram

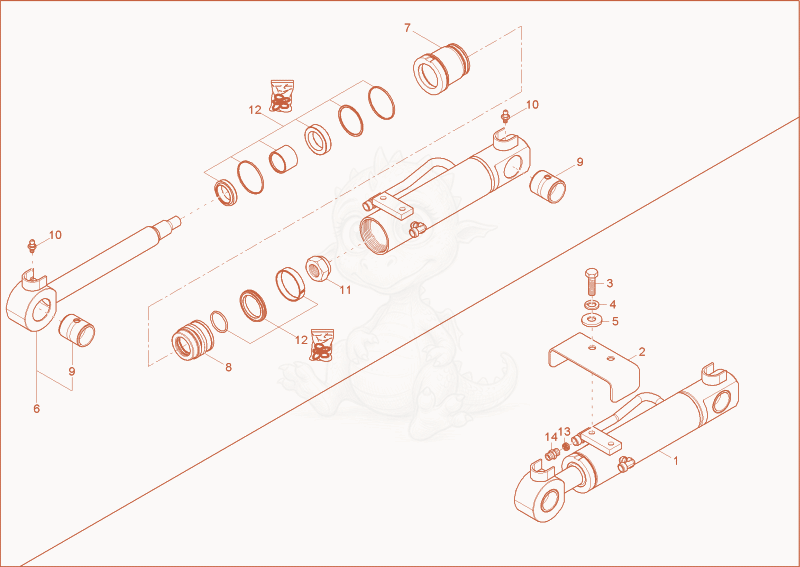

Exploded parts diagram of the blade cylinder of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000187417Not stocked
blade cylinder×1
21000154027Price
COVER - 1000154027×1
31000013009Not stocked
hex screw×2
41000015438Not stocked
lock washer×2
51000015432Price
washer 10,5 A2C DIN125 - 1000015432×2
61000159621Not stocked
piston rod×1
71000159610Price
GUIDE BUSHING - 1000159610×1
81000159609Price
PISTON - 1000159609×1
91000165322Price
STEEL BUSHING - 1000165322×2
101000072959Price
grease nipple - 1000072959×2
111000159608Price
Nut - 1000159608×1
121000276852Price
cylinder seal kit - 1000276852×1
131000160899Price
HOSE BURST PROTECTION - 1000160899×1
141000015489Not stocked
screw joint×1
