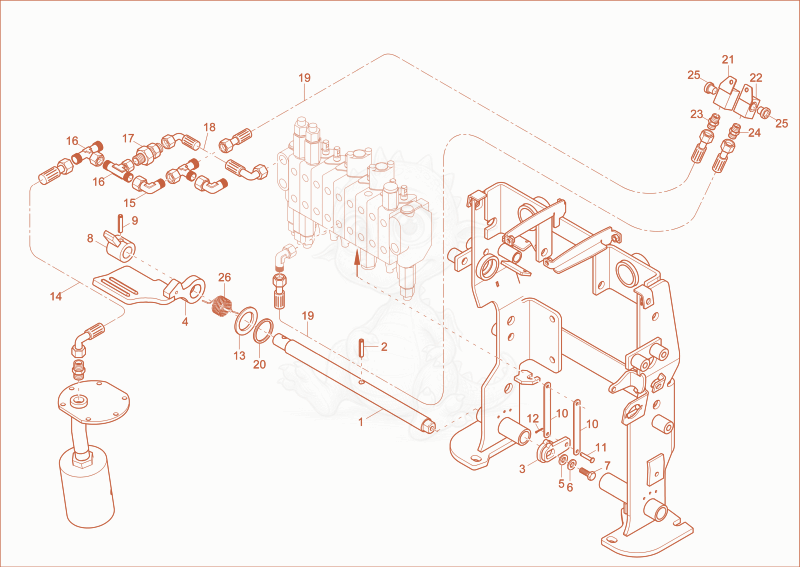

803 AUXILIARY HYDRAULICS OPERATION Diagram

Exploded parts diagram of the AUXILIARY HYDRAULICS OPERATION of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000171313Not stocked
shaft×1
21000085648Price
cotter pin - 1000085648×1
31000275058Price
LEVER - 1000275058×1
41000256128Price
pedal - 1000256128×1
51000095343Price
washer A 6,4 St A2C DIN9021 - 1000095343×1
61000015436Not stocked
lock washer×1
71000020553Not stocked
hex screw×1
81000171981Price
lever - 1000171981×1
91000082717Price
cotter pin - 1000082717×1
101000150901Price
plate - 1000150901×2
111000150905Price
PIN - 1000150905×2
121000151228Price
cotter pin - 1000151228×2
131000021001Price
WASHER - 1000021001×1
141000154318Price
SLHYDR 1SC 13 PN15 90 PN15 0 L1100 0 - 1000154318×1
151000015512Not stocked
screw joint×1
161000085108Price
ET15LOMDA3C - 1000085108×2
171000083126Price
RHD15PL 3BAR - 1000083126×1
181000156114Not stocked
Hose×1
191000265752Price
SLHYDR 2SC 10 PN10 0 PN10 0 L1750 S - 1000265752×2
201000161661Price
FITTING DISC - 1000161661×1
211000151033Price
block - 1000151033×1
221000151034Price
block - 1000151034×1
231000158256Price
GE15LR1/4EDOMDA3C - 1000158256×1
241000015490Not stocked
screw joint×1
251000020797Not stocked
screw joint×2
261000256410Not stocked
spring×1
