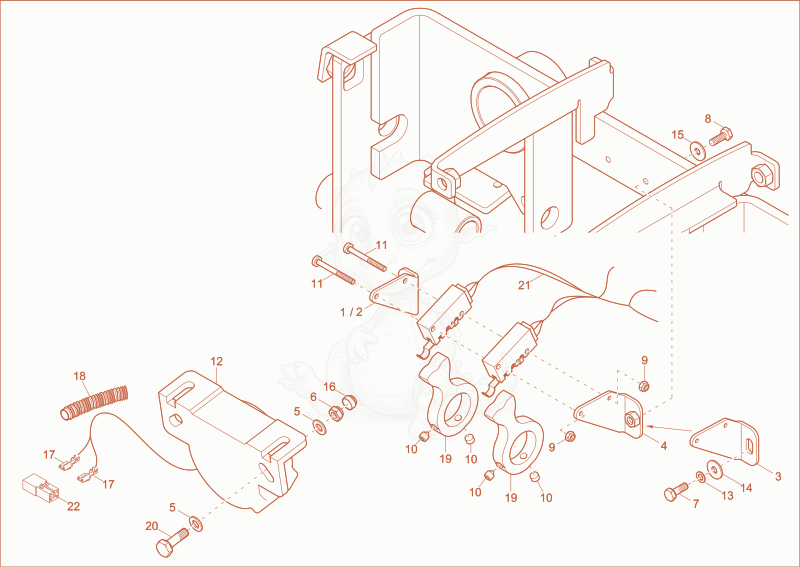

803 driving signal (Option) Diagram

Exploded parts diagram of the driving signal (Option) of a Wacker Neuson 803, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000260835Price
angle - 1000260835×1
21000325911Price
angle - 1000325911×1
31000260834Price
angle - 1000260834×1
41000325744Price
angle - 1000325744×1
51000015430Not stocked
washer×4
61000085588Price
self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
71000085375Price
hex screw - 1000085375×2
81000085558Not stocked
cut screw×2
91000222521Price
HEXAGON NUT - 1000222521×2
101000048746Not stocked
thread pin×4
111000048520Price
flat head screw - 1000048520×2
121000079025Price
reverse warner - 1000079025×1
131000082612Price
lock washer - 1000082612×2
141000119981Price
washer 4,3 DIN9021 - 1000119981×2
151000095342Price
washer X-1000092302 - 1000095342×2
161000073525Price
cover cap - 1000073525×2
171000095371Not stocked
plug sleeve×2
181000097878Price
cable hose - 1000097878×0.5
191000260832Not stocked
CRANK×2
201000018400Not stocked
hex screw×2
211000261933Price
wiring harness - 1000261933×1
221000095336Not stocked
plug sleeve housing×1
